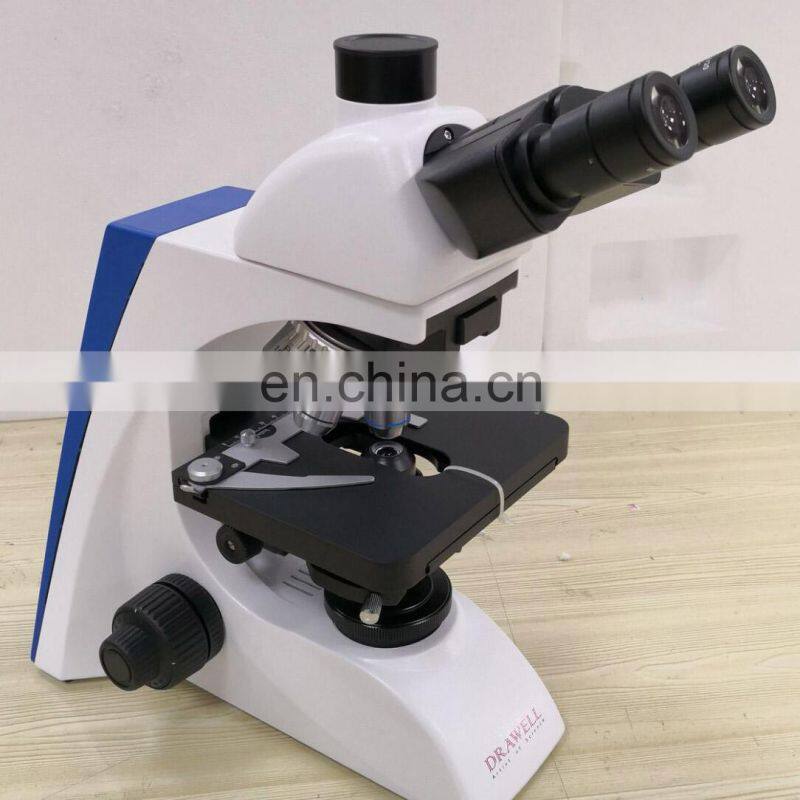

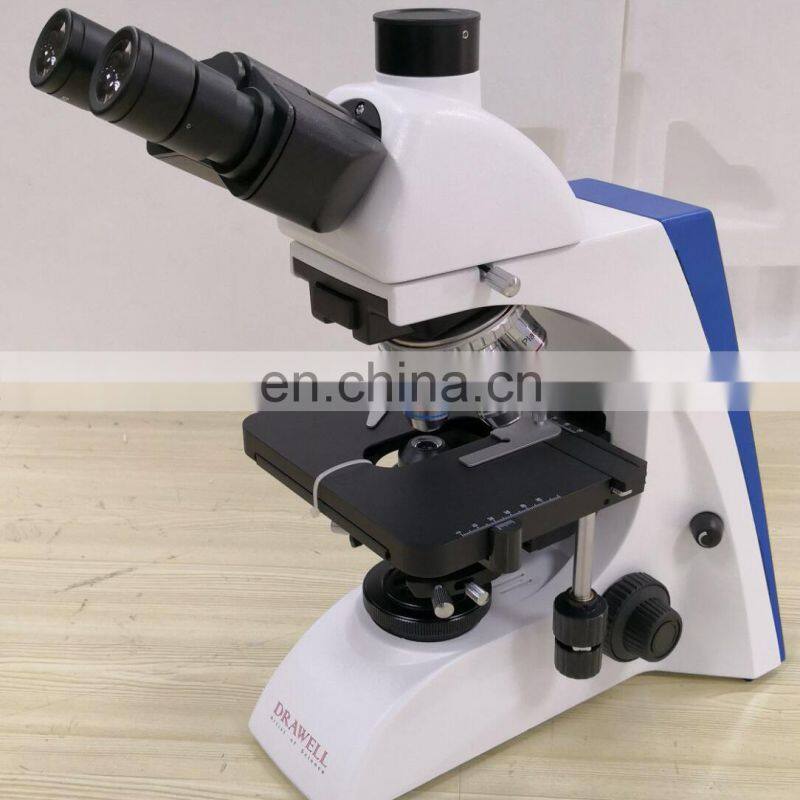

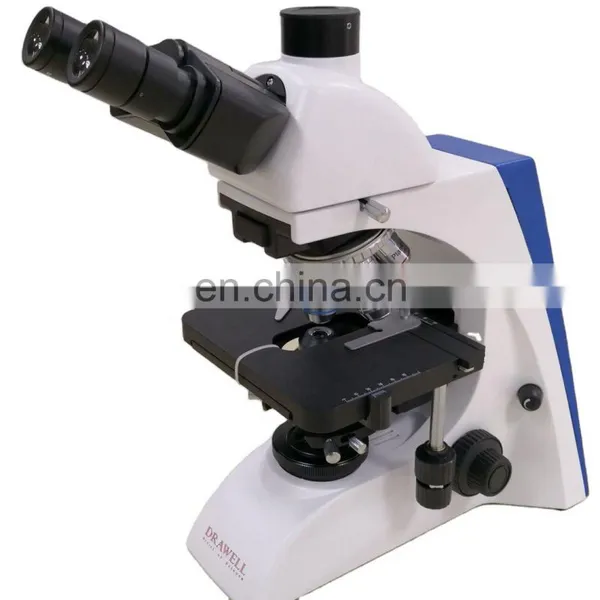

Professional Trinocular Biological Microscope For Clinic

Iems

Specification

Outfits

Eyepiece

WF10×/20mm (23.2)

..

Infinity Plan Objectives

PLAN 4×/0.10

W.D.=12.10mm

.

PLAN 10×/0.25

W.D.=4.64mm

.

PLAN 20×/0.40(S)

W.D.=2.41mm

.

PLAN 40×/0.66(S)

W.D.=0.65mm

.

PLAN 100×/1.25(S, Oil)

W.D.=0.12mm

.

PLAN 2.5×/0.07

W.D.=8.47mm

/

PLAN 60×/0.80(S)

W.D.=0.33mm

/

PLAN 100×/1.15(S, W)

W.D.=0.19mm

/

Seidentopf Binocular Head

Inclined 30°,Rotatable 360°, Interpupilary Distance: 48mm -75mm

.

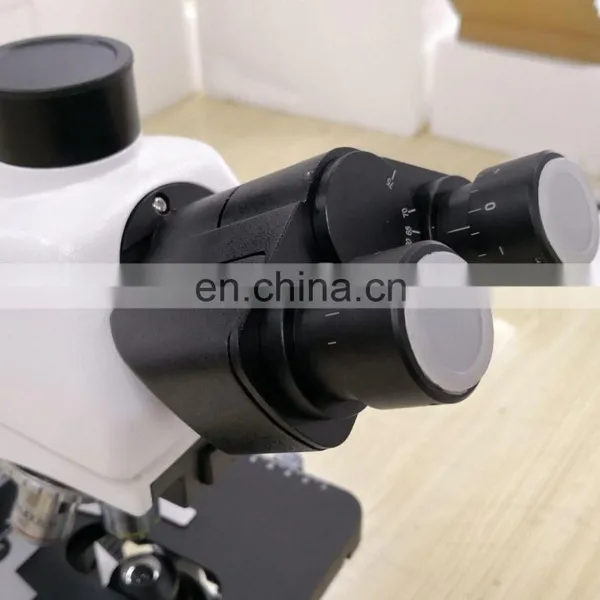

Seidentopf Trinocular Head

Inclined 30°,Rotatable 360°, Interpupilary Distance: 48mm-75mm

Light Distribution: 100: 0 / 80:20

/

Nosepiece

Quintuple

.

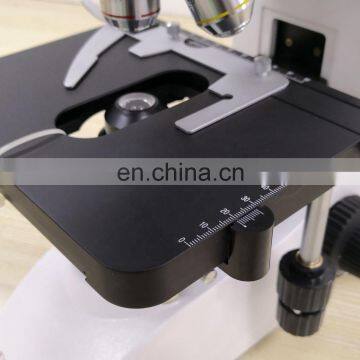

Mechanical Stage

Stage Size: 175X145mm,Travel: 78mm×55mm
Coaxial Coarse and Fine Focusing Knobs
Two Slide Holder

.

Swing Out Condenser

Abbe N.A. 1.25 with iris diaphragm.

.

Koehler Illumination

Wide voltage input: 100V~240V

Field diaphragm , center adjustable

6V/20W Halogen Lamp

.

6V/30W Halogen Lamp

3W-LED Illumination

Filter

Blue

.

Green

/

Amber

/

Grey

/

C-mount

1×C-mount ( better for digital photograph)

/

0.57× C-Mount (focus adjustable, better for digital camera)

/

Adaptor for Digital Photograph

Used for CANON/NIKON/OLYMPUS etc.

/

Fluorescence Attachment

Epi fluorescence unit ( six-hole disc media which can be fixed with Uv /V/B/G and another filters) ,100W mercury lamp.

/

Epi fluorescence unit ( six-hole disc media which can be fixed Uv /V/B/G), LED fluorescence lamp.

/

Phase Contrast Unit

Quintuple hole turret

10× /20× /40× /100× phase contrast objective

/

Independent slot

10× /20× /40× /100× phase contrast objective

/

Dark Field Unit

Dark field condenser (dry),apply to 4×- 40× objective

/

Dark field condenser (wet),apply to 100× objective

/

Polarizing Attachment

Analyzer / Polarizer

/
