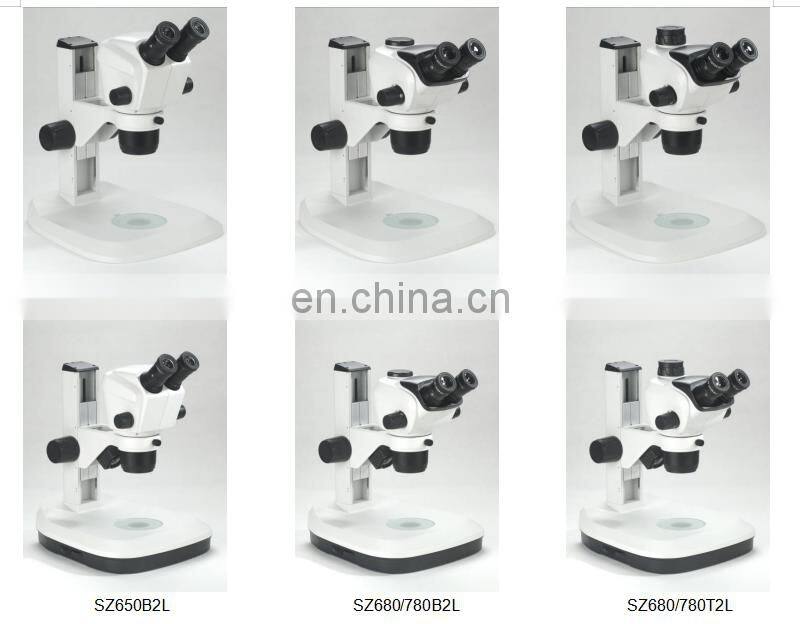

SZ Series Stereo Zoom Microscope
SZ650/ SZ680/SZ780
Outstanding Ergonomic Design
- SZ680/780 35°viewing angle, SZ650 40°viewing angle, suitable for long-term sitting observation.
- 330mm×300mm big stand, high stability , apply to all kinds of anatomy of specimen.
Top Optical & Mechanical Design
- Greenough optical system, built-in rotating shaft zoom system.
- No tilting Image in left &right light path in complete pupillary distance , No dizziness feeling after long time observing.
- (patent number: 201320807246.0)
- Stereo angle for left & right light path is 12°, stereoscopic effect, large viewing field, high zoom ration.
Excellent Technology And Quality
- High resolution, large depth of field, excellent color restoration and contrast.
- Operation comfortable(manufactured by high-precision machine, excellent assembly technology ).
- High- end material(PC resin cover, aluminium alloy ,copper alloy parts, austenite stainless steel driving parts).
International Level Appearance Design
Elegant shape , high-end and integrated appearance design, comfortable operation.
Various Accessories,Complete Function.
- Different video output connectors, built-in digital image model.
- Illumination optional: LED, halogen lamp, cold light source etc. (100V-240V wide voltage input).
- Various professional stands and operating attachments.
Main Technical Specification
|
Model |
SZ650 |
SZ680 |
SZ780 |
|
Objectives Zoom Range |
0.7X-4.5X |
0.68X-4.7X |
0.66X-5.1X |
|
Zoom Ratio |
1 : 6.5 |
1 : 6.8 |
1 : 7.8 |
|
Field Diameter (mm) |
Φ22 |
Φ23 |
Φ24 |
|
Working Distance (mm) |
110 |
110 |
110 |
|
Stereo Angle ( °) |
12 |
12 |
12 |
|
Viewing Angle ( °) |
40 |
35 |
35 |
|
Interpupillary Adjustable Distance (mm) |
50-75 |
50-75 |
50-75 |
|
Video Output Distribution |
NO |
0:100 standard |
|
|
50:50 optional |
|||
|
Guide Rail Stand Focusing Distance (mm) |
80 |
||
|
Pillar Stand Focusing Distance (mm) |
115 |
||
SZ650 Series Objective & Eyepiece Parameter List (0.7×-4.5×)
|
Additional Objective |
0.5X |
1X(built-in) |
2X |
|
|
W.D |
189mm |
110mm |
36mm |
|
|
10XEyepiece/Φ22mm |
Magnification |
3.5~22.5 |
7~45 |
14~90 |
|
Field dia. (mm) |
62.9~9.8 |
31.43~4.89 |
15.71~2.44 |
|
|
15XEyepiece/Φ16mm |
Magnification |
5.25~33.75 |
10.5~67.5 |
21~135 |
|
Field dia. (mm) |
45.71~7.11 |
22.86~3.56 |
11.43~1.78 |
|
|
20XEyepiece/Φ12mm |
Magnification |
7~45 |
14~90 |
28~180 |
|
Field dia.(mm) |
34.28~5.33 |
17.14~2.67 |
8.57~1.33 |
|
SZ680 Series Objective & Eyepiece Parameter List (0.68×-4.7×)
|
Additional Objective |
0.5X |
1X(built-in) |
2X |
|
|
W.D |
189mm |
110mm |
36mm |
|
|
10XEyepiece/Φ23mm |
Magnification |
3.4~23.5 |
6.8~47 |
13.6~94 |
|
Field dia. (mm) |
67.65~9.79 |
33.82~4.89 |
16.91~2.46 |
|
|
15XEyepiece/Φ16mm |
Magnification |
5.1~35.25 |
10.2~70.5 |
20.4~141 |
|
Field dia. (mm) |
47.06~6.81 |
23.53~3.40 |
11.76~1.70 |
|
|
20XEyepiece/Φ12mm |
Magnification |
6.8~47 |
13.6~94 |
27.2~188 |
|
Field dia.(mm) |
35.294~5.11 |
17.65~2.55 |
8.82~1.28 |
|
SZ780 Series Objective & Eyepiece Parameter List (0.66×-5.1×)
|
Additional Objective |
0.5X |
1X(built-in) |
2X |
|
|
W.D |
189mm |
110mm |
36mm |
|
|
10XEyepiece/Φ24mm |
Magnification |
3.3~25.5 |
6.6~51 |
13.2~102 |
|
Field dia. (mm) |
72.73~9.41 |
36.36~4.71 |
18.18~2.35 |
|
|
15XEyepiece/Φ16mm |
Magnification |
4.95~38.25 |
9.9~76.5 |
19.8~153 |
|
Field dia. (mm) |
48.48~6.27 |
24.24~3.14 |
12.12~1.57 |
|
|
20XEyepiece/Φ12mm |
Magnification |
6.6~51 |
13.2~102 |
26.4~204 |
