Biological Microscope Electron Microscope Price Mikroskop

Biological Microscope Electron Microscope Price Mikroskop photo-1

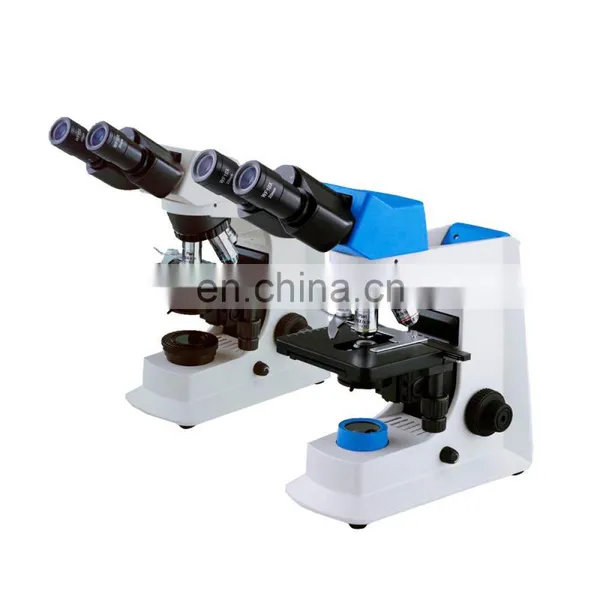

Biological Microscope Electron Microscope Price Mikroskop photo-2

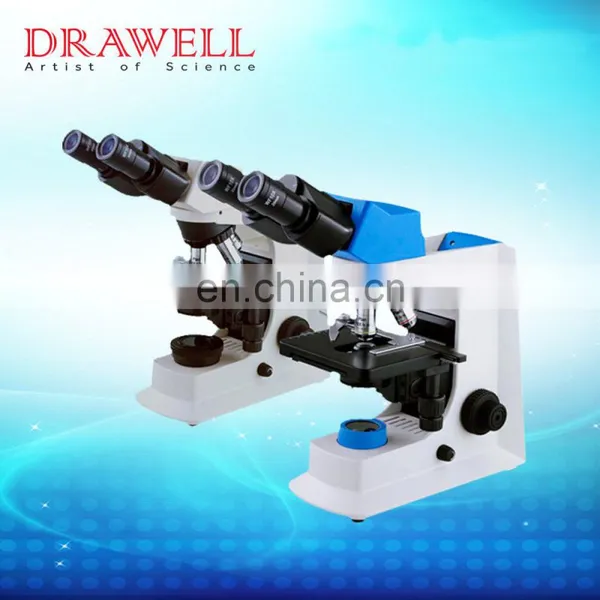

Biological Microscope Electron Microscope Price Mikroskop photo-3

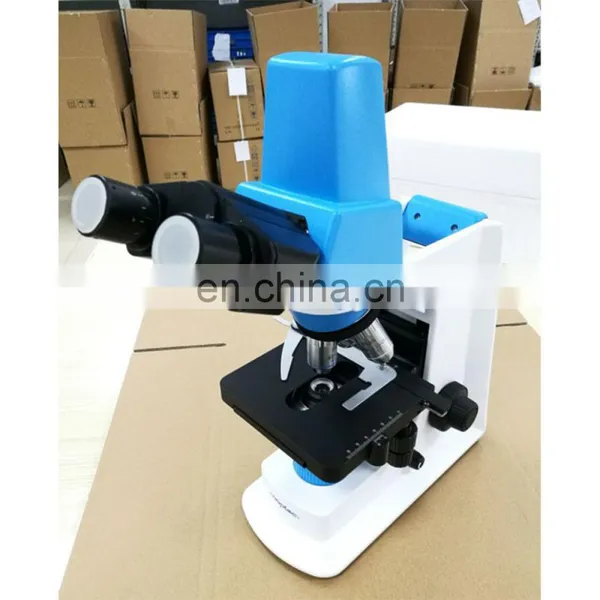

Biological Microscope Electron Microscope Price Mikroskop photo-4
Biological Microscope Electron Microscope Price Mikroskop photo-5

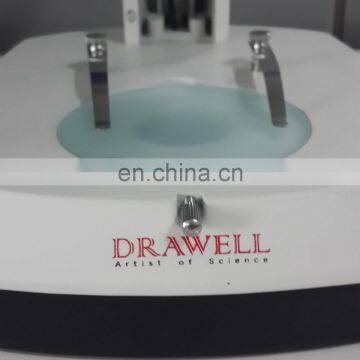

Biological Microscope Electron Microscope Price Mikroskop photo-6
Biological Microscope Electron Microscope Price Mikroskop photo-7
US$ 291 - 683 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Drawell
Place of Origin:
Shanghai, China
Model Number:
SMART Series
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Brand Name Drawell
Place of Origin Shanghai, China
Model Number SMART Series
Product Description
Instruction
1. Excellent infinity optical system, outstanding resolution and definition. 2. Original integrated stand for excellent stability. 3. Unique aspheric illumination system, provide bright and comfortable lighting. 4. Various colorful matching looking can provide lively environment and happy mood. 5. Alternative color for main body various accessories for upgrading.
Specification
Items
Specification
SMART-1
SMART-2
SMART-3
Eyepiece
WF 10X-18 mm
●●
WF 10X-20 mm
●●
●●
WF 16X-13 mm
○○
○○
○○
Reticule Eyepiece WF 10X-18 mm (0.1mm)

Reticule Eyepiece WF 10X-20 mm (0.1mm)
Achromatic
Objective
4X
10X
40X(S)
100X/1.25 (Oil) (S)
20X

60X (S)
Plan Objective
4X
10X
40X/0.65 (S)
100X/1.25 (Oil) (S)
20X

60X (S)
Infinity E-Plan
Objectives

4X

10X

40X (S)

100X (Oil) (S)

Plan 20X

Plan 60X (S)
Seidentopf Binocular Head
Inclined 30°,Rotatable 360°,
Interpupilary Distance 50-75mm
Seidentopf
Trinocular Head
Inclined 30°,Rotatable 360°,
Interpupilary Distance 50-75mm,
Light Distribution: 20:80
Nosepiece
Quadplex
Mechanical Stage
Stage Size: 145X140mm
Travel: 76mmX52mm, Scale: 0.1mm
Coaxial Coarse and Fine Focusing Knobs
Travel Range: 26mm, Scale: 2um
Two Slide Holder
Condenser
Abbe N.A. 1.25(Iris Diaphragm)
Illumination
6V/20W Halogen Lamp
6V/30W Halogen Lamp
3W-LED Illumination Systems (non-rechargeable)
0.3W-LED Illumination Systems (Rechargeable)
Field Diaphragm
Dark Field Unit
N.A.0.9 (Dry)
Polarizing Attachment
Analyzer/Polarizer
Independent phase contrast unit
10X /20X /40X /100X
Fluorescence unit
Epi Fluorescence unit (three-hole slide)
(B,G, 100W mercury lamp )
Epi Fluorescence unit (three-hole slide)
(B,G, 3W-LED lamp )
Filter
Blue
Green
Yellow
C-Mount

0.47X (Focus adjustable)

C-Mount

->
1X
Mirror
Wire winding device
Details Images
