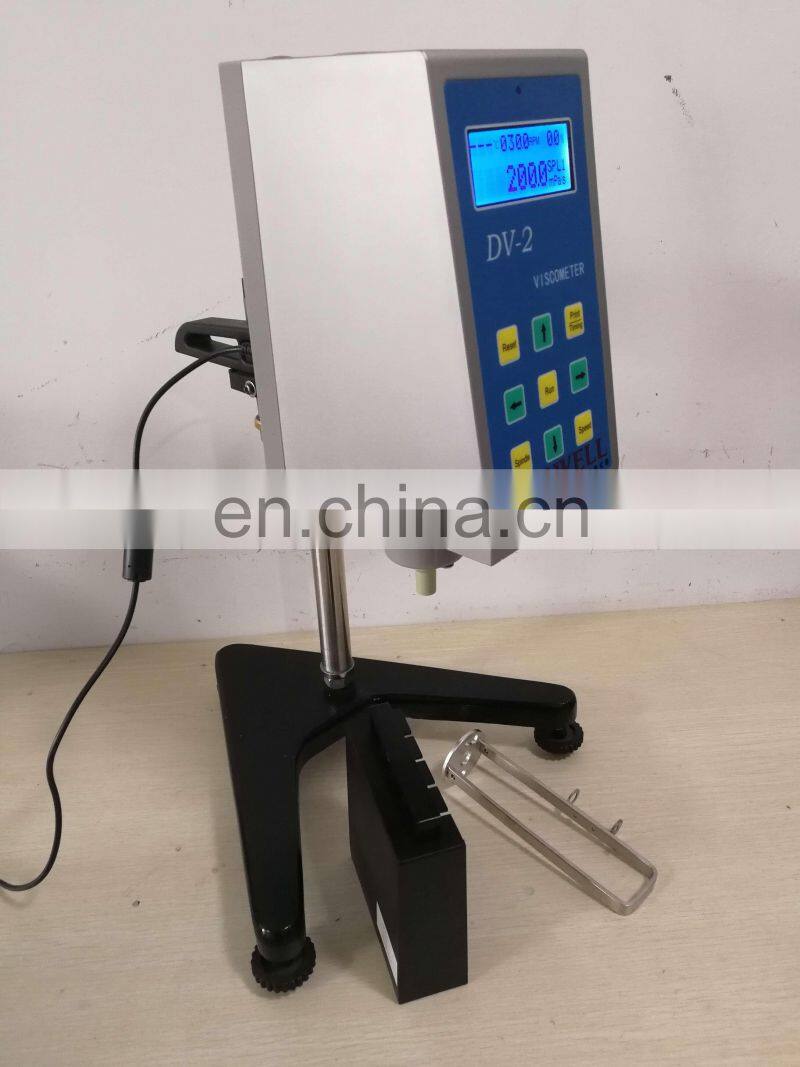

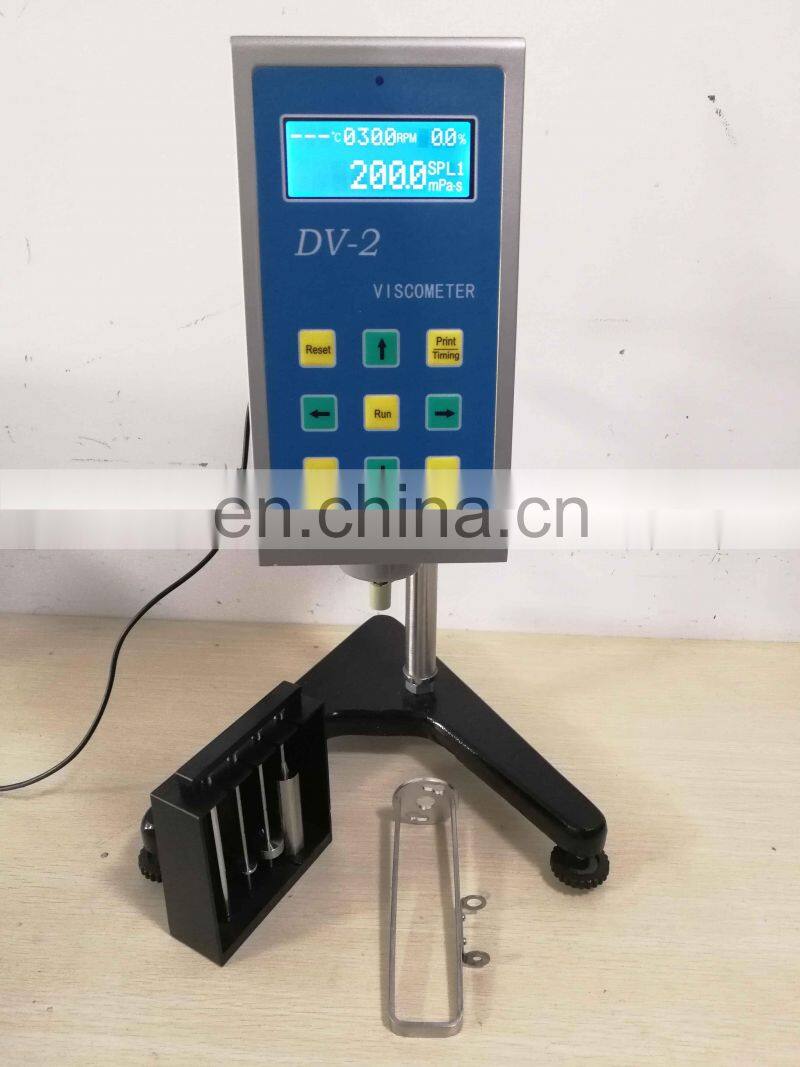

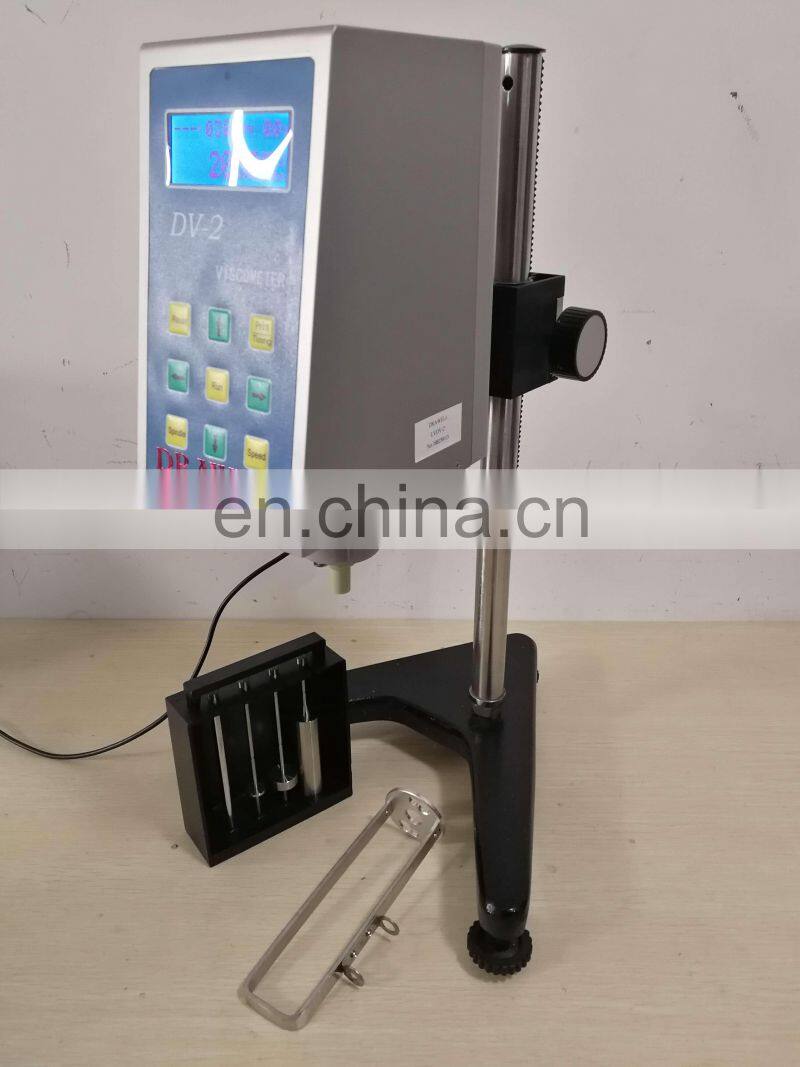

LVDV-1 Rotational Viscometer Factory Price

Measuring Range(mPa·s)

12~6,000,000

Rotating Speed

 (RPM)

0.1 ~ 99.9 (Stepless Gear)

Number of Spindles

Spindles (Code L1,L2,L3,L4) are equipped with the product

Accuracy

±1% full scale range in use

Repeatability

±0.5% full scale range in use

Readability

1.when viscosity is lower than 10.0 cp : 0.01

2.when viscosity is lower than 10000 cp : 0.1

3.when viscosity is equal or higher than 10000 cp : 1

Power

Power adapter ( input: 100-240V,50/60Hz)

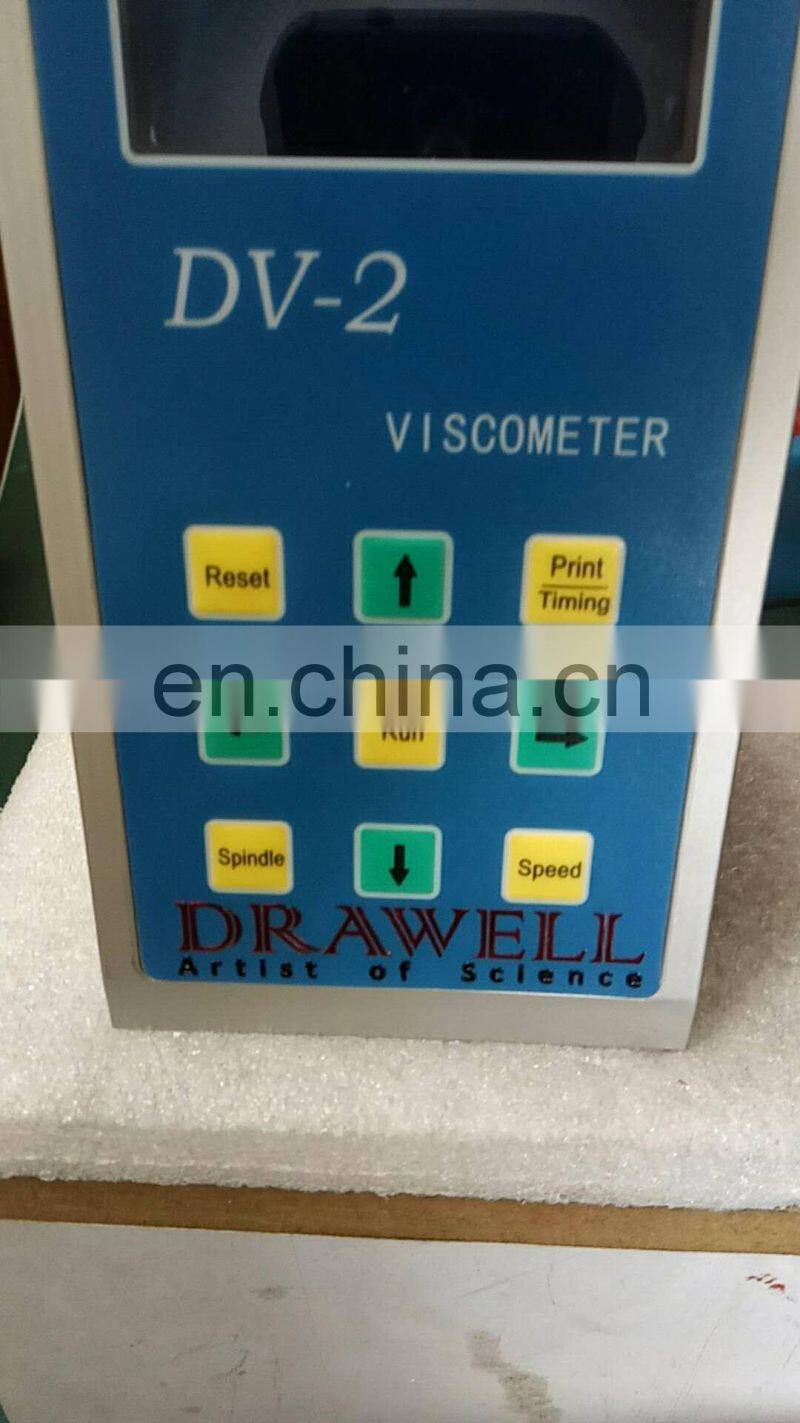

LCD screen display

The LCD screen can display the viscosity, speed, torque spindle, temperature and the maximum viscosity can be measured in the current spindle speed value.

. digital viscosity meter

1 pce

· ascending and falling rack

1 set

. standard spindle

1 set

· power adapter

1 pce

· protective frame of spindle

1 pce

· spanner

1 pce

· Seat and leveling feet

1 set

. RS232 standard output interface

1 pce

. RTD temperature probe

1 pce

·Extreme low viscometer adapter (with one spindle L0)

·Small sample adapter (with spindle 21, 27, 28 and 29 each)

·Temperature-controlled heater (with spindle 21, 27, 28 and 29 each)

·Spindle L5

·Special software that can complete the function in collecting the data automatically utomatically

·DV program control download software

·Specially used printer
