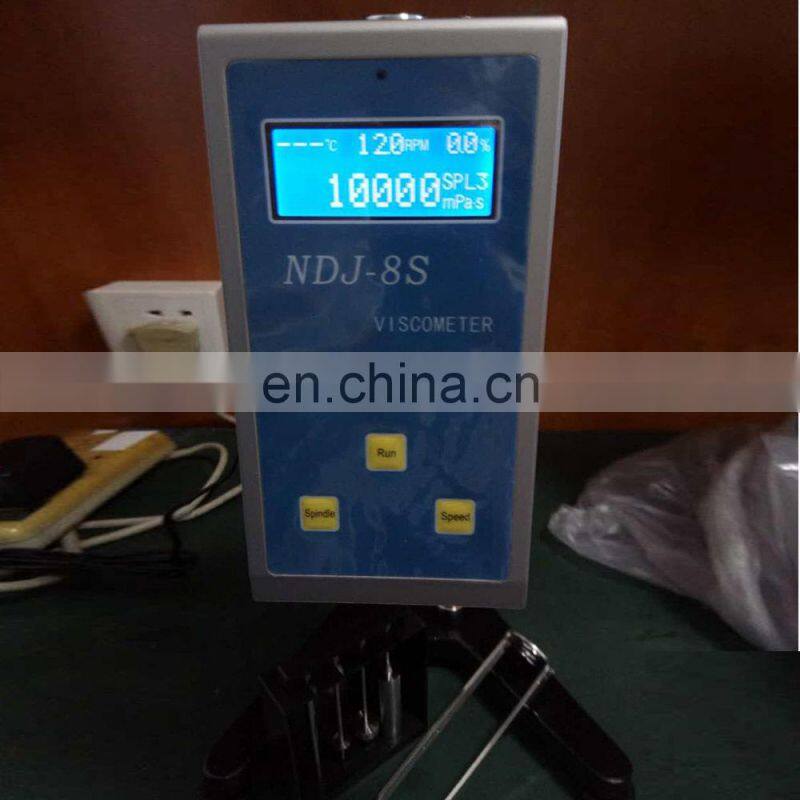

NDJ-8S DigitalViscometer

Measuring Range(mPa·s)

20 ~ 2,000,000

Rotating Speed

 (RPM)

Eight adjustable speed:0.3,0.6,1.5,3,6,12,30,60

Number of Spindles

Spindles (Code L1,L2,L3,L4) are equipped with the product

Accuracy

±1% full scale range in use

Return Capacity

±0.5% full scale range in use

Power

Power adapter ( input: 100-240V,50/60Hz)

LCD screen display

The LCD screen can display the viscosity, speed, torque,     spindle and the maximum viscosity can be measured in the   current spindle speed value.

. digital viscosity meter

1 pce

·ascending and falling rack

1 set

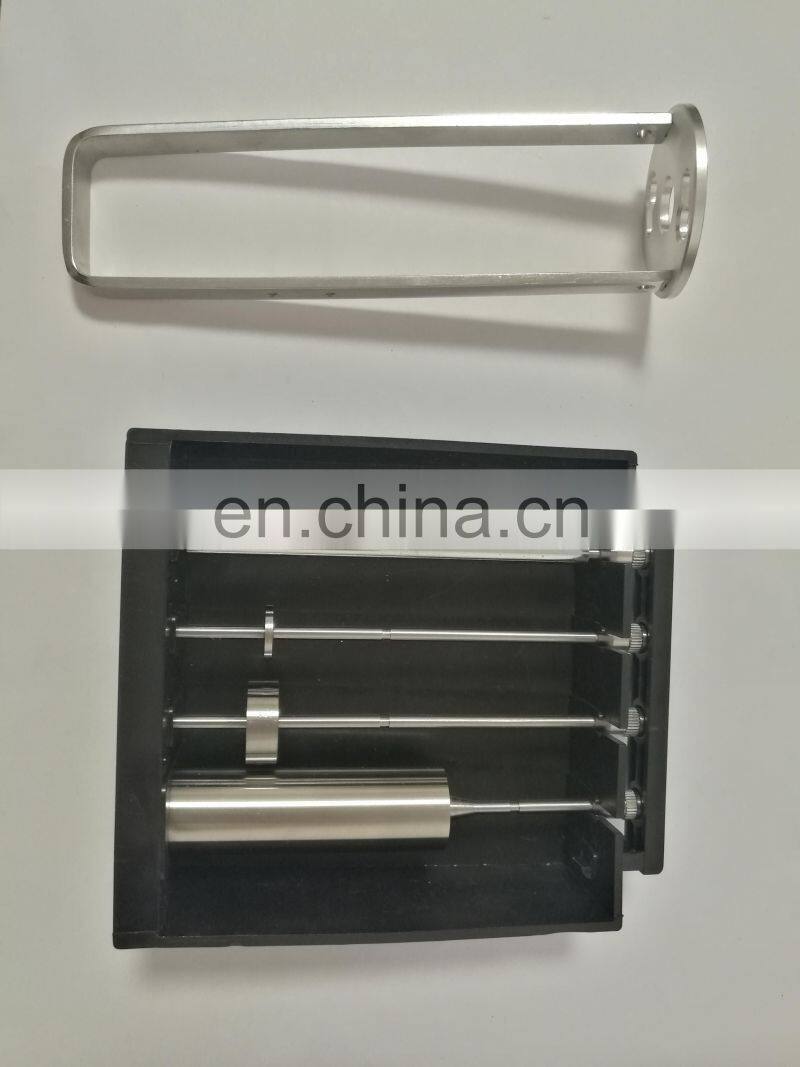

. standard spindle

1 set

·power adapter

1 pce

·protective frame of spindle

1 pce

·spanner

1 pce

·Seat and leveling feet

1 set

. RS232 standard output interface

1 pce

·Extreme low viscometer adapter (with one spindle L0)

·Small sample adapter (with spindle 21, 27, 28 and 29 each)

·Spindle L5

·Temperature-controlled heater (with spindle 21, 27, 28 and 29 each)

·RTD temperature probe

·Specially used printer
