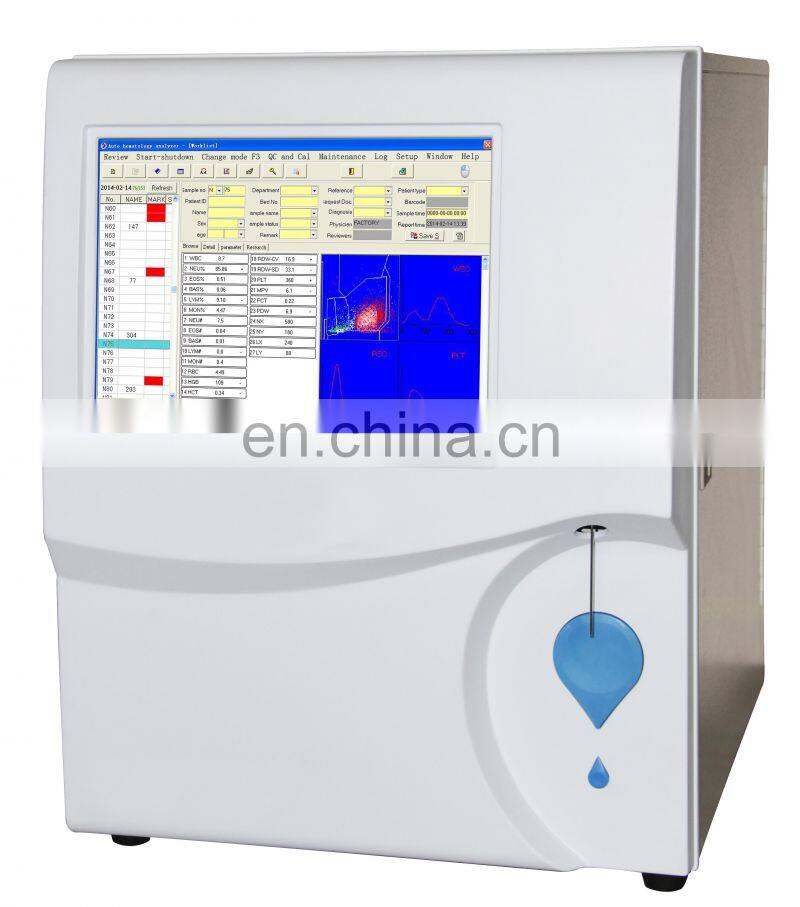

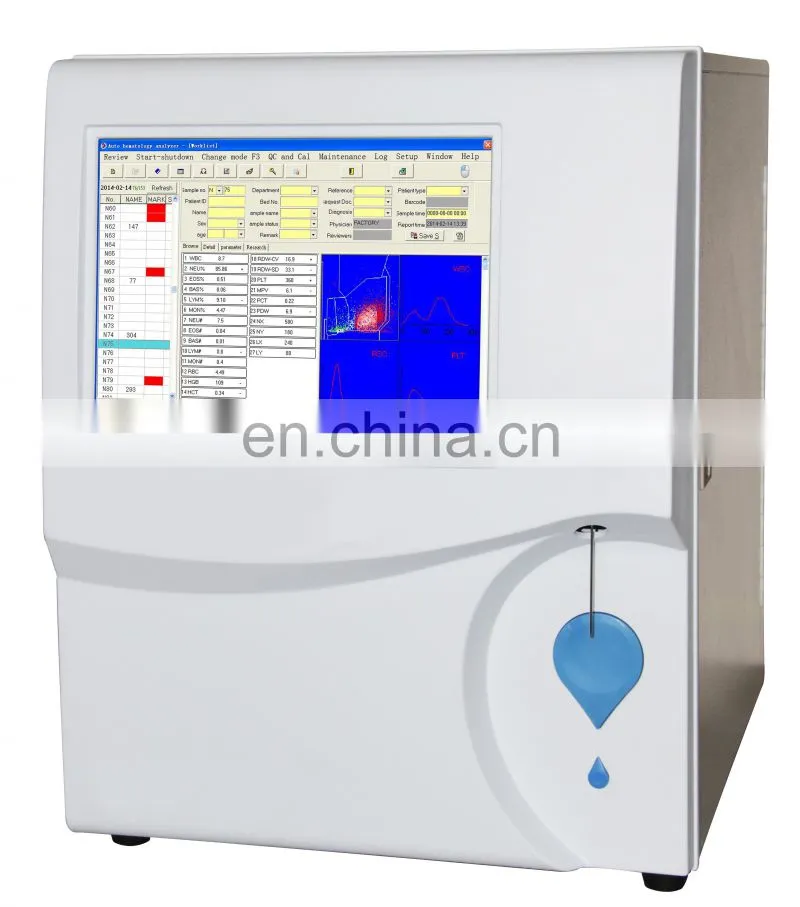

DW-TEK8510 auto human hematology analyzer price

DW-TEK8510 5-Automatic Hematology Analyzer for Clinic

A real automatic 5 diff hematology analyzer but only

l Small space:53cmx40cmx52cm

l Easy to carry: weight 28kg

Opportunity to replace 3-diff hematology analyzer

l 5 diff, 27 parameters

l 1 Scattergrams, 4 Histograms

l Up to 60 samples per hour

l Optical solid state LASER scattering

l High efficient light collector (patented)

l 12.1" TFT Touch Screen

l Original reagent, control and calibration

l Easy to operate: Friendly and Intellective Software

Automatic Hematology Analyzer

Technical Specifications

Principle

Optical solid state LASER scattering Wide angle light scatter,High efficient light collector(patented)

Electrical Impedance,Double hydrodynamic focusing

Parameters

27 parameters:WBC, LYM#, M0NO#, GRA#, LYM%, M0NO%, GRA%, RBC, HGB,

HCT, MCV, MCH, MCHC, RDW, PLT, MPV, PDW, PCT and Histogram for WBC, RBC, PLT

1 Scattergrams:WBC Interpreted Scattergram

4 Histograms:RBC,PLT,WBC,cyto

Throughput

Up to 60 samples per hour

Display

12.1Inch Touch Screen

Sample types

Whole blood,PLT only,HB only,Capillary predilution,Diluent,Control,Calibrator

Performance

Sample volume

Prediluted:  20µL

Whole blood:  10µL

Carryover

WBC<0.5%, RBC<0.5%, HGB<0.5%, PLT<1.5%

Mult-language

Chinese,English for optional and others can be customized

Data storage capacity

Up to 100,000 results including numeric and graphical information

Printout

External Laser printer/Inkjet printer, various printout formats and user-defined formats

Operating Environment

Temperature:     18-32℃     Humidity:         30%-85%

Power Requirement

AC 100-240V 50/60HZ

Dimension

Instrument:532mmx400mmx520mm

Package:  696mmx576mmx696mm

Weight

Net:28KG  Gross:32KG

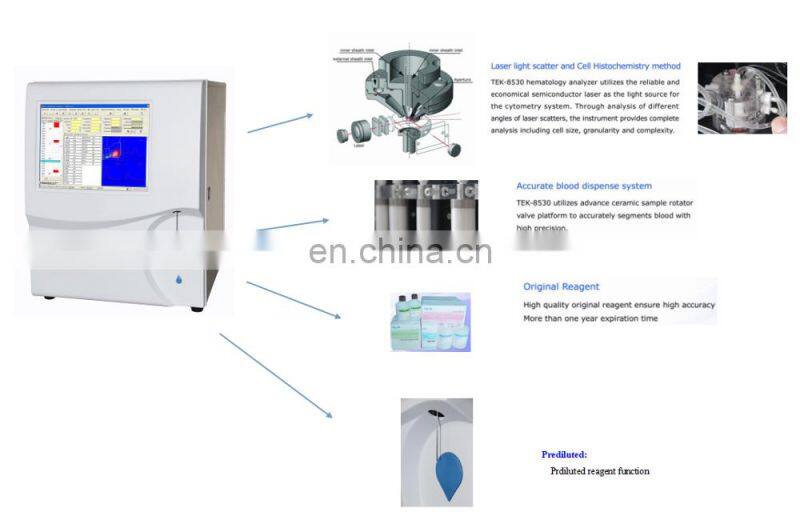

Laser Light scatter and Cell Histochemistry method

 hematology analyzer utilizes the reliable and economical semiconductor laser as the light source for the cytometry system. Through analysis of different angles of laser scatters, the instrument provides complete analysis including cell size,granularity and complexity.

Accurate blood dispense system

 utilizes advance ceramic sample rotator valve platform to accurately segments blood with high precision.

Original Reagent

Only 3 types:Sheath Hematon,Enzyme Detergent and Complex Cell Hemalyse

High quality original reagent ensure high accuracy.

More than one year expiration time.

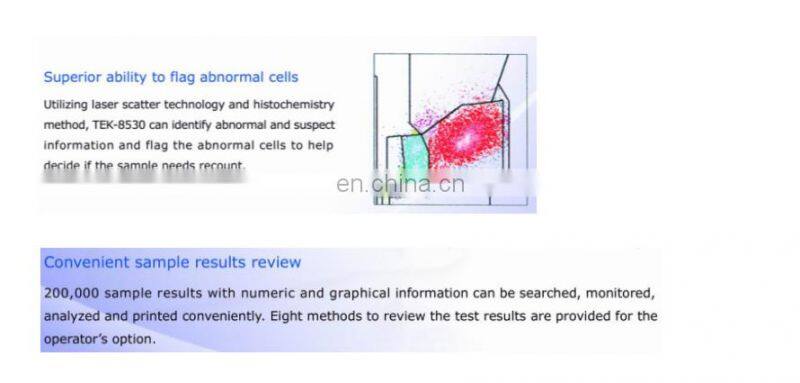

Superior ability to flag abnormal cells

Utilizing laser scatter technology and histochemistry method, TKE8510 can identify abnormal and suspect information and flag the abnormal cells to help decide if the sample needs recount.

Convenient sample results review

200,000 sample results with numeric and graphical information can be searched,monitored, analyzed and printed conveniently.Eight methods to review the test results are provided for the operator’s option.

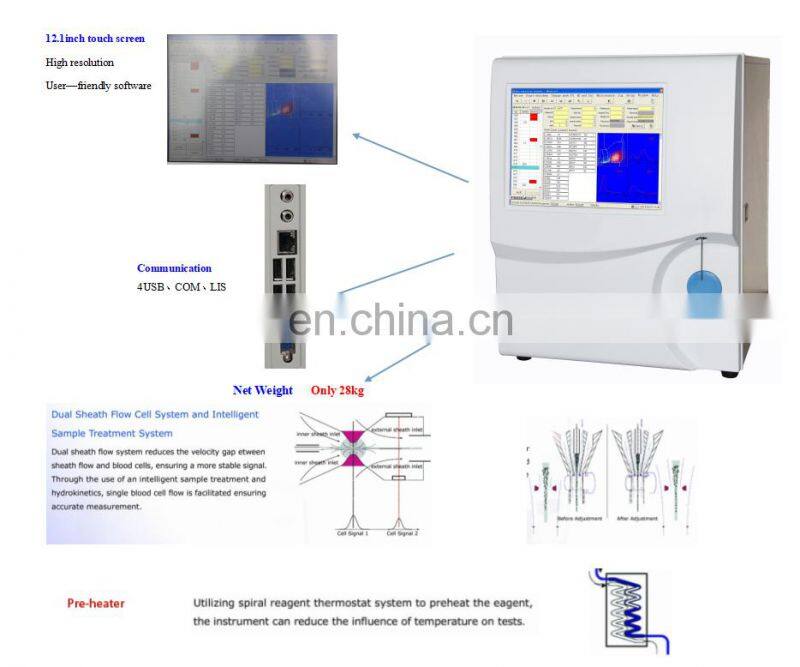

Dual Sheath Flow Cell System and Intelligent Sample Treatment System

Dual sheath flow system reduces the velocity gap between sheath flow and blood cells,ensuring a more stable signal.Through the use of an intelligent sample treatment and hydrokinetics,single blood cell flow is facilitated ensuring accurate measurement.

Pre-heater

Utilizing spiral reagent thermostat system to preheat the reagent, the instrument can reduce the influence of temperature on tests.
