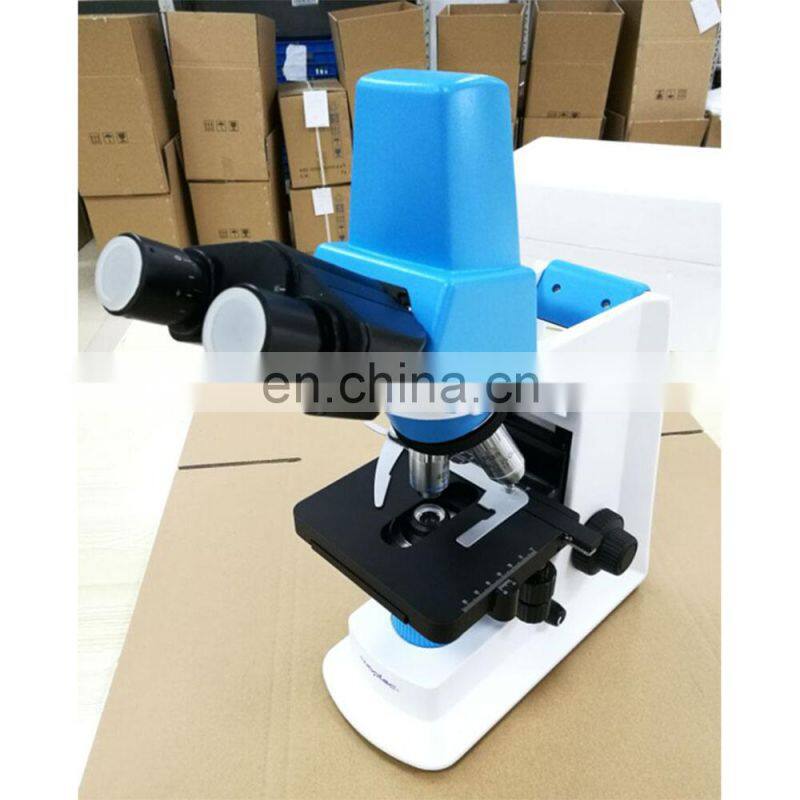

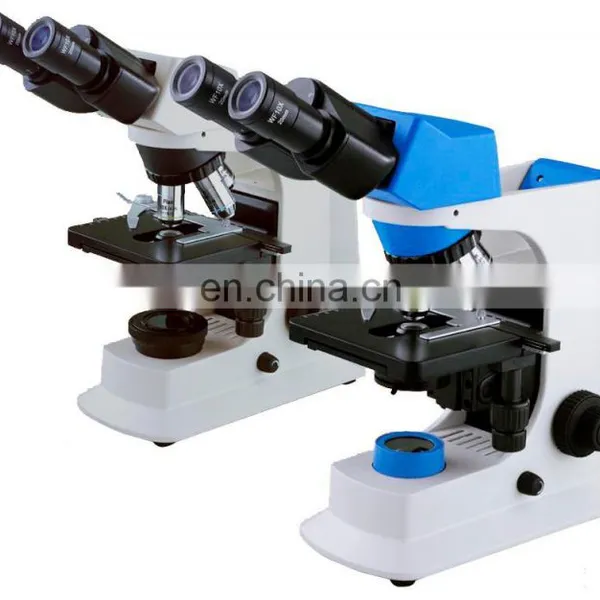

SMART Series Biological Microscope
Excellent infinity optical system, outstanding resolution and definition.
Original integrated stand for excellent stability.
Unique aspheric illumination system, provide bright and comfortable lighting.
Various colorful matching looking can provide lively environment and happy mood.
Various accessories for upgrading.
SMART Series Biological Microscope Outfits
##
|
Items |
Specification |
SMART-1 |
SMART-2 |
SMART-3 |
|
Eyepiece |
WF 10X-18 mm |
** |
|
|
|
WF 10X-20 mm |
|
** |
** |
|
|
WF 16X-13 mm# |
# | # | ||
|
Reticule Eyepiece WF 10X-18 mm (0.1mm) |
# |
# |
# |
|
|
Reticule Eyepiece WF 10X-20 mm (0.1mm) |
# |
# |
# | |
|
Achromatic Objective |
4X |
* |
|
|
|
10X |
* |
|
|
|
|
40X(S) |
* |
|
|
|
|
100X/1.25 (Oil) (S) |
* |
|
|
|
|
20X |
# |
|
|
|
|
60X (S) |
# |
|
|
|
|
Plan Objective |
4X |
|
* |
|
|
10X |
|
* |
|
|
|

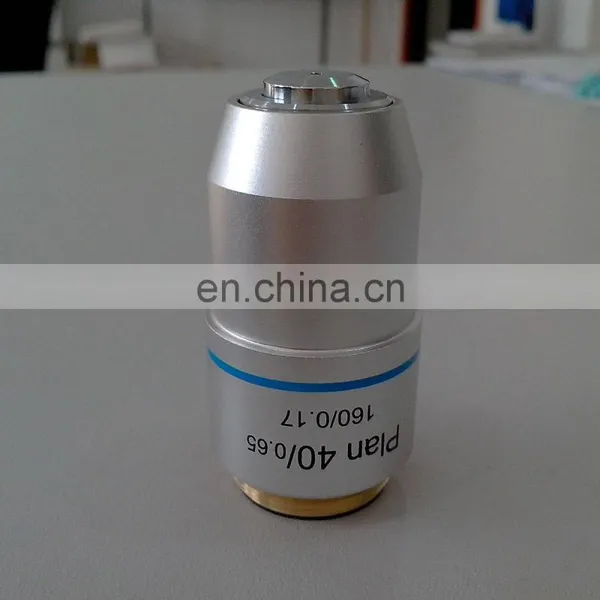

40X/0.65 (S) |
|
* |
|
|
|

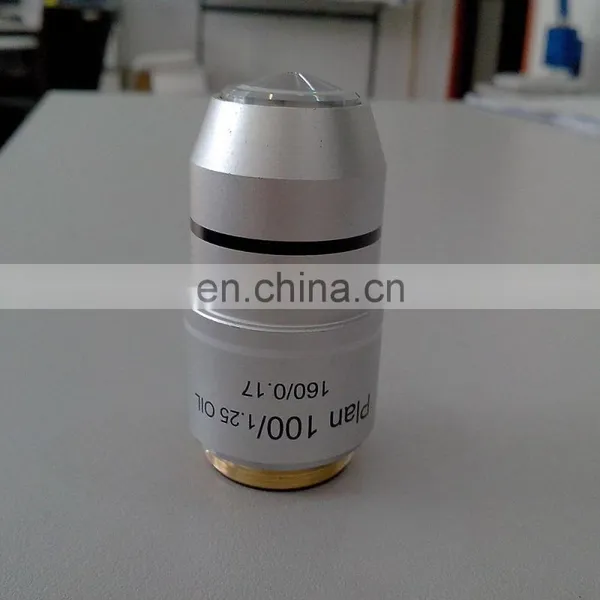

100X/1.25 (Oil) (S) |
|
* |
|
|
|
20X |
|
# |
|
|
|
60X (S) |
|
# |
|
|
|
Infinity E-Plan Objectives |
4X |
|
|
* |
|
10X |
|
|
* |
|
|
40X (S) |
|
|
* |
|
|
100X (Oil) (S) |
|
|
* |
|
|
Plan 20X |
|
|
# |
|
|
Plan 60X (S) |
|
|
# |
|
|
Seidentopf Binocular Head |
Inclined 30°,Rotatable 360°, Interpupilary Distance 50-75mm |
* |
* |
* |
|
Seidentopf Trinocular Head |
Inclined 30°,Rotatable 360°, Interpupilary Distance 50-75mm, Light Distribution: 20:80 |
# |
# |
# |
|
Nosepiece |
Quadplex |
* |
* |
* |
|
Stage Size: 145X140mm Travel: 76mmX52mm, Scale: 0.1mm Coaxial Coarse and Fine Focusing Knobs Travel Range: 26mm, Scale: 2um Two Slide Holder |
* |
* |
* |
|
|
Condenser |
Abbe N.A. 1.25(Iris Diaphragm) |
* |
* |
* |
|
Illumination |
6V/20W Halogen Lamp |
* |
* |
* |
|
6V/30W Halogen Lamp |
# |
# |
# |
|
|
3W-LED Illumination Systems (non-rechargeable) |
# |
# |
# |
|
|
0.3W-LED Illumination Systems (Rechargeable) |
# |
# |
# |
|
|
Field Diaphragm |
|
# |
# |
# |
|
Dark Field Unit |
N.A.0.9 (Dry) |
# |
# |
# |
|
Polarizing Attachment |
Analyzer/Polarizer |
# |
# |
# |
|
Independent phase contrast unit |
10X /20X /40X /100X |
|
|
# |
|
Fluorescence unit |
Epi Fluorescence unit (three-hole slide) (B,G, 100W mercury lamp ) |
# |
# |
# |
|
Epi Fluorescence unit (three-hole slide) (B,G, 3W-LED lamp ) |
# |
# |
# |
|
|
Filter |
Blue |
* |
* |
* |
|
Green |
# |
# |
# |
|
|
Yellow |
# |
# |
# |
|
|
C-Mount |
0.47X (Focus adjustable) |
# |
# |
# |
|
1X |
# |
# |
# |
|
|
Mirror |
|
# |
# |
# |
|
Wire winding device |
|
# |
# |
# |
Note: "*"In Table Is Standard outfits, "#" Is Optional Accessories.

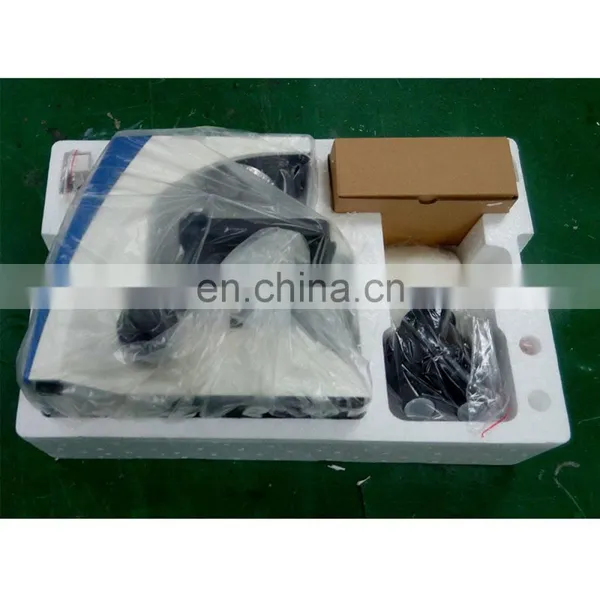

Packing Size: 420mm×275mm×450mm Gross Weight: 7.5 kgs Net Weight: 6.5 kgs
