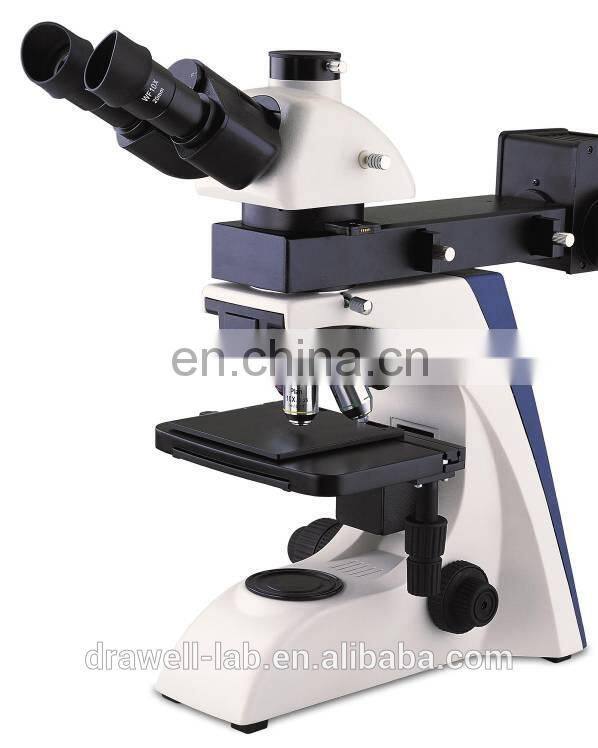

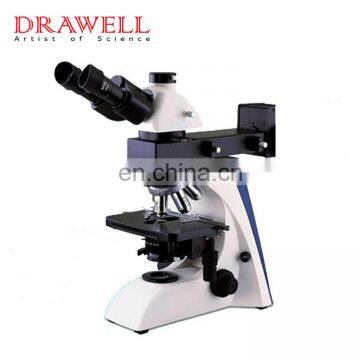

MIT500 Digital Metallurgical Microscope Trinocular

Items

Specifications

MIT300

MIT500

Eyepieces

WF10X -18mm

YY

YY

WF10X -18 mm (Reticule 0.1mm)

Y

Y

WF5X

oo

oo

WF12.5X

oo

oo

Infinity Plan Objective

(no cover glass)

5X/0.1

W.D=6.73mm

Y

Y

10X/0.25

W.D=4.19mm

Y

Y

20X/0.4(S)

W.D=2.14mm

Y

Y

40X/0.65 (S)

W.D=0.45mm

o

o

100X/1.25 (Oil) (S)

W.D=0.12mm

o

Y

Long Working Distance

Infinity Plan Objective

(no cover glass)

20X/0.4 (S)

W.D=8.35mm

o

o

40X/0.65 (S)

W.D=3.90mm

Y

Y

50X/0.7 (S)

W.D=1.95mm

o

o

80X/0.80 (S)

W.D=0.85mm

o

o

Seidentopf Binocular Head

Inclined 30°,Rotatable 360°,
Interpupilary Distance:  50-75mm

Y

Y

Seidentopf  Trinocular Head

Inclined 30°,Rotatable 360°,
Interpupilary Distance:  50-75mm
Light Distribution: 0:100

o

o

Nosepiece

Quintuple

Y

Y

Mechanical Stage For

Reflection Illumination

Stage Size: 190X140mm,Travel: 78mmX55mm
Stage Fast Lowing Unit:

Stage Up-Down moving range can be 50mm (Max.)

Y

Mechanical Stage For

Transmission Illumination

Stage Size: 190X140mm,Travel: 78mmX55mm
Coaxial Coarse and Fine Focusing Knobs

Y

Stage Plate

 Place The Sample on The Plate

Y

Y

Clip

Y

Glass Plate

o

Stage Micrometer

0.01mm

o

o

Polarizing Unit

Polarizing /Analyzer Slide

Y

Y

Condenser

Abbe N.A. 1.25(Iris Diaphragm)

Y

Illumination

12V/50W Halogen Lamp (Reflection Illumination)

Y

Y

6V/20W Halogen Lamp (Transmission Illumination)

o

Y

6V/30W Halogen Lamp(Transmission Illumination)

o

o

Field Diaphragm

Y

Filter

Blue

o

Y

Green

o

o

Yellow

o

o

C-mount

1X

o

o

0.57X (Focus Adjustable)

o

o
