Help CenterSZ Series Binocular Trinocular Stereo Zoom Microscope
Related Products
-
SMART-e320/500 Digital Optical Microscope PriceUS$ 400 - 1,000MOQ: 1 Piece -
BK-POL/POLF/POLR Digital Polarizing Microscope Binocular Polarizing MicroscopeUS$ 1,000 - 2,500MOQ: 1 Piece
-
BK-5000 Series Electronic Binocular Biological MicroscopeUS$ 450 - 750MOQ: 1 Piece
-
BK-FL2/FL4 Series Advanced Biological Fluorescence Microscope PriceUS$ 1,300 - 2,800MOQ: 1 Piece
-
BK-FL2/FL4 Series Biological Microscope Outfits Fluorescence Fluorescent Microscope With LEDUS$ 1,000 - 2,800MOQ: 1 Piece
Outstanding Ergonomic Design
² SZ680/780 35°viewing angle, SZ650 40°viewing angle, suitable for long-term sitting observation.

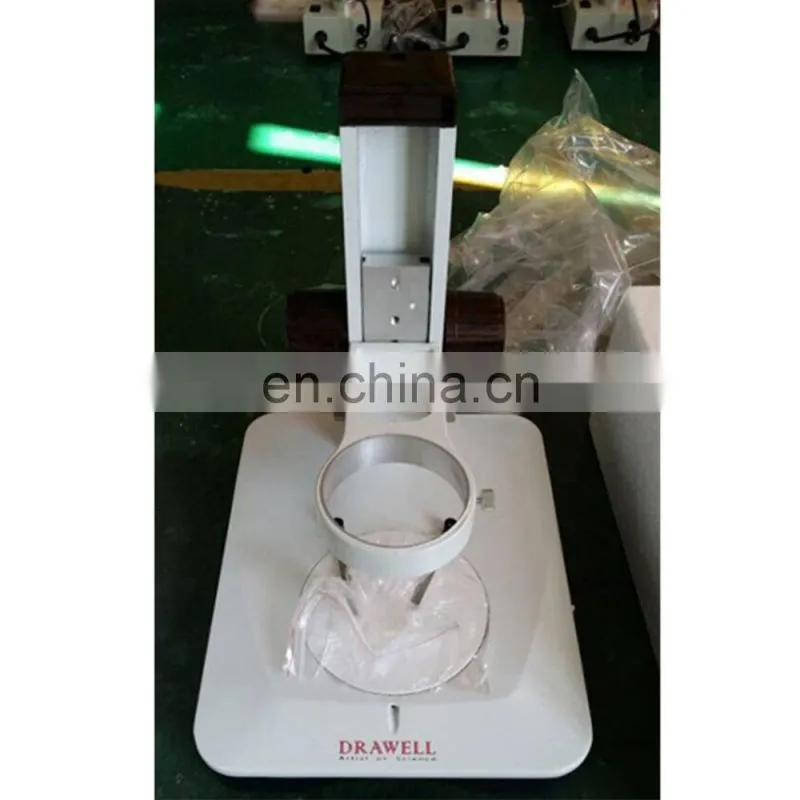

² 330mm×300mm big stand, high stability , apply to all kinds of anatomy of specimen.
Top Optical & Mechanical Design
² Greenough optical system, built-in rotating shaft zoom system.
² No tilting Image in left &right light path in complete pupillary distance , No dizziness feeling after long time observing.
² (patent number: 201320807246.0)
² Stereo angle for left & right light path is 12°, stereoscopic effect, large viewing field, high zoom ration.
Excellent Technology And Quality
² High resolution, large depth of field, excellent color restoration and contrast.
² Operation comfortable(manufactured by high-precision machine, excellent assembly technology ).
² High- end material(PC resin cover, aluminium alloy ,copper alloy parts, austenite stainless steel driving parts).
International Level Appearance Design
² Elegant shape , high-end and integrated appearance design, comfortable operation.Various Accessories,Complete Function.
² Different video output connectors, built-in digital image model.
² Illumination optional: LED, halogen lamp, cold light source etc. (100V-240V wide voltage input).
² Various professional stands and operating attachments.
Main Technical Specification
Model |
SZ650 |
SZ680 |
SZ810 |
Objectives Zoom Range |
0.7X-4.5X |
0.68X-4.7X |
0.65X-5.3X |
Zoom Ratio |
1 : 6.5 |
1 : 6.8 |
1 : 8.1 |
Field Diameter (mm) |
Φ22 |
Φ23 |
Φ24 |
Working Distance (mm) |
110 |
110 |
110 |
Stereo Angle ( °) |
12 |
12 |
12 |
Viewing Angle ( °) |
40 |
35 |
35 |
Interpupillary Adjustable Distance (mm) |
50-75 |
50-75 |
50-75 |
Video Output Distribution |
NO |
100%(0:100 standard) |
|
50:50 optional | |||
Guide Rail Stand Focusing Distance (mm) |
80 |
||
Pillar Stand Focusing Distance (mm) |
115 |
||
SZ650 Series Objective & Eyepiece Parameter List (0.7×-4.5×)
Additional Objective |
0.5X |
1X(built-in) |
2X |
|
W.D |
189mm |
110mm |
36mm |
|
10XEyepiece/Φ22mm |
Magnification |
3.5~22.5 |
7~45 |
14~90 |
Field dia. (mm) |
62.9~9.8 |
31.43~4.89 |
15.71~2.44 |
|
15XEyepiece/Φ16mm |
Magnification |
5.25~33.75 |
10.5~67.5 |
21~135 |
Field dia. (mm) |
45.71~7.11 |
22.86~3.56 |
11.43~1.78 |
|
20XEyepiece/Φ12mm |
Magnification |
7~45 |
14~90 |
28~180 |
Field dia.(mm) |
34.28~5.33 |
17.14~2.67 |
8.57~1.33 |
|
SZ680 Series Objective & Eyepiece Parameter List (0.68×-4.7×)
Additional Objective |
0.5X |
1X(built-in) |
2X |
|
W.D |
189mm |
110mm |
36mm |
|
10XEyepiece/Φ23mm |
Magnification |
3.4~23.5 |
6.8~47 |
13.6~94 |
Field dia. (mm) |
67.65~9.79 |
33.82~4.89 |
16.91~2.46 |
|
15XEyepiece/Φ16mm |
Magnification |
5.1~35.25 |
10.2~70.5 |
20.4~141 |
Field dia. (mm) |
47.06~6.81 |
23.53~3.40 |
11.76~1.70 |
|
20XEyepiece/Φ12mm |
Magnification |
6.8~47 |
13.6~94 |
27.2~188 |
Field dia.(mm) |
35.294~5.11 |
17.65~2.55 |
8.82~1.28 |
|
SZ810 Series Objective & Eyepiece Parameter List (0.65×-5.3×)
Additional Objective |
0.5X |
1X(built-in) |
2X |
|
W.D |
189mm |
110mm |
36mm |
|
10XEyepiece/Φ24mm |
Magnification |
3.25~26.5 |
6.5~53 |
13~106 |
Field dia. (mm) |
73.84~9.06 |
36.92~4.53 |
18.46~2.26 |
|
15XEyepiece/Φ16mm |
Magnification |
4.88~39.75 |
9.75~79.5 |
19.5~159 |
Field dia. (mm) |
49.24~6.04 |
24.62~3.02 |
12.31~1.51 |
|
20XEyepiece/Φ12mm |
Magnification |
6.5~53 |
13~106 |
26~212 |
Field dia. (mm) |
36.92~4.53 |
18.46~2.26 |
9.23~1.13 |
|
SZ650/680/810 Series Zoom Stereo Microscope Outfit
Items |
SZ650BP |
SZ650B2L |
SZ680BP |
SZ680B2L |
SZ810BP |
SZ810B2L |
|
Main Body |
Binocular |
Y |
Y |
Y |
Y |
Y |
Y |
Trinocular |
|
|
O |
O |
O |
O |
|
10XEyepiece/Φ22mm |
YY |
YY |
|
|
|
|
|
10XEyepiece/Φ23mm |
|
|
YY |
YY |
|
|
|
10XEyepiece/Φ24mm |
|
|
|
|
YY |
YY |
|
15XEyepiece/Φ16 mm |
OO |
OO |
OO |
OO |
OO |
OO |
|
20XEyepiece/Φ12mm |
OO |
OO |
OO |
OO |
OO |
OO |
|
0.5X/2X Objective |
O |
O |
O |
O |
O |
O |
|
Focusing unit |
Y |
Y |
Y |
Y |
Y |
Y |
|
No light |
Y |
|
Y |
|
Y |
|
|
Reflecting 3W LED |
|
Y |
|
Y |
|
Y |
|
Transmitting 3W LED |
|
Y |
|
Y |
|
Y |
|
Black & white Plate |
Y |
Y |
Y |
Y |
Y |
Y |
|
Glass Plate |
|
Y |
|
Y |
|
Y |
|
Arm stand |
Y |
Y |
Y |
Y |
Y |
Y |
|
Pillar stand |
O |
O |
O |
O |
O |
O |
|
Focusing Arm stand |
O |
O |
O |
O |
O |
O |
|
Base (330×300mm) |
Y |
Y |
Y |
Y |
Y |
Y |
|
C-mount 0.5X,0.7X,1X |
|
|
O |
O |
O |
O |
|
Note:"Y" In Table Is Standard Outfits, "O" Is Optional Accessories.
