Help CenterBK-POL/POLF/POLR Digital Polarizing Microscope Binocular Polarizing Microscope
Related Products
-
BK-5000 Series Electronic Binocular Biological MicroscopeUS$ 450 - 750MOQ: 1 Piece -
BK-FL2/FL4 Series Advanced Biological Fluorescence Microscope PriceUS$ 1,300 - 2,800MOQ: 1 Piece
-
BK-FL2/FL4 Series Biological Microscope Outfits Fluorescence Fluorescent Microscope With LEDUS$ 1,000 - 2,800MOQ: 1 Piece
-
BK-FL2 FL4 Series Fluorescence Biological Microscope PriceUS$ 799 - 2,799MOQ: 1 Piece
-
BK-FL2/FL4 Series Cheap Reflected-Light Fluorescence Microscope MagnificationUS$ 800 - 2,800MOQ: 1 Piece

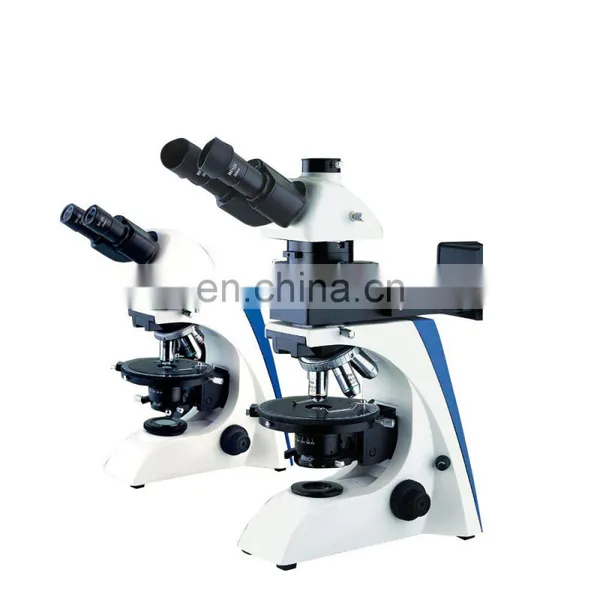

BK-POL Polarizing Microscope
BK-POL/POLF/POLR Polarizing Microscope Outfits
Items |
Specification |
BK-POL |
BK-POLF |
BK-POLR |
Eyepiece |
WF10×-18mm |
|
Y |
Y |
WF10×-18 mm (Reticule 0.1mm) |
|
Y |
Y |
|
WF10×-20 mm |
Y |
|
|
|
WF10×-20 mm (Reticule 0.1mm) |
Y |
|
|
|
Non-stress Infinity Plan Objective |
4×/0.10 |
Y |
Y |
Y |
10×/0.25 |
Y |
Y |
Y |
|
20×/0.40(S) |
Y |
Y |
Y |
|
40×/0.65(S) (0.17mm cover glass) |
Y |
|
Y |
|
40×/0.65S) (no cover glass) |
|
Y |
o |
|
60×/0.80 (S) |
o |
o |
Y |
|
|
LWD Infinity Plan Objective (no cover glass) |
20×/0.40 (S) W.D=8.35mm |
|
o |
o |
40×/0.65 (S) W.D=3.90mm |
|
o |
o |
|
50×/0.70 (S) W.D=1.95mm |
|
o |
o |
|
80×/0.80 (S) W.D=0.85mm |
|
o |
o |
|
Seidentopf Binocular Head |
Inclined 30°, Rotatable 360°, Interpupilary Distance: 50-75mm. |
Y |
Y |
Y |
Seidentopf Trinocular Head |
Inclined 30°, Rotatable 360°, Interpupilary Distance: 50-75mm. Light Distribution: 0:100 |
o |
o |
o |

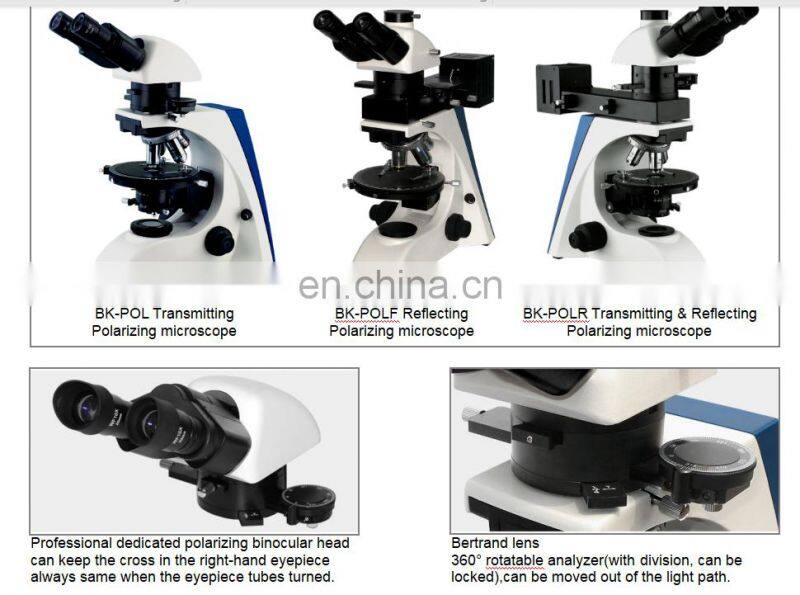

Professional dedicated polarizing binocular head |
It can keep the cross in the right-hand eyepiece always same when the eyepiece tubes turned. |
o |
o |
o |
Professional dedicated polarizing trinocular head |
o |
o |
o |
|
Nosepiece |
Quintuple |
Y |
Y |
Y |
Analyzer Unit with Scale |
Rotatable 360°(Module Type, Can Be Locked) |
Y |
Y |
Y |
Bertrand Lens |
Built In, Center Adjustable |
Y |
Y |
Y |
Λ Slip |
First Class Red |
Y |
Y |
Y |
1/4λ Slip |
|
Y |
Y |
Y |
Quartz Wedge |
(Ⅰ- Class) |
Y |
Y |
Y |

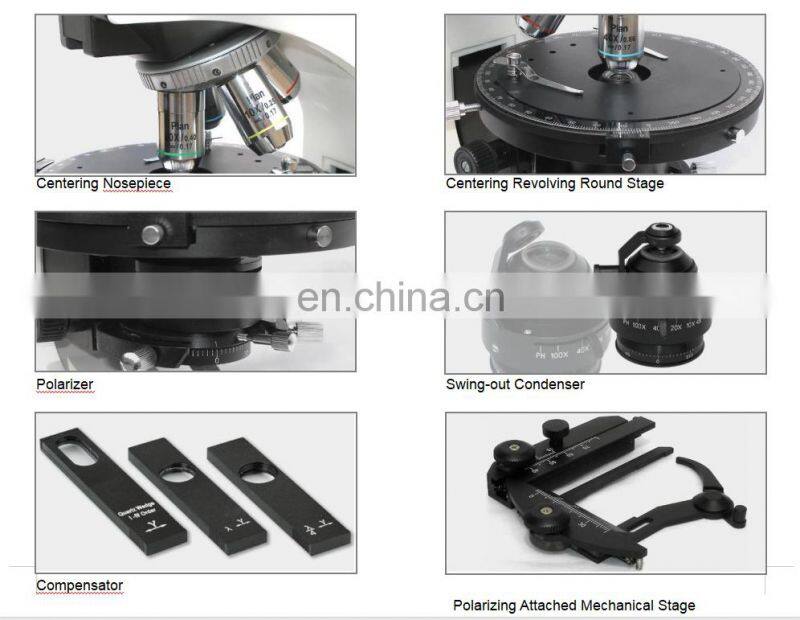

Revolving Round Stage |
Rotatable 360°, Center Adjustable, Division 1°, Vernier Division 6’ |
Y |
Y |
Y |
Polarizing Attached Mechanical Stage |
|
o |
o |
o |
Swing-out Condenser |
N.A.0.9/0.13 swing out achromatic condenser |
Y |
|
Y |
Polarizing Unit with Scale |
Rotatable 360°,Can Be Locked |
Y |
|
Y |
Koehler Illumination |
6V/20W Halogen Lamp(6V/30W is Optional) |
Y |
|
Y |
Filter |
Blue, |
Y |
Y |
Y |
Amber |
o |
o |
o |
|
Green |
o |
o |
o |
|
Neutral |
o |
o |
o |
|
Reflecting Polarizing Unit |
Halogen Lamp House 12V/50W |
|
Y |
Y |
Power House |
|
Y |
Y |
|
Polarizer Choosing Slide |
|
Y |
Y |
|
C-mount |
1× |
o |
o |
o |
0.57× (Focus adjustable) |
o |
o |
o |
Note: "Y"In Table Is Standard outfits, "o" Is Optional Accessories.
Packaging parameters |
Packing Size |
Gross Weight |
Net Weight |
BK-POL |
565mm×310mm×410mm |
12.5 kgs |
10 kgs |
BK-POLR |
750mm×360mm×450mm |
16 kgs |
12.5 kgs |
BK-POLF |
750mm×360mm×450mm |
15 kgs |
11.5 kgs |
