Home > Instruments & Meters > Analysis Instrument > Gas Analyzer > DW-GC1290 Gas Chromatograph Gas Chromatograph and Price ( LCD Touch Screen )

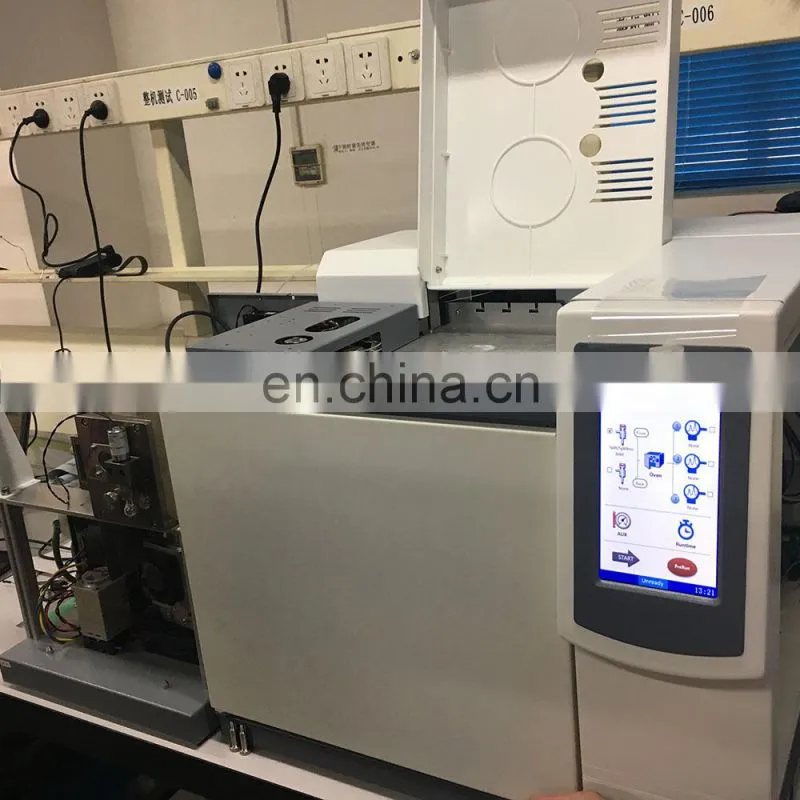

DW-GC1290 Gas Chromatograph Gas Chromatograph and Price ( LCD Touch Screen )
US$ 10,000 - 30,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Drawell
Place of Origin:
Shanghai, China
Model Number:
DW-GC1290
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DW-LC1620A HPLC High Performance Liquid Chromatography Machine PriceUS$ 4,000 - 10,000MOQ: 1 Piece -
LC-MS 1000 Cheap Liquid Chromatograph Mass Spectrometer ( lc ms ) for LaboratoryUS$ 90,000 - 140,000MOQ: 1 Piece
-
DW-CIC-D120 Ion Chromatograph System PriceUS$ 8,000 - 20,000MOQ: 1 Piece
-
High Quality Mass Spectrometry Gas Chromatograph GC MS With EFC GC-MS-IIUS$ 30,000 - 60,000MOQ: 1 Piece
-
Drawell GC-MS-II GCMS Machine Gcms Gas ChromatographUS$ 48,700 - 48,700MOQ: 1 Piece
Brand Name
Drawell
Place of Origin
Shanghai, China
Model Number
DW-GC1290
| Gas Chromatography | |||
| Picture Specification |
|
||
| Model# | DW-GC1290 | ||
| Description | EPC(electronic pneumatic control) 7 inch touch screen display | ||
| Sample Introduction System | sample injector and evaporation chamber | ||
| Column Oven | Temperature range | Ambient temperature +7℃ ~ 420℃ (in 1℃ increment) | |
| Temperature accuracy | ± 0.02℃ | ||
| Cooling time | 350℃~100℃≤3min, 400℃~50℃ in 8-10 min at 25℃ ambient | ||
| Programmed temperature setting | 0.1℃~80℃/min (in 1℃ increment) | ||
| Program ramps | 20 ramps in total (99 ramps available with control workstation) | ||
| Size (L*W*H) | 284*280*241mm(inside) | 340*345*281mm(outside) | |
| Flame Ionization Detector (FID) | Detection limit | ≤8×10-12g/s (n-hexadecane) | |
| Drift | ≤1.5×10-13A/h | ||
| Noise | ≤3×10-14A | ||
| Linearity range | ≥106 | ||
| Flame Photometric Detector (FPD) | Detection limit | ≤8×10 13g/s(P) ; ≤8×10 11g/s(S) | |
| Drift | ≤2×10 11A/30min | ||
| Baseline noise | ≤5×10 12A | ||
| Nitrogen-Phosphorus Detector (NPD) | Detection limit | ≤5×10-12g/s(N) (Azobenzene) ≤5×10-13g/s(P) (Malathion) | |
| Features: | |||
| *Control system: designed for monitoring and controlling the instrument via the computer. *Column Compartment/oven with superior thermal performance, multistage (20 ramps) programmed temperature control function. (supported by “control system”) *Advanced built-in data acquisition system , supporting real time instrument status monitoring, detection signal acquisition and PC control *Column oven supports quick heat-up and rapid cool-down with automated back-door opening. *Flexible sample introduction system: 2 sample injectors could be installed and operated simultaneously with independent temperature control. *High sensibility and stability detector. *2 independent and analog signals output. *M6 software, compatible with GLP/FDA-21 CFR Part11 requirements and regulations. (electronic records and signatures) | |||

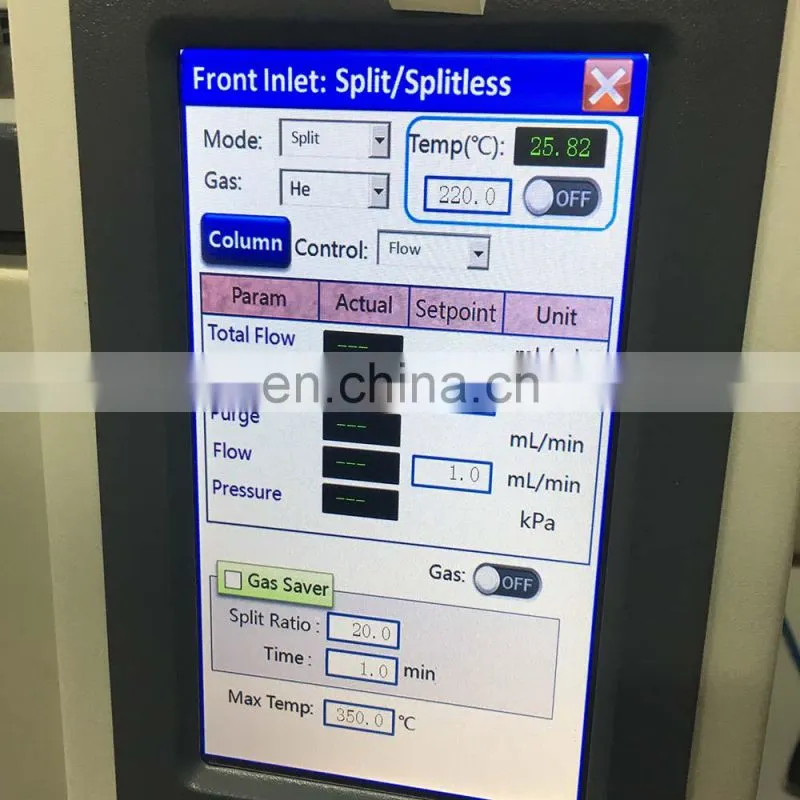

| Electronic pneumatics control system | |||
|
Flow rate: 200ml/min (N2), 1000ml/min (He) Flow rate accuracy: ±5% Flow rate repeatability: ±0.35% Split ratio: 0-5000(He), 0-1000(N2) Inlet temperature: 0-420℃ |
|||
