Home > Instruments & Meters > Analysis Instrument > Gas Analyzer > XRD X-ray Diffractometer Manufacturer

XRD X-ray Diffractometer Manufacturer

Name: XRD X-ray Diffractometer Manufacturer
Brand: Drawell
SKU: 166351177
Availability: InStock

US$ 30,000 - 80,000 MOQ: 1 Piece

Key Specifications

Get Latest Price

Brand Name:

Drawell

Place of Origin:

Shanghai, China

Model Number:

DW-XRD-2700A

Contact Supplier Request Quote Chat Now

Shanghai Drawell Scientific Instrument Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name Drawell

Place of Origin Shanghai, China

Model Number DW-XRD-2700A

Product Name	Combined Multi-functional X-ray Diffractometer
Model No.	DW-XRD-2700A
Rated power	3kW(HF,HV control technology)
Tube voltage	10-60kV
Tube current	5-50mA
X-ray tube	Metal ceramic tube / Target material: Cu, Fe, Co, Cr, Mo, etc / Power:2.4kW
Focus size	1x10mm or 0.4x14mm or 2x12mm
Stability	≤0.005%
Goniometer structure	Sample level (θ-θ)
Radius of diffraction	225mm(or custom by request:150-285mmrange)
2θ Scanning range	-6~160°(θs:-3~80°, θd:-3~80°)
Scanning speed	0.0012°-50°/min
Angle locating speed	1500°/min
Scanning fashion	θs/θd dlinkage/single action; continuous, stepping and Omg
Minimal stepping angle	1/10000°
Angle repeatable accuracy	1/10000°
2θ Angular linearity	International standard sample(Si,AI203),the angle deviation of all peak in full spectrum are not more than ±0.02°
Detector	Proportional counters(PC) or scintillation counter(SC),Silicon drift detector(SDD),High speed one-dimensional semiconductor array detector
Maximal counting rate of linearity	5x10⁵CPS(PC,SC with the compensate function of miss counting),15x10⁴CPS(SDD), 9X10⁷CPS(one-dimensional semiconductor array detector)
Energy resolution ratio	≤25%(PC,one-dimensional array),≤50%(SC),≤200eV(SDD)
Counting fashion	Differential coefficient or integral, PHA automatically, dead time regulate
Stability of system measure	≤0.01%
Scattered rays dose	≤1μSv/h (without X-ray protective device)
Instrument integrative stability	≤0.1%
Figure size	1000 x 800 x 1600

$XRD x-ray diffractometer manufacturer$ $XRD x-ray diffractometer manufacturer$

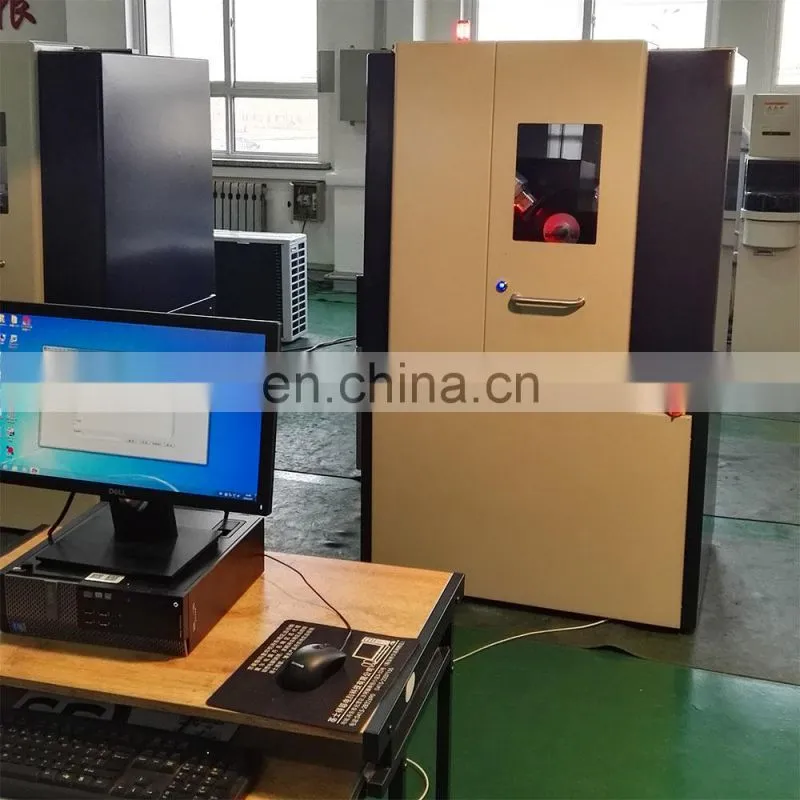

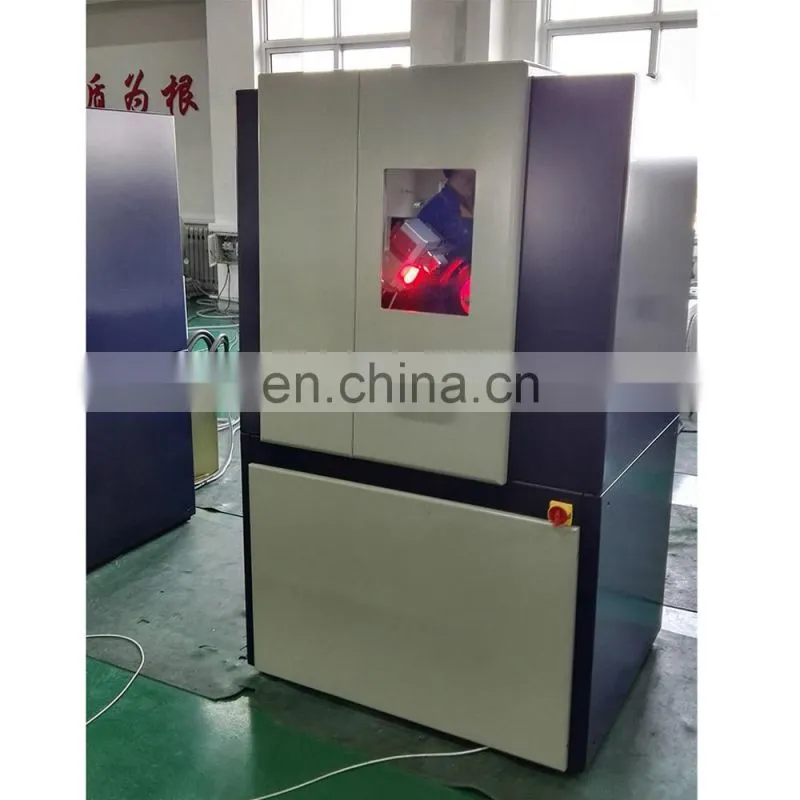

Product display
