462nm 5W Blue Laser for stage light
SPECIFICATIONS:
Model |
OEM-D-462 |
|
Wavelength (nm) |
462±3 |
|
Output power (mW) |
>2500, 3000, … , 5000 |
|
Operating mode |
CW |
|
Power stability (rms, over 4 hours) at 25℃ |
<1%, <3%, <5% |
|
Warm-up time (minutes) |
<5 |
|
Beam divergence, half angle (mrad) |
0.7×0.1 |
|
Beam diameter at the aperture (mm) |
~3.2×3.2 (1/e2)/ ~2.2×2.2 (FWHM) |
|
Polarization direction |
Horizontal+ Vertical |
|
Beam height from base plate (mm) |
34.5(OEM-D-462) |
68.2(D-462-HS) |
Operating temperature (℃) |
25+/-3 (OEM-D-462) |
10-35(D-462-HS) |
Power supply |
PSU-H-LED/PSU-H-FDA/PSU-HD-OEM-H/PSU-D-OEM-H |
|
Expected lifetime (hours) |
10000 |
|
Modulation option |
TTL/Analog 1Hz-5KHz, 1Hz-10KHz, 1Hz-30KHz, and TTL on/off |
|
Warranty time |
1 year |
|

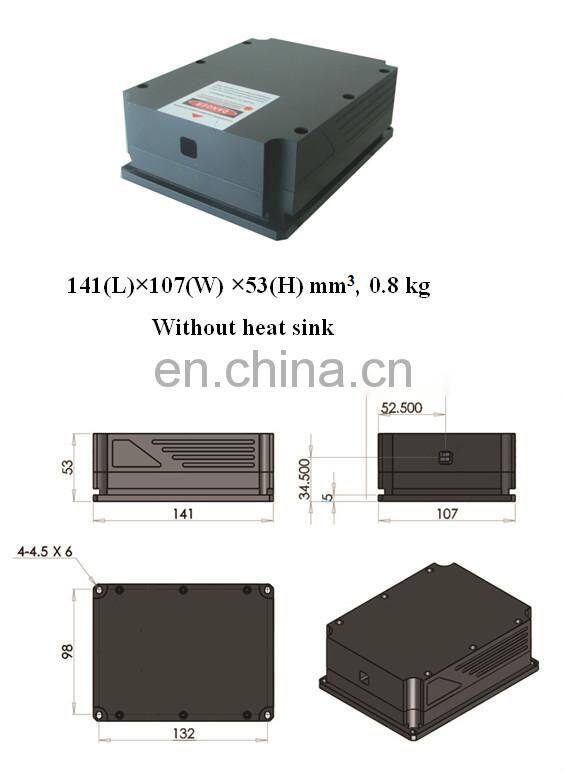

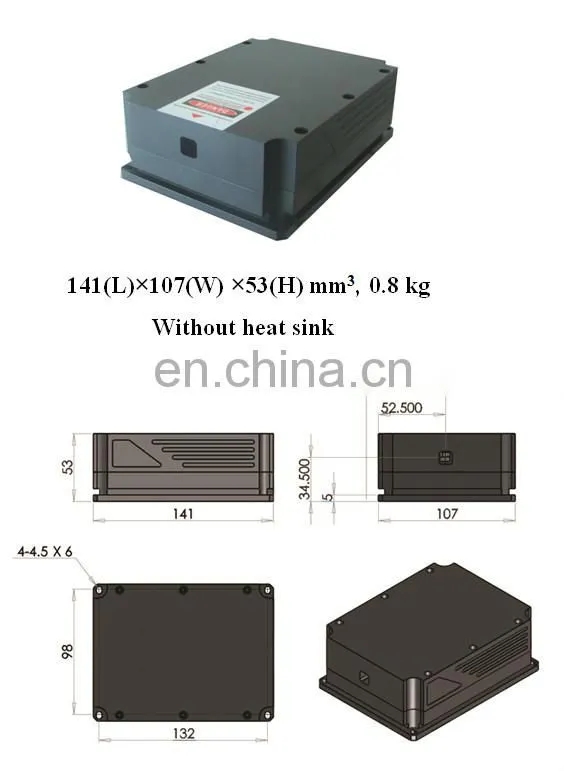

Laser Head

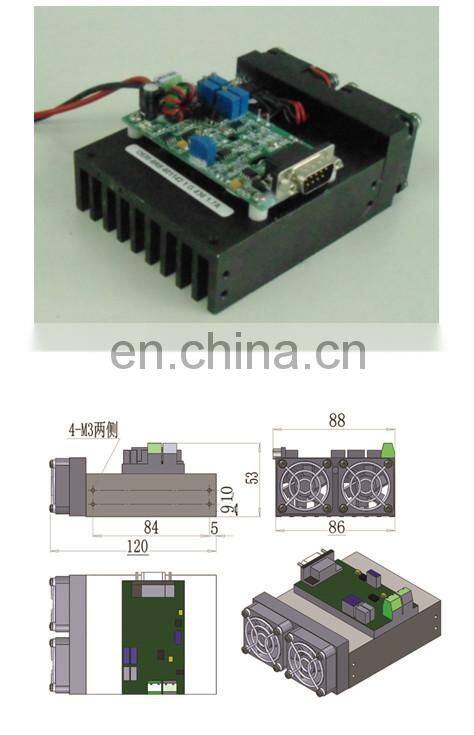

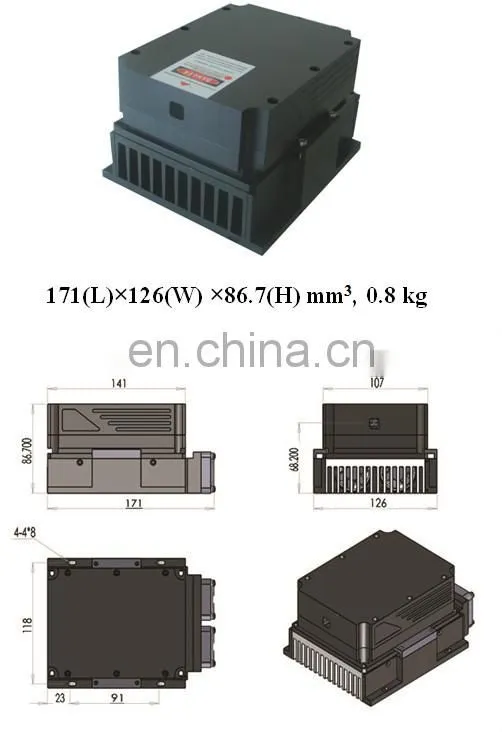

Laser Head with heat sink

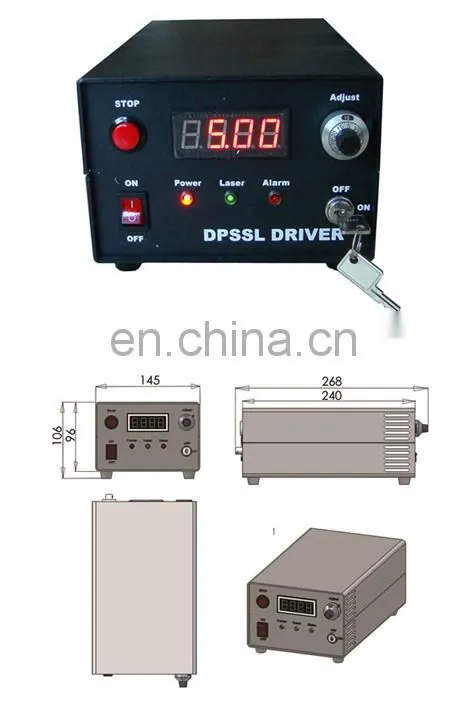

PSU-H-LED Power Supply

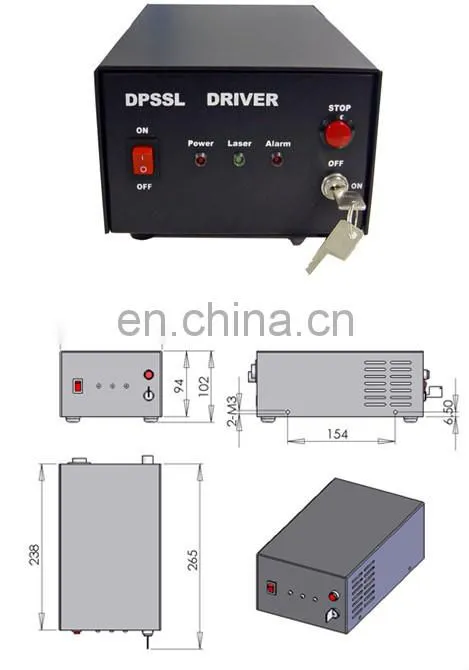

PSU-H-FDA Power Supply

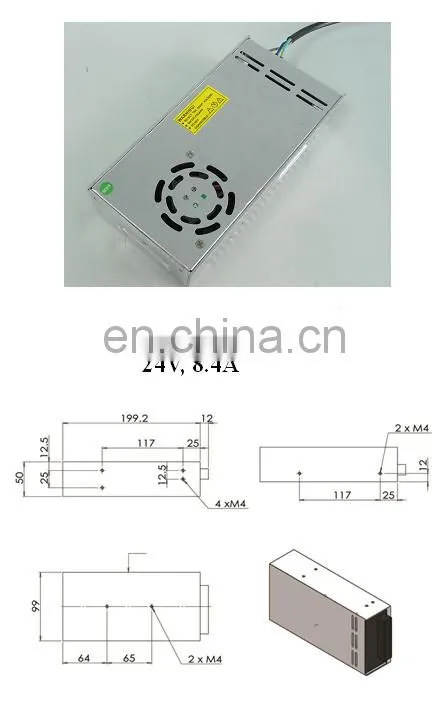

PSU-OEM-(7-8W) Power Supply
Company Information
Changchun New Industries (CNI) founded in 1996, located in Changchun, CHINA, is a leading manufacturer of solid-state and diode laser systems. Our products include green laser, blue laser, yellow laser, red laser, RGB laser, infrared laser, UV laser, single longitudinal mode laser and Q-switched laser systems. CNI lasers are featured with high performance, low cost and excellent laser beam quality, which are specifically designed for OEM, scientific, industrial and instrumentation use. In addition, CNI lasers are ISO-9001, FDA, CE, RoHS and JQA certified.
CNI also provides laser components and accessories, we aim to offer customers complete laser solutions for all solid state lasers, diode lasers, laser marking system with our most convenient and rapid service.
