Ultra Compact OEM Laser for Laser Light Show

Ultra Compact OEM Laser for Laser Light Show thumbnail-1
Ultra Compact OEM Laser for Laser Light Show thumbnail-2
Ultra Compact OEM Laser for Laser Light Show photo-1

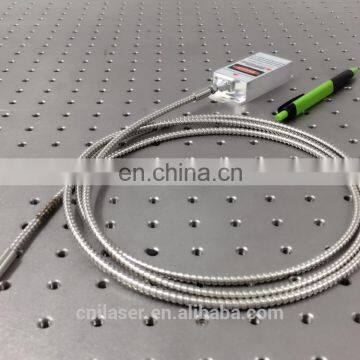

Ultra Compact OEM Laser for Laser Light Show photo-2
US$ 1,600 - 3,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
CNI
Place of Origin:
Jilin, China
Model Number:
OEM-I-X
Contact Supplier Request Quote Chat Now
Changchun New Industries Optoelectronics Tech Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ChangChun
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name CNI
Place of Origin Jilin, China
Model Number OEM-I-X
Product Description

Ultra Compact OEM Laser

Ultra compact OEM laser, features with high power and small size, many wavelengths available from 405 nm to 1319 nm, can be used for industrial, medical, scientific fields.

It is a perfect choice for design and integration into OEM instrumentation and systems,

can be used for end user's applications in research and development.

Features:                                                                    Applications:
- Ultra compact                                                                                   - Confocal microscopy
- Plug & play                                                                                       - Laser medical treatment
- Cost-effective                                                                                   - Scientific research
- Many wavelengths available                                                            - Cell sorting
- Easy integration                                                                               - Optical instrument
- Can be equipped with software                                                        - OEM integration
Specifications
Wavelength
          (nm)
Type
Output power
(free space)
Output power
(after fiber)
Spectral linewidth
   FWHM (typical)
Noise
(20Hz-20MHz)
405 ± 5
Diode
1.5W
1.2W
2 nm
0.5%
445 ± 5
Diode
15W
13W
2 nm
0.5%
450 ± 5
Diode
15W
13W
2 nm
0.5%
455 ± 5
Diode
15W
13W
2 nm
0.5%
460 ± 5
Diode
10W
8.5W
2 nm
0.5%
465 ± 5
Diode
10W
8.5W
2 nm
0.5%
473 ± 1
DPSS
1W
800mW
0.2 nm
3%
520 ± 5
Diode
3.8W
3.5W
0.2 nm
0.5%
532 ± 1
DPSS
5.5W
5W
0.2 nm
1%
561 ± 1
DPSS
1W
800mW
0.2 nm
3%
589 ± 1
DPSS
800mW
600mW
0.2 nm
1%
593 ± 1
DPSS
300mW
200mW
0.2 nm
3%
637 ± 1
Diode
2.5W
2W
2 nm
0.5%
671 ± 5
DPSS
2.5W
2W
0.2 nm
3%
1319 ± 1
DPSS
1W
800mW
0.3 nm
3%

  Note: The model of laser is OEM-I-X, X stands for wavelength. Other wavelengths can be customized on request.

 Other Parameters:

1. BEAM PROPERTIES (FOR DPSS):
- Transversal mode: Near TEM00
- Beam diameter at aperture (1/e2): ~3 mm
- Beam divergence (full angle): <1 mrad
- Polarization ratio: better than 100:1


2. MODULATION:
- All diode lasers can be modulated up to more than 100kHz via TTL pin
- All DPSS lasers can be modulated at 0~30kHz TTL pin


3. FIBER SPECS:
- All lasers are made with FC or SMA905 connectors
- Standard length of a fiber is 1 m or 2 m, other lengths available on request.


4. PHYSICAL PROPERTIES:
- Control interface type: RS232 or USB
- External power supply requirement: +5VDC, 12A for DPSS, +12VDC, 3A for diode
  Dimensions (L-W-H): 86 (L) ×50(W) ×19 (H) (excluding pins and output window)
- Beam height from the base: 12 mm
- Optimum heatsink temperature (non-condensing): +15...+30℃
- Max. heatsink temperature 40℃
- Internal temperature stabilization: TEC
- Overheat protection: Yes
- Storage temperature (non-condensing): -10 to +50 ℃
- Warranty: 12 months

Detailed Images

 Dimensions:

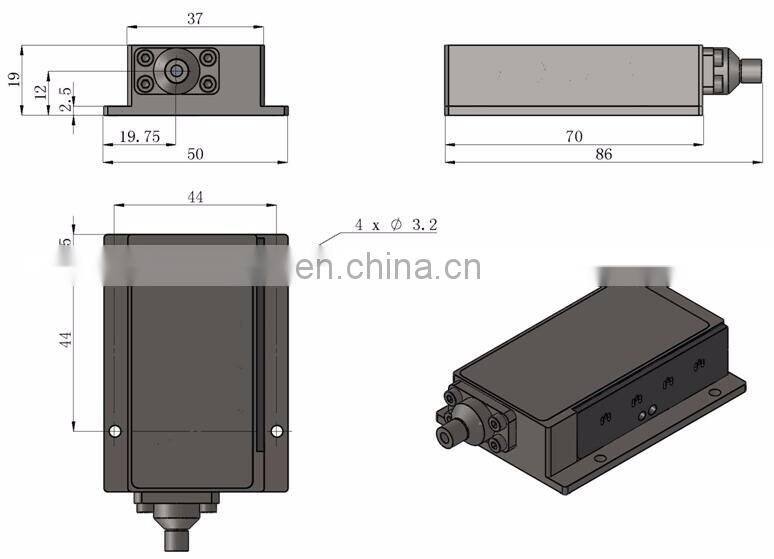

                                        Diode (with fiber)

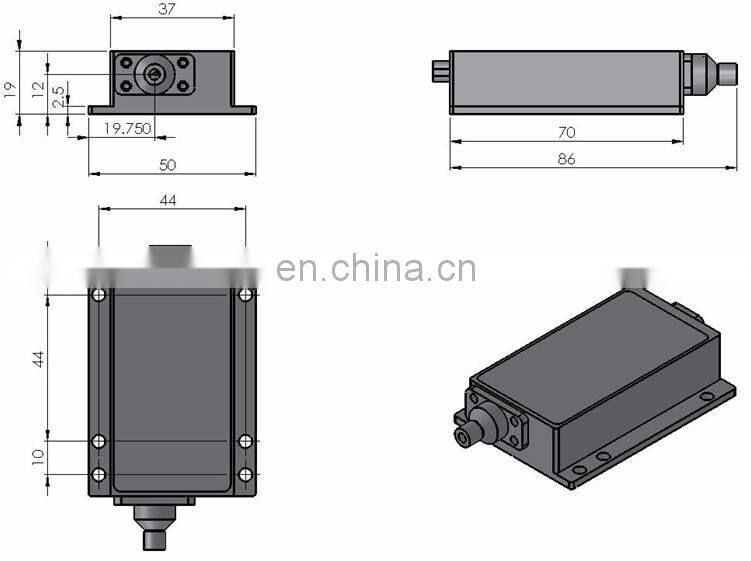

                                           DPSS (with fiber)

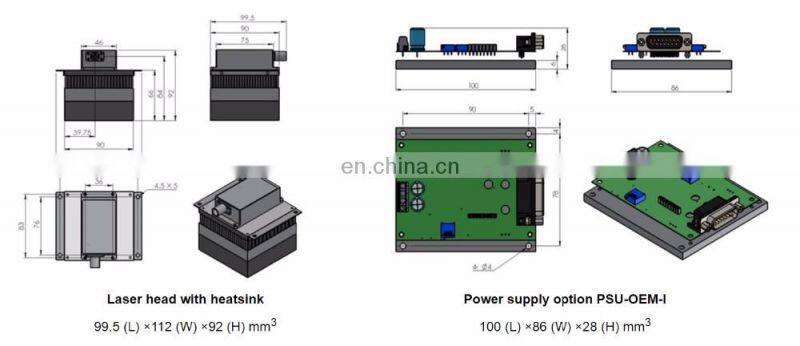

Option & Accessory:

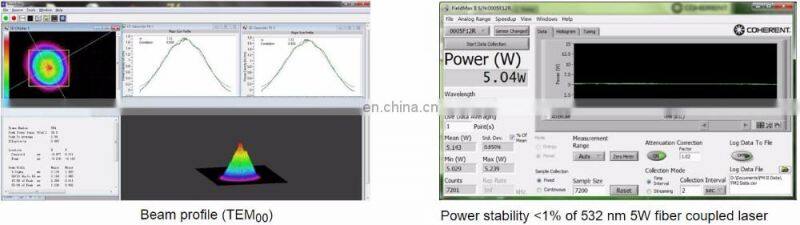

Testing Result:

Certifications
Packing & Delivery
Exhibitions
Contact Us

FAQ

1. What about the delivery?

      TNT     UPS     FEDEX     DHL

2. What about the warranty?

       For 1 year

3.How to pay?

      T/T     Western Union


4. How to visit our factory?

 You can contact us by following ways to apply for visiting our factory:

(1) International Tel: +86-431-85603799

(2) Fax: +86-431-87020258

5. How to find nore product of our company?

 Search our web to find more products(including more contact way )
