Product Description

 ◆ Standard Model

 CNI designed multi-wavelength laser combiner systems. 2~4 wavelengths can be combined into one box. USB or  RS232 connector is optional. Wavelengths are available for UV-Visible-IR range, lasers including the diode and  DPSS lasers. The multi-wavelength lasers are widely used for medical, biomedical, and industrial application, etc.

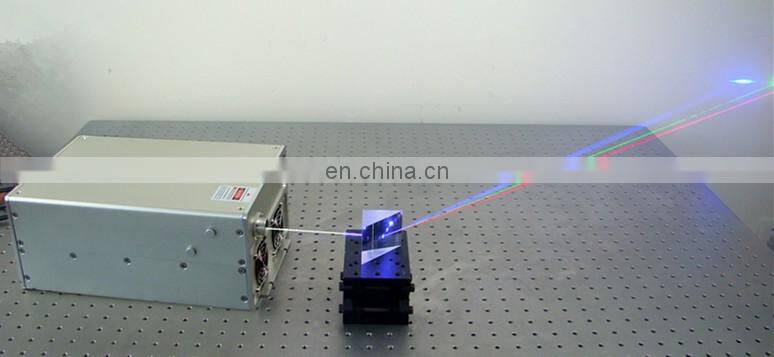

  ◆ RGB Laser for Show

 CNI has researched and developed Diode Pumped Solid State (DPSS) Lasers and Laser Diode (LD) for several years.  The DPSS Lasers are featured with high reliability, high stability, high efficiency, low noise, excellent laser beam quality  and low cost. The products include Green lasers, Blue lasers, Red lasers and RG & RGB laser. We could provide RGB  beam combiner used for RGB laser show. The green, blue and red laser combine and become a white beam with it.  These lasers are specially designed for laser entertainment.

Detailed Images

◆ Standard Model

Model
MSX-M/S/N/W/Z
Number of combined wavelengths
2~4
Output mode
 free coaxially output (fiber output optional)
Available Wavelength (nm)
320~1064
Output power (mW)
 Available for customized on request
Power stability (rms, over 4 hours)
<1%, <3%, <5%
Operating mode
CW, TTL or analog on request
Operating temperature (℃)
10-35℃
Power input
100-240VAC
Cooling method
Air cooled
Expected lifetime (hours)
10000
Warranty
1 year

   Note: 1. X stands for the number of wavelength, X= II, III, IV.
             2. Customized sizes are available to different wavelength combinations and output powers.
             3. Fiber coupling mode option: MM/ SM/ PM fiber, SMA905/ FC fiber connector optional

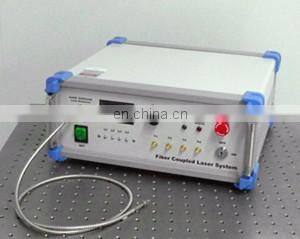

  ◆ Complete Solution

 Special offer multi-wavelength fiber coupled laser system are designed with integrated electronics and easy operation.  2~6 wavelengths can be combined into one box. USB or RS232 connector is optional. Wavelengths are available for

 UV-Visible-IR range, lasers include diode and DPSS lasers. The multi-wavelength lasers are widely used for medical,  biomedical, and industrial application, etc.

Model
FC-MS
FC-ML
Available wavelength (nm)
375~1064
Number of combined wavelengths
2~3
4~6
Output mode
Fiber output
Fiber core diameter (μm)
Available for customized on request
Fiber connector
SMA905/ FC
Output power
 Available for customized on request
Power stability (rms, over 4 hours)
<1%, <3%, <5%
Operating mode
CW, TTL or analog on request
Operating temperature(℃)
10~35
Cooling method
Air cooled
Expected lifetime (hours)
10000
Warranty
1 yeas

      Note: Customized sizes are available to different wavelength combinations and output powers.

HOT Combinations

    Two wavelengths:

    ◆405nm/ 561nm

    ◆473nm/ 593.5nm

    ◆635nm/ 532nm

    ◆473nm/ 589nm

    ◆405nm/ 593.5nm

Three wavelengths:

 ◆637nm/ 532nm/ 447nm

 ◆640nm/ 532nm/ 405nm

 ◆635nm/ 532nm/ 473nm

 ◆671nm/ 532nm/ 473nm

Four wavelengths:


◆405/ 447nm/ 532nm/ 637nm 　
◆405/ 488nm/ 532nm/ 637nm

Beam Combiner

   ◆Red/ Green/ Blue beam combiner

   ◆Polarization beam splitter/ combiner
Packing & Delivery
Certifications
Company Information

    Changchun New Industries (CNI) founded in 1996, located in Changchun, CHINA, is a leading manufacturer of solid-state and diode laser systems. Our products include green laser, blue laser, yellow laser, red laser, RGB laser, infrared laser, UV laser, single longitudinal mode laser and Q-switched laser systems. CNI lasers are featured with high performance, low cost and excellent laser beam quality, which are specifically designed for OEM, scientific, industrial and instrumentation use. In addition, CNI lasers are ISO-9001, FDA, CE and JQA certified.

    CNI also provides laser components and accessories, we aim to offer customers complete laser solutions for all solid state lasers, diode lasers, laser marking system with our most convenient and rapid service.
