CNI Fiber Coupled Laser System at 880/885/888nm / FC-W-880/885/888 / 10~30W

CNI Fiber Coupled Laser System at 880/885/888nm / FC-W-880/885/888 / 10~30W thumbnail-1
CNI Fiber Coupled Laser System at 880/885/888nm / FC-W-880/885/888 / 10~30W photo-1
US$ 1,950 - 3,900 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
CNI
Place of Origin:
Jilin, China
Model Number:
FC-W-880/885/888
Contact Supplier Request Quote Chat Now
Changchun New Industries Optoelectronics Tech Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Changchun
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name CNI
Place of Origin Jilin, China
Model Number FC-W-880/885/888
Product Description

High Power 880/885/888nm Fiber Coupled Diode Laser System

The FC-W series (Fiber Coupling Laser System) have integrated laser diode, fiber coupling optics, laser power supply, LD current and temperature control in ONE box. Its compact dimension and convenient functions, such as power adjustment, temperature control, LED display etc, make it very suitable for pumping, scientific research, industrial and medical applications.

Specifications

Parameter
FC-W-880
FC-W-885
FC-W-888
Available Wavelengths (nm)
880±3
885±3
888±3
Available Power (W)
10, 20, 30
Fiber Core Diameter (µm)
400
Fiber NA
0.22
Fiber Connector
SMA905
Fiber Length (m)
2
Output Power
0-100%, adjustable by knob
Operating Mode
CW, TTL or Analog on request
LED Display
Diode current
LD Temperature Control Range ( °C)
15~30, adjustable by knob
Expected Lifetime (hours)
10000
Input Power
90-264VAC, 50 to 60 Hz
Operating Temperature ( °C)
10~40
Cooling Way
by air
Warranty time
1 year
Product Description


CNI Fiber coupled laser system at 640nm

The FC series (Fiber Coupling Laser System) have integrated laser diode, laser cavity, fiber coupling optics, laser power supply, LD current and crystal temperature control in ONE box. Its compact dimension and convenient functions, such as power adjustment, temperature control, LED display etc, make it very suitable for pumping, scientific research, industrial and medical applications.
Detailed Images

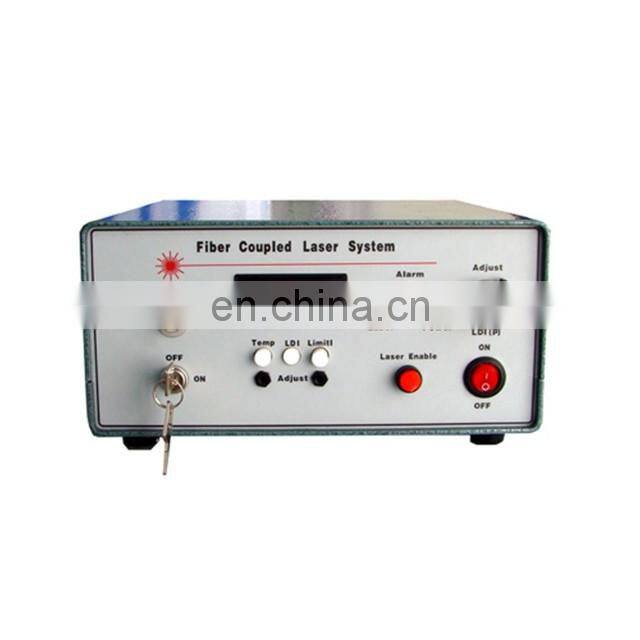

Front Panel

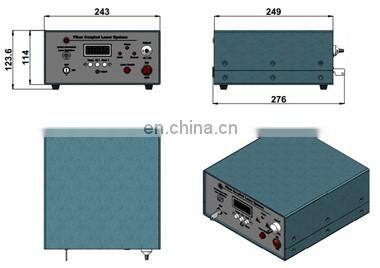

Dimensions

Package Dimensions: 243 (L) ×249 (W) ×123.6 (H) mm3, 4.2kg

Accessories

Collimator with spherical lens

Collimator with aspherical lens
