1064nm Q-switched Single Longitudinal Mode Laser

1064nm Q-switched Single Longitudinal Mode Laser photo-1
US$ 27,040 - 30,420 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
CNI
Place of Origin:
Jilin, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Changchun
Delivery Detail:
Delivery time depends on order quantity.
Brand Name CNI
Place of Origin Jilin, China





1064nm Q-switched Single Longitudinal Mode Laser



 MSL-AO-1064 200uJ 1064nm AO Q-switched SLM/ Single Longitudinal Mode Laser

APPLICATION:



All solid state single frequency pulsed laser at 1064nm is made features of high power, long lifetime and easy operating, which is used in DNA sequencing, flow cytometry, cell sorting, optical instrument, spectrum analysis, interference, measurement, holography, physics experiment, etc.





 SPECIFICATIONS:





Wavelength (nm)

1064

Operating mode

AO Q-switched

Single pulse energy (µJ)

1~200

Longitudinal mode

Single

Pulse duration (ns)

25

Peak power (kW)

1~8

Rep. rate (Hz)

1~1000, a fixed value

Polarization ratio

> 100:1

Pointing stability after warm-up (mrad)

<0.05

Transverse mode

TEM00

M2 factor

<1.2

Ave power stability (over 4 hours)

<5%

Warm-up time (minutes)

<10

Beam divergence, full angle (mrad)

<2

Beam diameter at the aperture (mm)

~2

Beam height from base plate (mm)

109

Cooled method

Air cooled

Operating temperature (℃)

10~35

Power supply (90-264VAC)

PSU-AOM

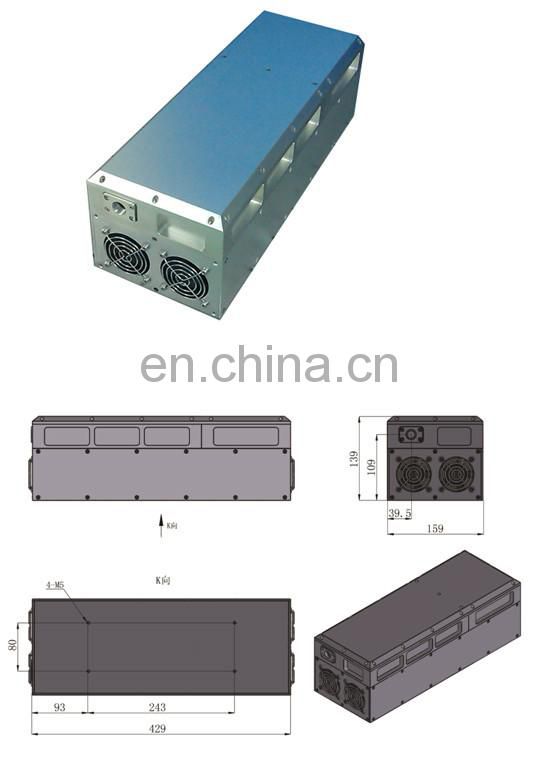

                                                   Laser Head



                                   1064nm Q-switched Single Longitudinal Mode Laser

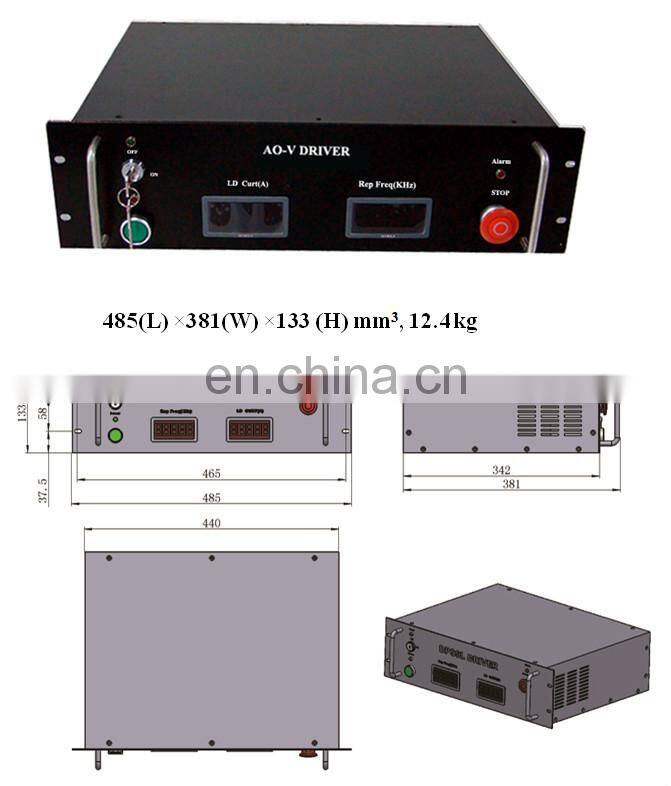

                                                     Power Supply

                    1064nm Q-switched Single Longitudinal Mode Laser
