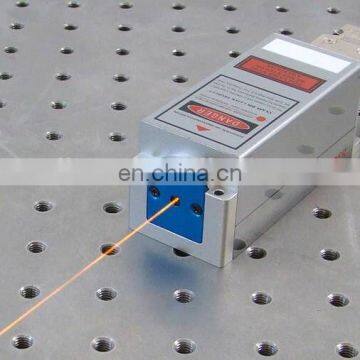

CNI Compact DPSS 589nm Yellow Laser Module

Model

MGL-S-589-A(Harsh condition)

MGL-S-589-B (Normal condition)

Central wavelength (nm)

589±1

Operating mode

CW

Output power (mW)

>1,5,10,20,…,50

Power stability (rms, over 4 hours)

<1%,<3%,<5%

Transverse mode

TEM₀₀

M² factor

<1.5

Beam diameter at the aperture( 1/e² ,mm)

0.7±0.05

Beam divergence, full angle (mrad)

<1.5

Polarization ratio

>100:1  Horizontal±5 degree (Vertical Optional)

Pointing stability after warm-up (mrad)

<0.05

Pointing stability Over Temp. (µrad/°C)

<8

Warm-up time (minutes)

<5

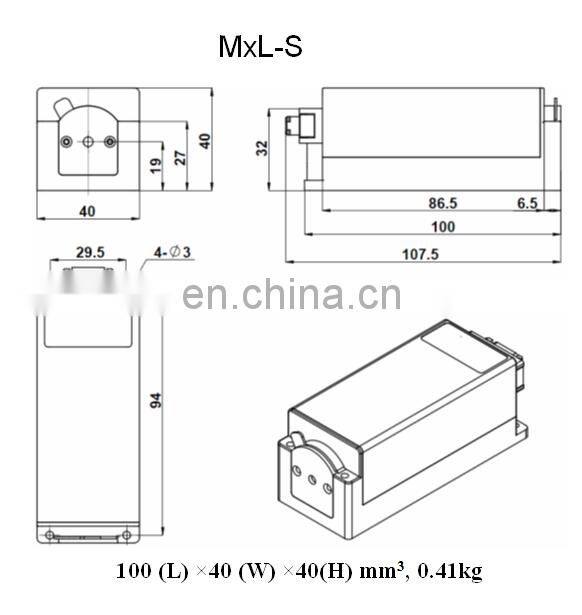

Beam height from base plate (mm)

19

Power Consumption(W)

<30

Shock Tolerance(6ms)

7g laterally,15g vertically

IP Rating

IP67

IP65

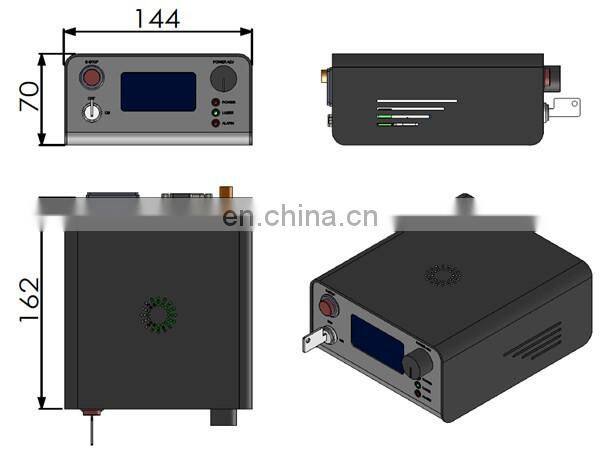

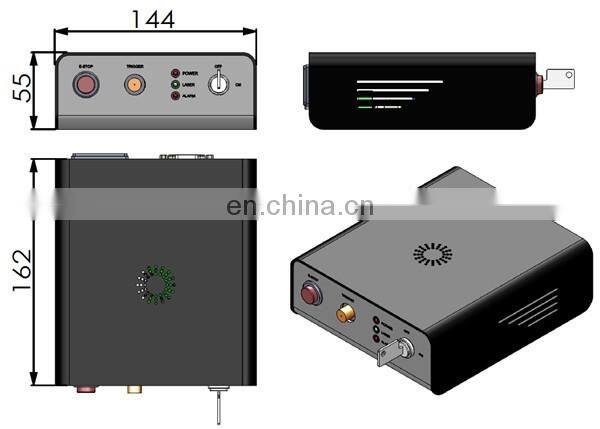

Power supply(90-264VAC or 5VDC)

PSU-H-FDA

PSU-A-DP

PSU-A-FP

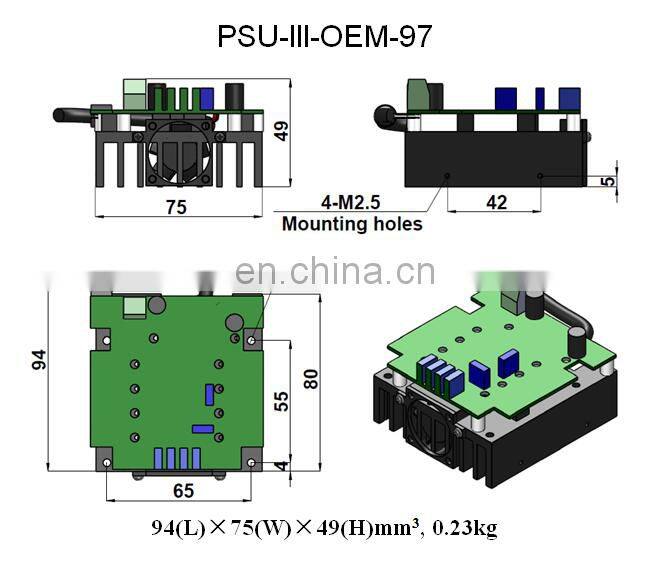

PSU-III-OEM-97

Operating temperature (℃)

0-60

10-35

Max. Heat Dissipation of Head(W)

10W@50℃

4W@25℃

Modulation

TTL on/off, 1Hz-1KHz, 1KHz-10KHz, 10KHz-30KHz; and Analog modulation option

Expected lifetime (hours)

10000

Warranty

1 year
