Used for Vehicle Wheel Steering Brushless Dc Motors, High Torque and Low Cogging
US$ 15 - 60
/ Piece
5 Pieces(Min. Order)
- SHANGHAI
- T/T Credit Card
You May Like
-
12v 24v 48v Heavy Duty Worm Gear dc Motors for Wheel Steering
-
AGV Steering System Use Brushed dc Gear Motor 30Nm 250w Output, for Auto Guided Industrial Vehicles
-
63mm 12 Volt 24 Volt dc Motors Used for Small Hydraulic Pumps 12v 24v
-
Customized Specification 12v 24v dc Pump Motor for Hydraulic Water Air Pumps, OEM ODM
-
80mm Electric Bicycle Vehicle Use Brushless dc E-bike Scooter Motor 100w 200w 300w Upto 500w 800w, High Efficiency Long Life
-
12v 18v 24v Brushless Dc Blower Power 100w 200w 300w 500w
Product Details
| Brand Name | Smart Automation | Place of Origin | Jiangsu, China | |
| Model Number | 80RBL | Type | Servo Motor | |
| Certification | CE, ROHS | Torque | Up to 45N.m | |
| Usage | Car, Electric Bicycle, Fan, Home Appliance | Construction | Series Wound | |
| Efficiency | IE 1 | Protect Feature | Drip-proof | |
| Continuous Current(A) | customed | Speed(RPM) | customed | |
| Commutation | Brushless |
Product Description

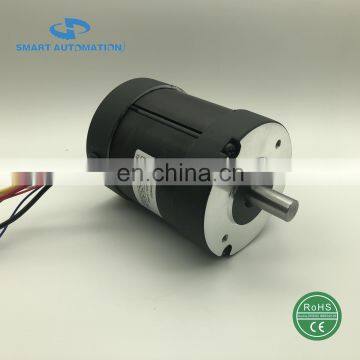

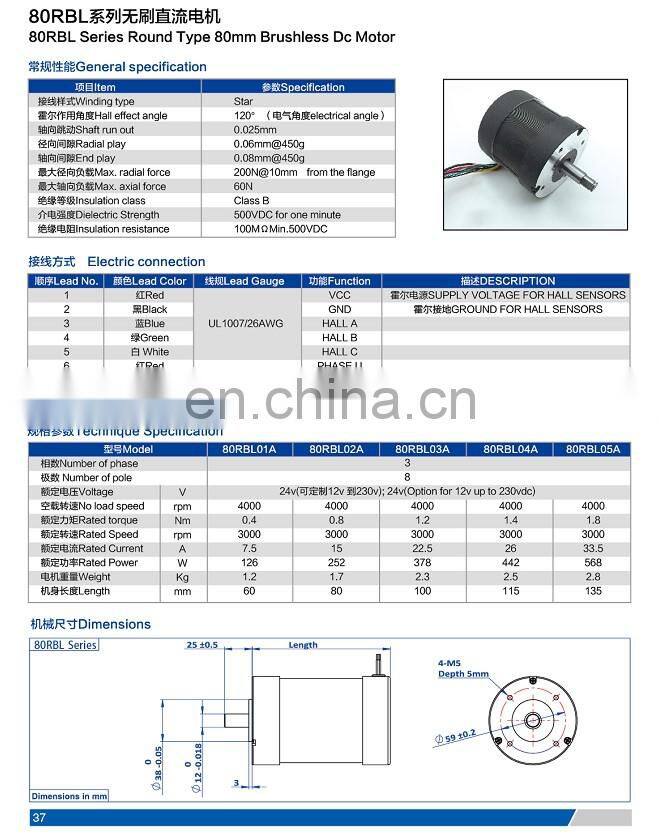

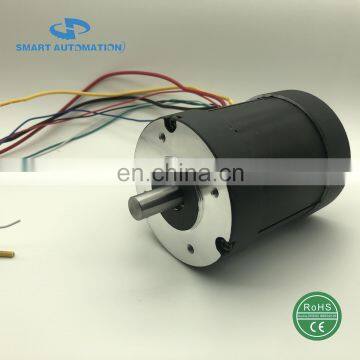

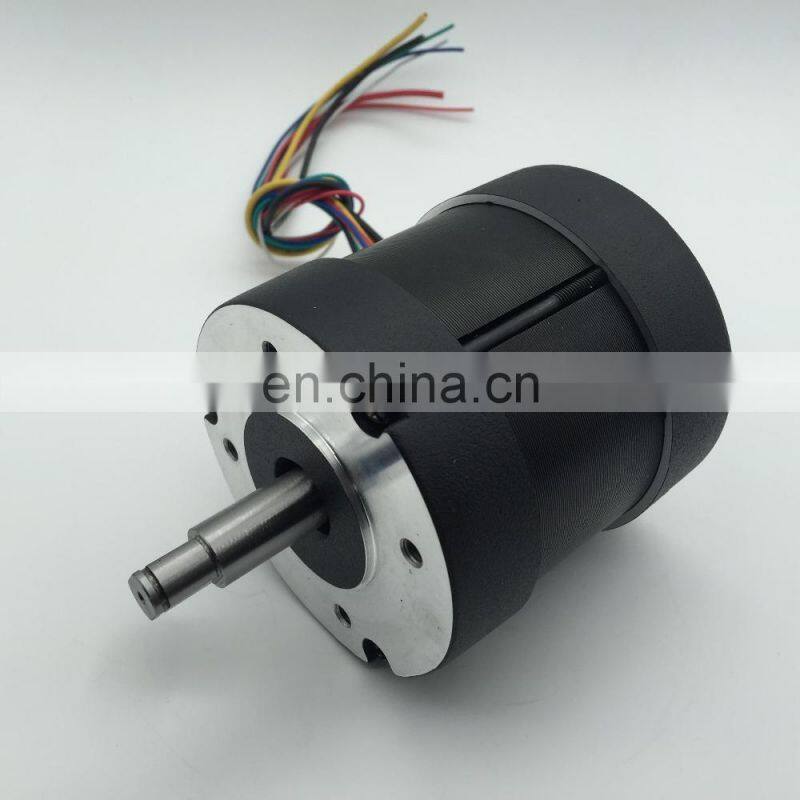

BRUSHLESS DC MOTOR 80RBL SERIES
Voltage 12v, 24v, 36v, 48v, upto 230vdc
power 100W upto 500w
Customization, RoHs
Ideal Solution for Velocity Control Applications
Shaft Modifications and Motor Adders Available GEARBOX AND CONTROLLER OPTION
Below are only some typical models.
For more information or a customed motor, Pls contact us.
Option for Electric Brake, Planetary Gearbox, Worm Gearbox, Optical Encoder Integrated

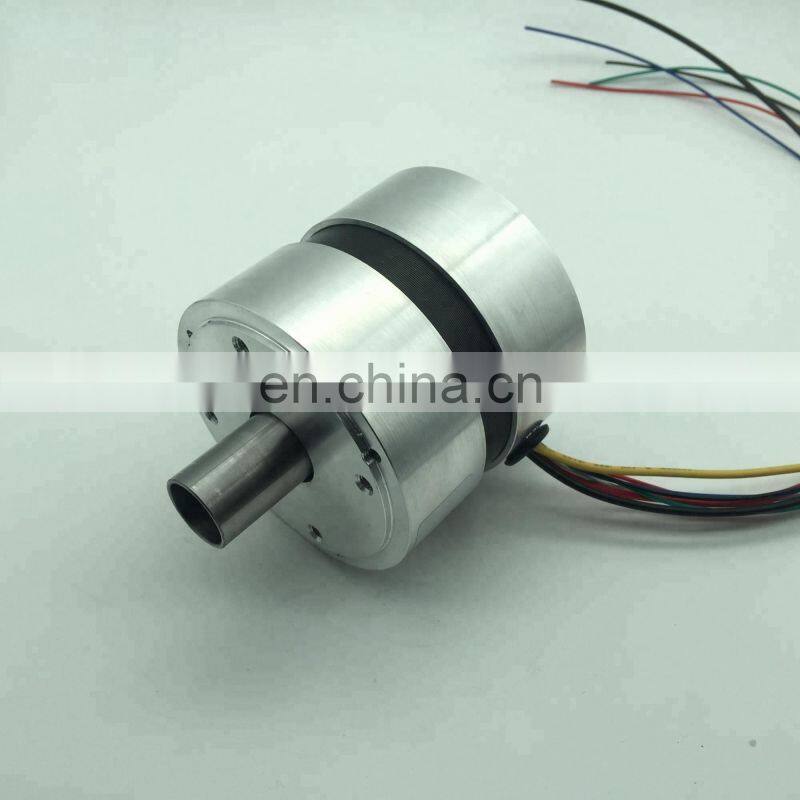

Hollow shaft version

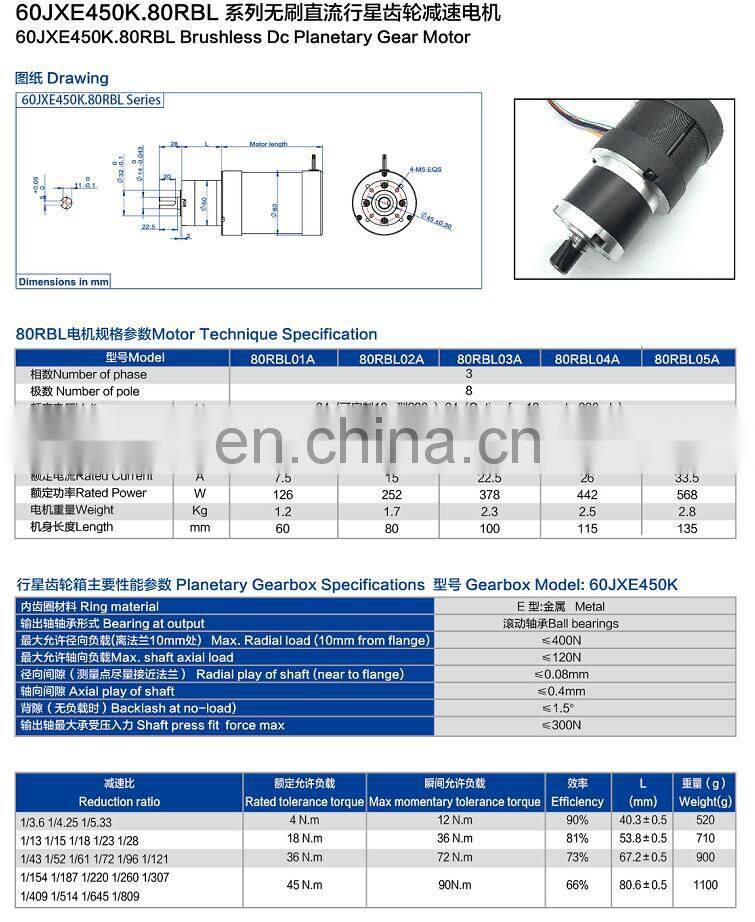

60JXE450K Gearbox + 80RBL Brushless Motor

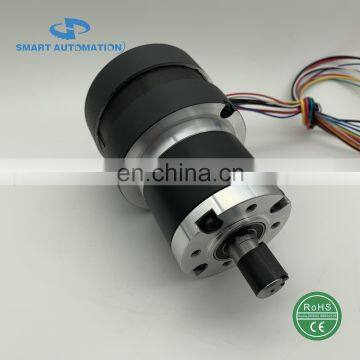

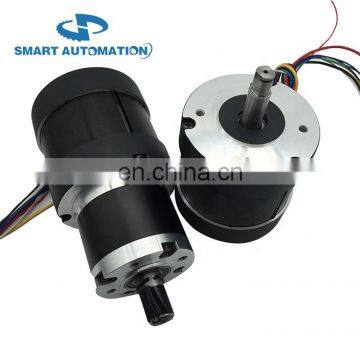

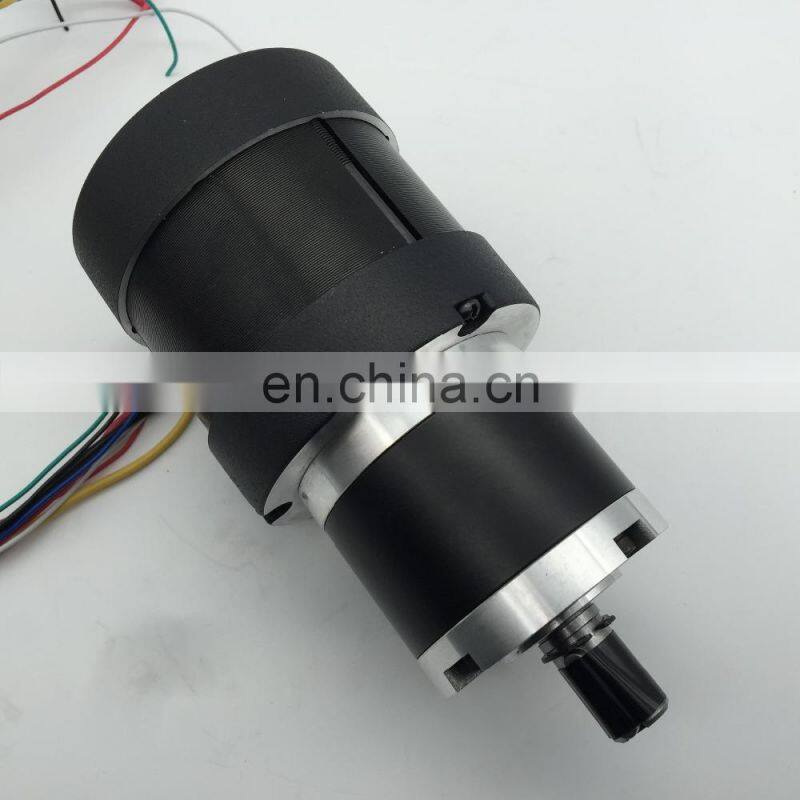

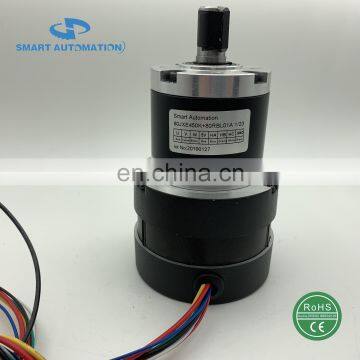

60JXE450K.80RBL Series Planetary Gear Motor Pictures:

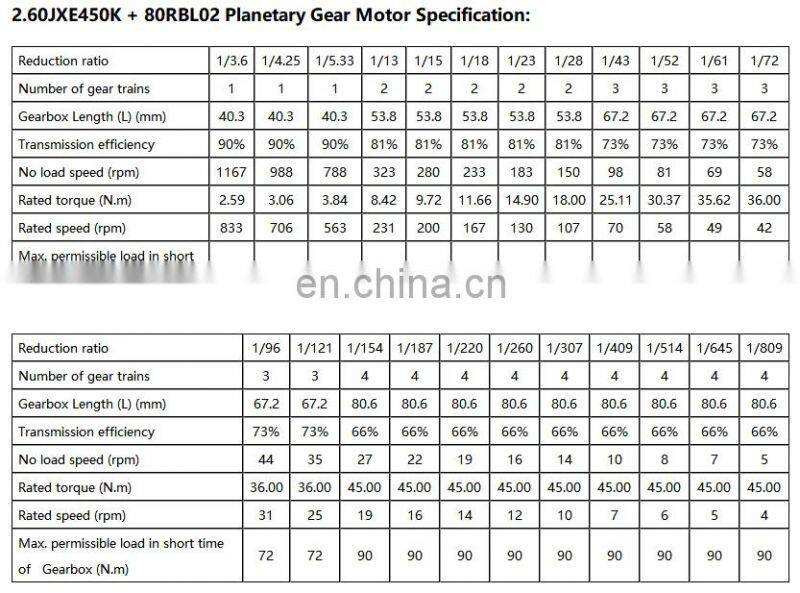

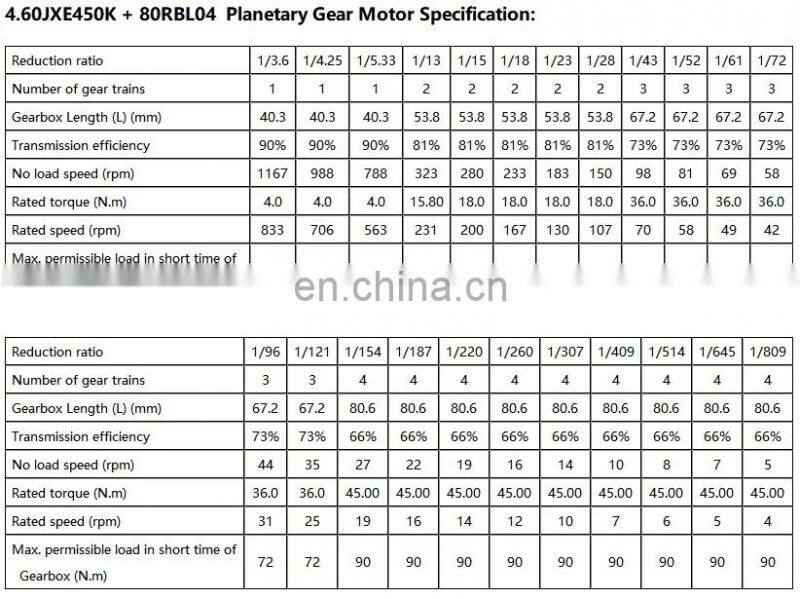

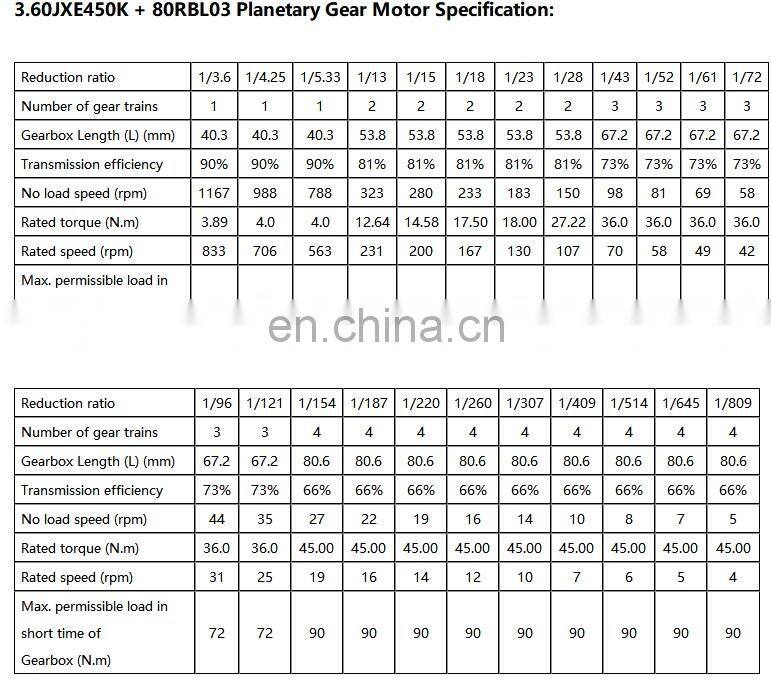

60JXE450K.80RBL Series Planetary Gear Motor Specification:
