Help Center76mm 12v 24v SMALL ELECTRIC TOY CARS DC MOTOR
Related Products
-
Size 76mm 3'' dc Brushed Motor, Used for Recreational VehicleUS$ 15 - 50MOQ: 5 Pieces -
Medical Air Pump Dc Motor Anti- Vibration 12v 24v Low Noise Long Life EMC In-sideUS$ 7 - 20MOQ: 5 Pieces
-
63mm 24v 200w 4500rpm Brushed Dc Motor Used for Mobility Scooter E-scooterUS$ 15 - 30MOQ: 5 Pieces
-
63ZYT01- ES Permanent Magnet 12 Volt dc Electric Scooter Motor, 12v no Load 5000rpmUS$ 6 - 20MOQ: 5 Pieces
-
Customized 52mm Vehicle Automobile dc Fuel Pump MotorUS$ 10 - 20MOQ: 5 Pieces

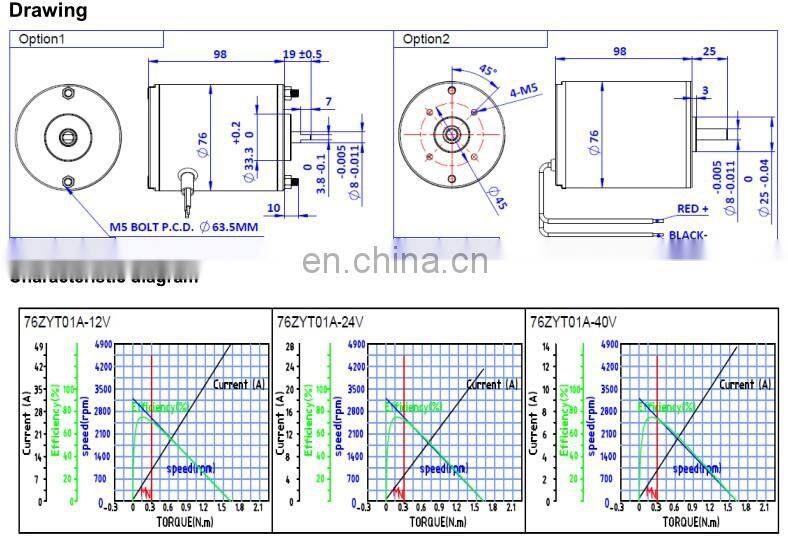

Permanent Magnet Brush DC Motor 76ZYT01A
Motor Specifications
Shaft materials 3Cr13, HRC 36~40
High quality ball bearing
Hard ferrite magnet, 2- poles
Protection class IP 50
Insulation class: F, operating temperature range:-40℃~+140℃
CE and ROHS certified
Options
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation
Model | 76ZYT01A | |||
Rated voltage | V dc | 12 | 24 | 40 |
Continuous rated speed | rpm | 2600 | 2600 | 2600 |
Continuous rated torque | N.m | 0.3 | 0.3 | 0.3 |
Continuous current | A | 9.5 | 4.70 | 2.80 |
Starting torque | N.m | 1.62 | 1.62 | 1.62 |
Starting current | A | 49 | 24 | 13.7 |
No load speed | rpm | 3200 | 3200 | 3200 |
No load current | A | 0.6 | 0.4 | 0.3 |
Weight of motor | g | 1500 | 1500 | 1500 |
Motor length | mm | 98 | 98 | 98 |
Permanent Magnet Brush DC Motor 76ZYT02A
Motor Specifications
Shaft materials 3Cr13, HRC 36~40
High quality ball bearing
Hard ferrite magnet, 2- poles
Protection class IP 50
Insulation class: F, operating temperature range:-40℃~+140℃
CE and ROHS certified
Options
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation
