Home > Products > brushless dc gear motor > 56JXE.57BL Option With Encoder Brake Controller Integrated Planetary Gear BLDC Motors Upto 45Nm Rated Torque
56JXE.57BL Option With Encoder Brake Controller Integrated Planetary Gear BLDC Motors Upto 45Nm Rated Torque
- SHANGHAI
- T/T Credit Card
You May Like
-
NMRV030.80BL NMRV040.80BL Series High Torque Brushless Dc Worm Gear Reducer BLDC Motor
-
80mm High Torque Brushless dc Gear Motor Rated 30Nm With 24 Volt Controller Integrated
-
Big Torque 24v Bldc Gear Motor DC Brushless 10Nm 20Nm 30Nm 100w 200w With Driver / Controller Integrated
-
57BL 12v 24v Brushless Dc Motor 50w 100w, With Driver / Controller Included, Integrated PWM Control
-
80RBL-90 + RV030 High Torque Brushless dc Worm Gear Motor Rated 48N.m 19rpm
-
Nema 08 Stepper Motor, Size 20mm Stepper Motor
Product Details
| Brand Name | Smart Automation | Place of Origin | Jiangsu, China | |
| Model Number | 56JXE.57BL | Type | Micro Motor | |
| Certification | CE, ROHS | Torque | upto 45Nm | |
| Usage | Car, Electric Bicycle, Fan, Home Appliance | Efficiency | IE 1 | |
| Protect Feature | Drip-proof | Continuous Current(A) | customed | |
| Speed(RPM) | 1 rpm upto 1000rpm | Commutation | Brushless |
Product Description
Size 57mm 12V 24V 36V 48V 60V Brushless Dc Motors
BELOW ARE ONLY STANDARD MODELS
WE MAKE CUSTOMED VOLTAGE, WINDING, SHAFT, MOUNTING,
AND MOTOR ADDERS AS ENCODER, GEARBOX, BRAKE...ETC
57BL Series Brushless Dc Motors
56JXE300K.57BL Series Planetary Gear Motor (rated torque upto 30Nm)
56JXE450K.57HBL Series Planetary Gear Motor(rated torque upto 45Nm)

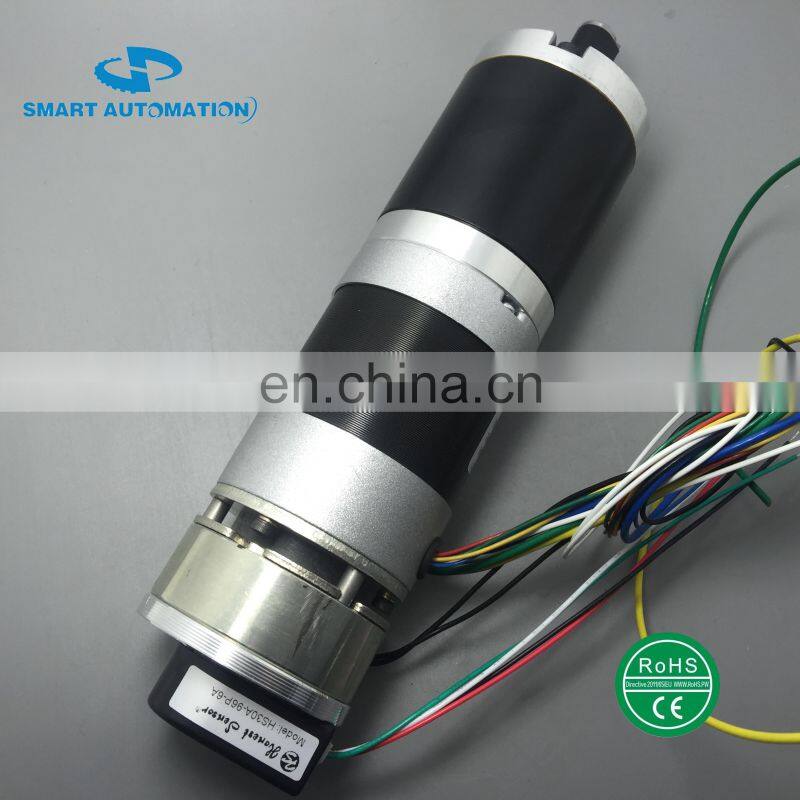

Brakes / Encoder Integrated
Encoder

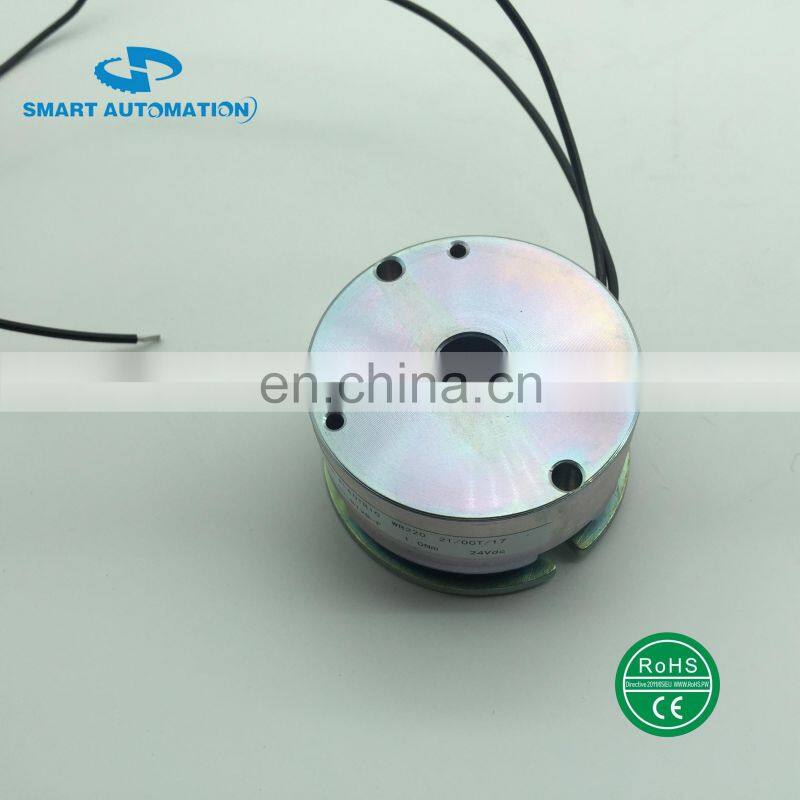

Brake

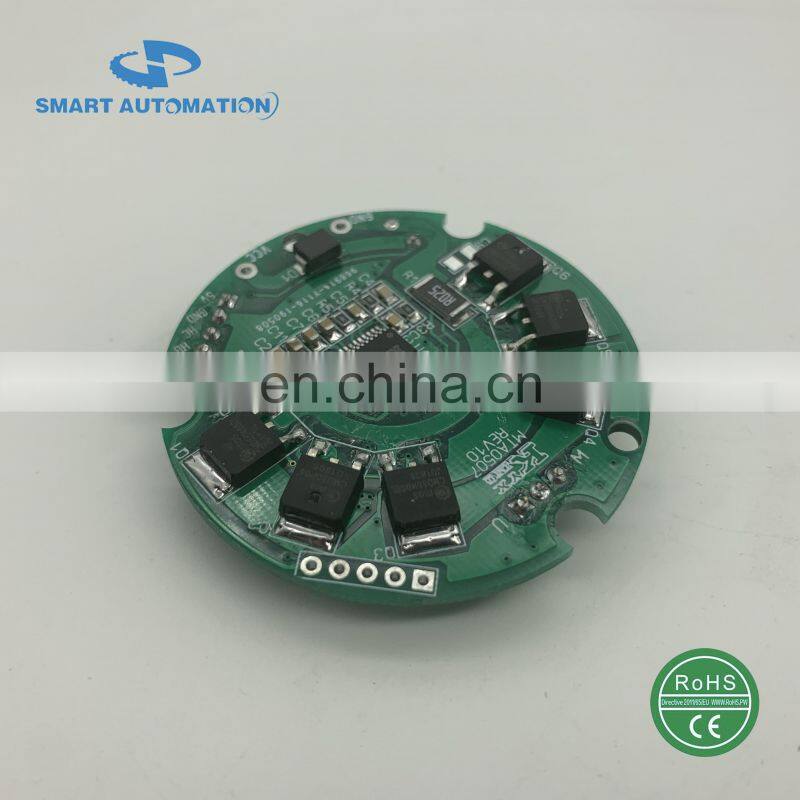

Controller
main applications of bldc motor |
|
| |
|
|
|
|
Industry | Content | Industry | Content |
Medical equipment | Hand-held surgical instruments | Aerospace Industry | Electric seat adjustment post |
|
| ||
Surgical robot | Flight recorders | ||
|
| ||
Micro-injection pump; Peristaltic pump | Autopilot | ||
|
| ||
Dialyzer | Air-conditioning system | ||
|
| ||
Automatic dosing system | Space Robot | ||
|
| ||
Radiation therapy equipment |
| ||
|
| ||
Diagnostic equipment and testing instruments |
| ||
Robot | Humanoid robot | Auto industry | Adjustable shock absorbers |
|
| ||
Service robots | Emission abatement system | ||
|
| ||
Teaching Robots | Electronic steering | ||
|
| ||
| Electronic tachometer
| ||
Industrial Automation | Precision Positioning System | Communications Equipment | Antenna System |
|
| ||
Handling System | Copier / printer / plotter | ||
|
| ||
transmission system | Recorder | ||
|
| ||
Industrial robots | Professional Camera | ||
Electronic / Semiconductor Equipment | Fast Feeders | Instrumentation | Microscope |
|
| ||
SMT Positioning device | Laser leveling system | ||
|
| ||
Lithography | Precision measuring instrument | ||
|
| ||
A wafer processing system | Meteorological Analyzer | ||
Power Tools | Professional power tool battery | Financial Business Machines | Reader |
|
| ||
Electric screwdriver | Dollar banknote handling equipment | ||
|
| ||
Pistols | ATM | ||
|
| ||
Pruning machine | Ticket Printer | ||
Household / Consumer Goods | Model Trains |
Security Technology | Motion detection system |
|
| ||
Game | Surveillance Cameras | ||
|
| ||
Golf Cart | Access Control System | ||
|
| ||
Household robots | Automatic doors | ||
