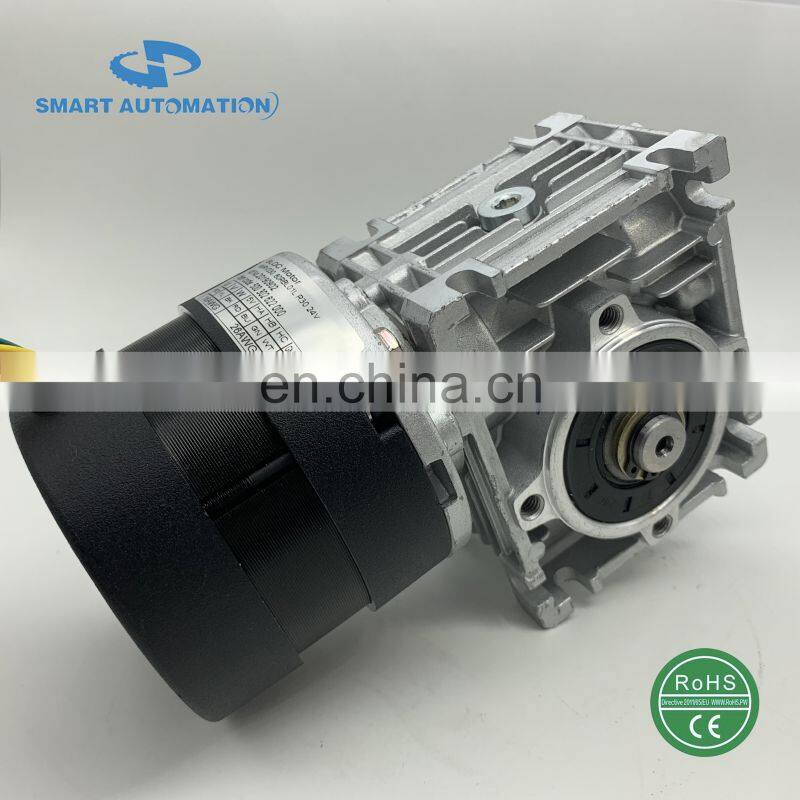

NMRV030.80BL NMRV040.80BL Series High Torque Brushless Dc Worm Gear Reducer BLDC Motor
- 100000 Piece / Pieces per Month
- SHANGHAI
- T/T Credit Card
-
80mm high torque brushless dc gear motor rated 30Nm with 24 volt controller integrated
-
big torque 24v bldc gear motor DC Brushless 10Nm 20Nm 30Nm 100w 200w with driver / controller integrated
-
57BL 12v 24v Brushless Dc Motor 50w 100w, with Driver / Controller Included, Integrated PWM Control
-
80RBL-90 + RV030 High torque brushless dc worm gear motor rated 48N.m 19rpm
-
nema 08 stepper motor, size 20mm stepper motor
-
good quality nema 17 stepper motor, step angle 1.8 degree or 0.9 Degree
Product Details
| Brand Name: | Smart Automation | Place of Origin: | Jiangsu, China | Model Number: | 80RBL-series |
| Type: | Micro Motor | Certification: | CE, ROHS | Torque: | customed |
| Usage: | Boat, Car, Electric Bicycle, Fan, Home Appliance | Construction: | Permanent Magnet | Efficiency: | IE 1 |
| Protect Feature: | Drip-proof | Continuous Current(A): | customed | Speed(RPM): | 500rpm-10000rpm |
| Commutation: | Brushless |
Product Description
Below are only typical models.
We make customed voltage, performance, shaft, mounting...etc
We make integrated controller, encoder, gearbox, brake...etc
80RBL SERIES
General
Item | Specification |
Winding type | Star |
Hall effect angle | 120° (electrical angle) |
Shaft run out | 0.025mm |
Radial play | 0.06mm@450g |
End play | 0.08mm@450g |
Max.radial force | 200N@10mm from the flange |
Max.axial force | 60N |
Insulation class | Class B |
Dielectric Strength | 500VDC for one minute |
Insulation resistance | 100MΩMin.500VDC |
Electric connection
NMRV030 SERIES
NMRV040 SERIES
NMRV050 SERIES
