Home > Electrical & Electronics > Electric Motor > DC Motor > 57BL 12v 24v Brushless Dc Motor 50w 100w, With Driver / Controller Included, Integrated PWM Control

57BL 12v 24v Brushless Dc Motor 50w 100w, With Driver / Controller Included, Integrated PWM Control

Name: 57BL 12v 24v Brushless Dc Motor 50w 100w, With Driver / Controller Included, Integrated PWM Control
Brand: Smart Automation
SKU: 166315893
Availability: InStock

57BL 12v 24v Brushless Dc Motor 50w 100w, With Driver / Controller Included, Integrated PWM Control thumbnail-1

57BL 12v 24v Brushless Dc Motor 50w 100w, With Driver / Controller Included, Integrated PWM Control thumbnail-2

57BL 12v 24v Brushless Dc Motor 50w 100w, With Driver / Controller Included, Integrated PWM Control thumbnail-3

57BL 12v 24v Brushless Dc Motor 50w 100w, With Driver / Controller Included, Integrated PWM Control photo-1

57BL 12v 24v Brushless Dc Motor 50w 100w, With Driver / Controller Included, Integrated PWM Control photo-2

57BL 12v 24v Brushless Dc Motor 50w 100w, With Driver / Controller Included, Integrated PWM Control photo-3

US$ 8 - 30 MOQ: 5 Pieces

Key Specifications

Get Latest Price

Brand Name:

Smart Automation

Place of Origin:

Jiangsu, China

Model Number:

57BL Series

Contact Supplier Request Quote Chat Now

Changzhou Smart Automation Motor Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name Smart Automation

Place of Origin Jiangsu, China

Model Number 57BL Series

Type Micro Motor

Certification CE, ROHS

Torque upto 0.5Nm without gearhead

Usage Car, Electric Bicycle, Fan, Home Appliance

Efficiency IE 1

Protect Feature Drip-proof

Continuous Current(A) customed

Speed(RPM) 3000rpm 4000rpm or customed

Commutation Brushless

Size 57mm 12V 24V 36V 48V 60V Brushless Dc Motors

BELOW ARE ONLY STANDARD MODELS

WE MAKE CUSTOMED VOLTAGE, WINDING, SHAFT, MOUNTING,

AND MOTOR ADDERS AS ENCODER, GEARBOX, BRAKE...ETC

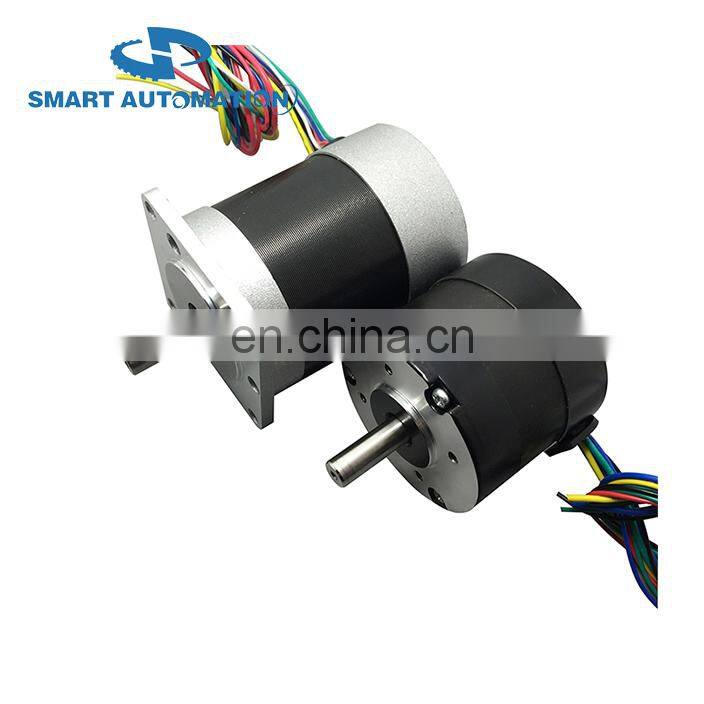

57BL Series Brushless Dc Motors

57HBL Series Brushless Dc Motors

Pictures:

Controller integrated version

57HBL-IE Series 57mm Controller Integrated Brushless Dc Motor

Technique Specification

Model		57HBL75-IE	57HBL95-IE	57HBL115-IE	57HBL135-IE
Number of phase		3
Number of pole		4 (Option for 8)
Rated Voltage	V	24v (Option for 12v 36v 48v)
No load speed	rpm	4000	4000	3500	3000
Rated torque	Nm	0.145	0.28	0.43	0.49
Rated Speed	rpm	3000	3000	2500	2200
Rated Current	A	2.5	5	6	6
Rated Power	W	45	88	113	113
Weight	Kg	0.55	0.85	1.15	1.55
Length	mm	75	95	115	135

Planetary gear motor data sheet

56JXE300K.57BL Series Planetary Gear Motor (rated torque upto 30Nm)

56JXE450K.57HBL Series Planetary Gear Motor(rated torque upto 45Nm)

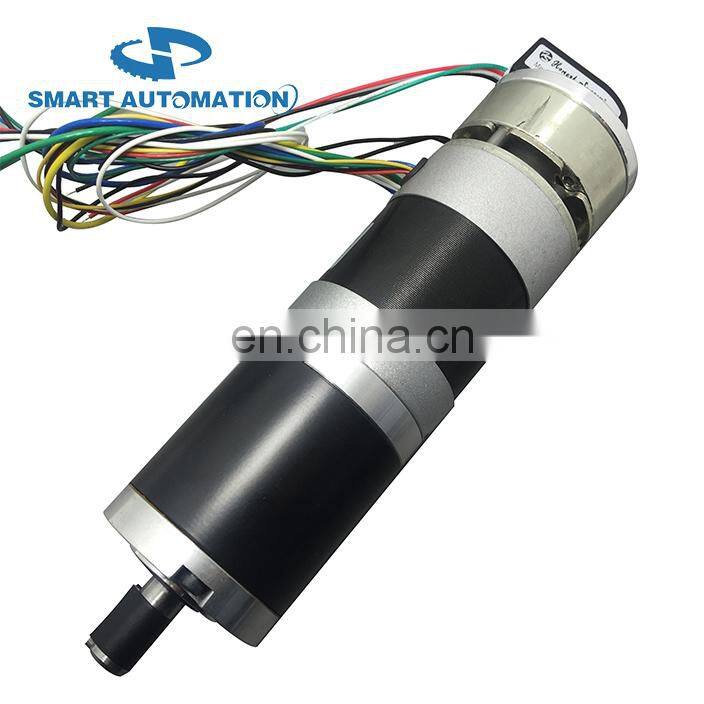

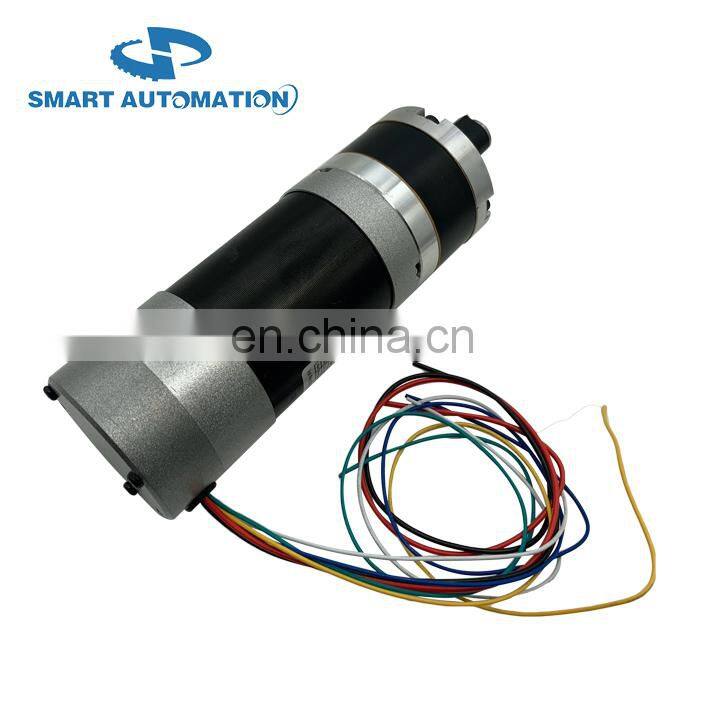

Planetary Geared Version

Brakes Encoder Integrated
