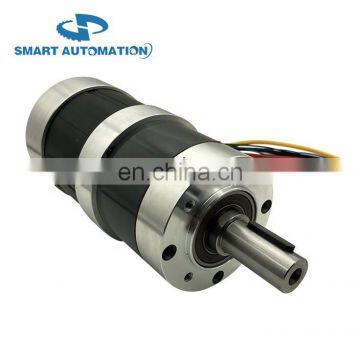

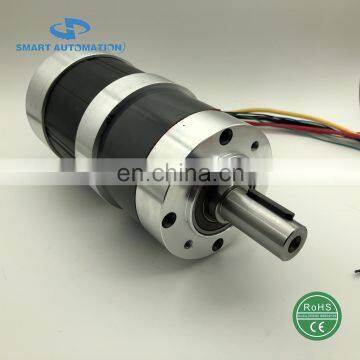

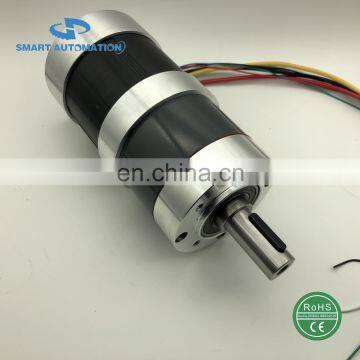

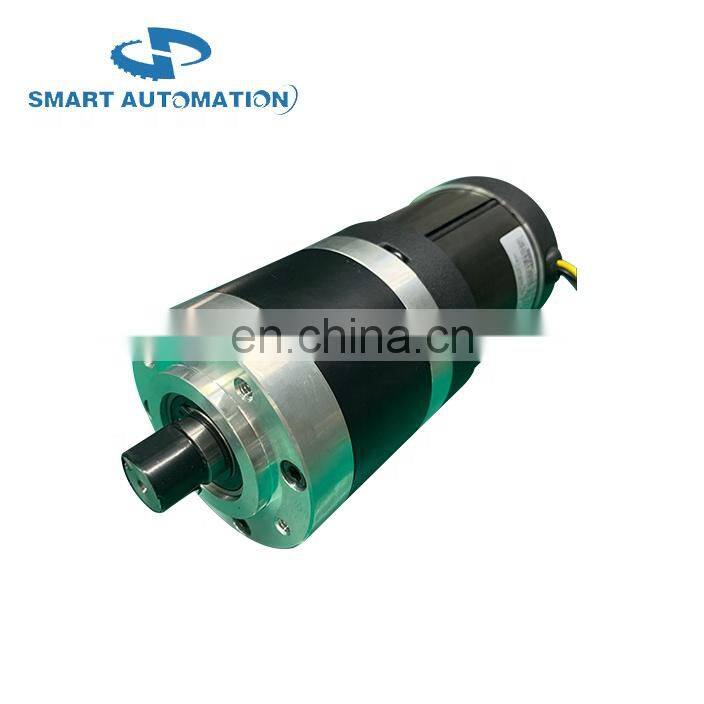

Help Center80PMB800K.80RBL Large Torque High Power Brushless Dc Gear Motor BLDC Rated Torque Upto 80Nm
Related Products
-
60JXE450K.80RBL Economical Planetary Gear BLDC Motors Rated Torque Upto 45Nm 100w 200w 300w 400wUS$ 30 - 80MOQ: 5 Pieces -
56JXE.57BL Cost Effective Planetary Gear Reducer BLDC Motors Upto 45Nm Rated TorqueUS$ 20 - 60MOQ: 5 Pieces
-
56JXE.57BL Option With Encoder Brake Controller Integrated Planetary Gear BLDC Motors Upto 45Nm Rated TorqueUS$ 22 - 60MOQ: 5 Pieces
-
NMRV030.80BL NMRV040.80BL Series High Torque Brushless Dc Worm Gear Reducer BLDC MotorUS$ 25 - 80MOQ: 5 Pieces
-
80mm High Torque Brushless dc Gear Motor Rated 30Nm With 24 Volt Controller IntegratedUS$ 15 - 60MOQ: 5 Pieces
Below are only typical models.
We make customed voltage, performance, shaft, mounting...etc

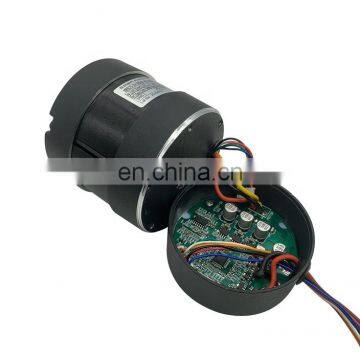

We make integrated controller, encoder, gearbox, brake...etc
80RBL Series Round Type 80mm Brushless Dc Motor
Electric connection
Technique Specification
|
Model |
80RBL-55 |
80RBL-60 |
80RBL-70 |
80RBL-80 |
80RBL-90 |
80RBL-100 |
80RBL-120 |
|
|
Number of phase |
3 |
|||||||
|
Number of pole |
4 (8) |
|||||||
|
Voltage |
V |
24v (Option for 12v 36v 48v 60v up to 230vdc) |
||||||
|
No load speed |
rpm |
4000 |
4000 |
4000 |
4000 |
4000 |
4000 |
4000 |
|
Rated torque |
Nm |
0.4 |
0.5 |
0.8 |
1.0 |
1.2 |
1.5 |
1.8 |
|
Rated Speed |
rpm |
3000 |
3000 |
3000 |
3000 |
3000 |
3000 |
3000 |
|
Rated Current |
A |
7 |
8 |
14 |
17 |
21 |
26 |
31 |
|
Rated Power |
W |
126 |
157 |
252 |
315 |
378 |
473 |
568 |
|
Weight |
Kg |
1.1 |
1.2 |
1.5 |
1.7 |
2.0 |
2.3 |
2.9 |
|
Length |
mm |
55 |
60 |
70 |
80 |
90 |
100 |
120 |

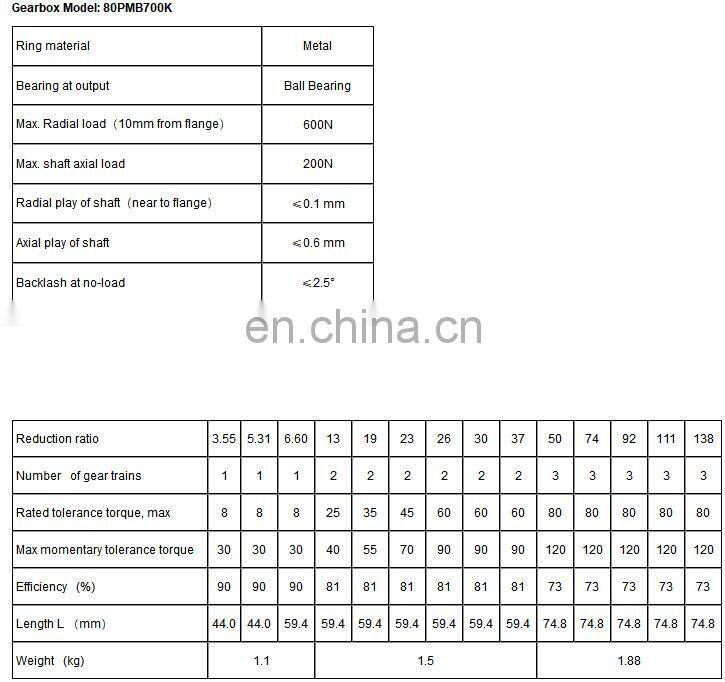

PLANETARY GEARED VERSION
