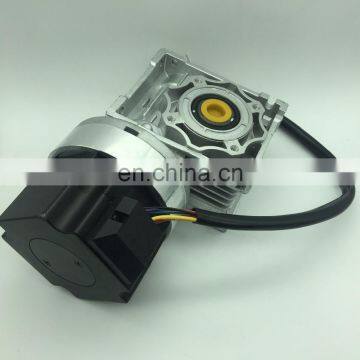

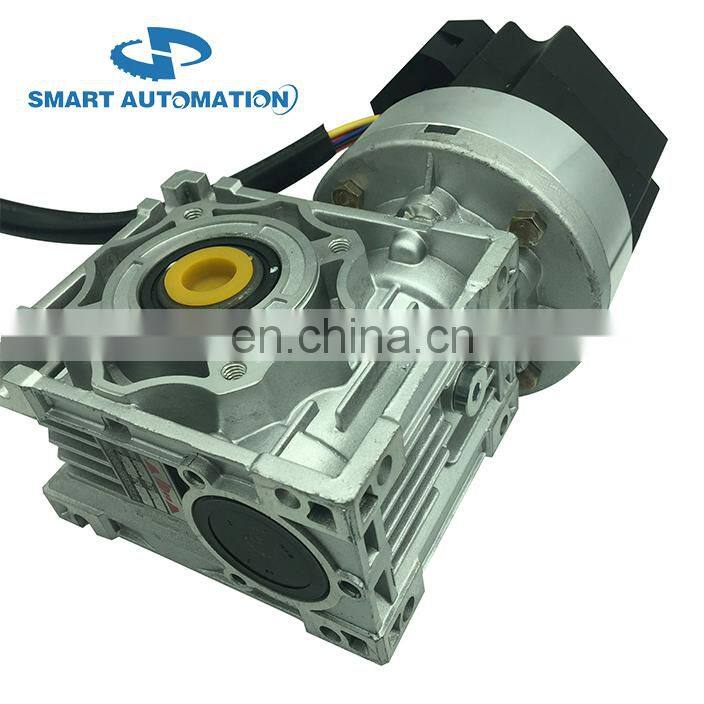

86BL High Power Brushless DC Worm Gear Motor, With NMRV050 Gearbox
US$ 60 - 100
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Brand Name:
Smart Automation
Place of Origin:
Jiangsu, China
Model Number:
86BL
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
56JXE450k.57BL Series Low Cost High Torque Brushless dc Planetary Gearmotor , Rated Torque Upto 45Nm,US$ 30 - 60MOQ: 5 Pieces -
12volt or 24 Volt Brushless Dc Gear Motor, BLDC Planetary Gearmotor 100w, 200w, 300wUS$ 20 - 60MOQ: 5 Pieces
-
56JXE450k.57BL 12v 24v Brushless dc 5nm 10nm 20nm 30nm BLDC Gear Motor, Low Price High TorqueUS$ 28 - 60MOQ: 5 Pieces
-
42JXE100K.42RBL Helical Gear Planetary Gearbox Brushless Dc Motor 25w 50w 70wUS$ 16 - 30MOQ: 5 Pieces
-
24 Volt or 12 Volt Brushless dc Planetary Gea Rmotor 20Nm 30Nm Otpion 75w 100w 150wUS$ 30 - 60MOQ: 5 Pieces
Brand Name
Smart Automation
Place of Origin
Jiangsu, China
Model Number
86BL
Type
Servo Motor
Certification
CE, ROHS
Torque
customed
Usage
Car, Electric Bicycle, Fan, Home Appliance
Construction
Series Wound
Efficiency
IE 1
Protect Feature
Drip-proof
Continuous Current(A)
customed
Speed(RPM)
customed
Commutation
Brushless
size 86mm Bldc Motor for gearbox Nmrv series
General specification:
|
Item |
Specification |
|
Winding type |
Delta |
|
Hall effect angle |
120 degree electrical angle |
|
Shaft run out |
0.05mm |
|
Radial play |
0.06mm@450g |
|
End play |
0.08mm@450g |
|
Max.radial force |
220N@20mm from the flange |
|
Max.axial force |
80N |
|
Insulation class |
Class B |
|
Dielectric Strength |
500VDC for one minute |
|
Insulation resistance |
100MΩMin.500VDC |
Electric connection:
|
Lead NO. |
Lead Color |
Lead Gauge |
Function |
DESCRIPTION |
|
|
1 |
Red |
UL1007/26AWG |
VCC |
SUPPLY VOLTAGE FOR HALL SENSORS |
|
|
2 |
Black |
GND |
GROUND FOR HALL SENSORS |
||
|
3 |
Yellow |
HALL A |
|
||
|
4 |
Green |
HALL B |
|
||
|
5 |
Blue |
HALL C |
|
||
|
6 |
Yellow |
UL1007/14AWG |
PHASE U |
|
|
|
7 |
Green |
PHASE V |
|
||
|
8 |
Blue |
PHASE W |
|
||
86BLS Series
86RBLS Series

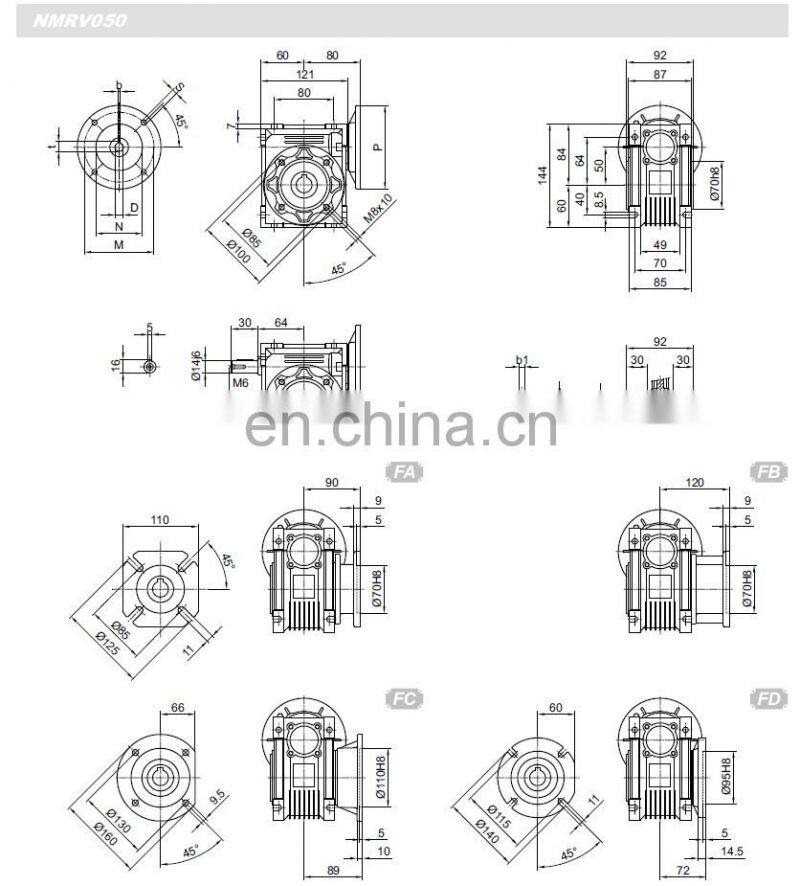

NMRV050 GEAR BOX
