24 Volt or 12 Volt Brushless dc Planetary Gea Rmotor 20Nm 30Nm Otpion 75w 100w 150w
US$ 30 - 60
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Brand Name:
Smart Automation
Place of Origin:
China
Model Number:
56JXE450k.57BL
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
36JXE30K.36BL Helical Gear Low Noise High Quality 12volt 24volt Brushless DC Gear Motor, Upto 60wUS$ 15 - 35MOQ: 5 Pieces -
42JXE100K.42BLS Bldc Gearmotor With Planetary Gear Reduction Helical Gear Low Noise Small Backlash Upto 100wUS$ 10 - 30MOQ: 5 Pieces
-
NMRV040.80BL BLDc Worm Gearhead Motor With Hall or Hall-less Option Dual or Hollow Shaft, Upto 400wUS$ 45 - 100MOQ: 5 Pieces
-
NMRV050.80BL High Power Brushless Dc Motor With Worm Gear Reducer Upto 60Nm, 12v 24v 36v 48v Upto 400WUS$ 45 - 100MOQ: 5 Pieces
-
82PN.86BL Large Torque BLDC Gear Motor, Upto 120Nm 700WUS$ 60 - 200MOQ: 5 Pieces
Brand Name
Smart Automation
Place of Origin
China
Model Number
56JXE450k.57BL
Type
Servo Motor
Certification
CE, ROHS
Torque
up to 45Nm
Usage
Car, Electric Bicycle, Fan, Home Appliance
Efficiency
IE 1
Protect Feature
Drip-proof
Continuous Current(A)
customed
Speed(RPM)
customed
Commutation
Brushless

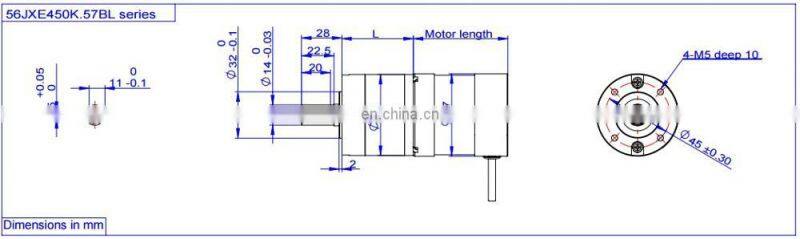

56JXE450K.57BL Series Brushless Dc Planetary Gear Motor Specification
( Rated Torque Upto 45N.m)
56JXE450K Gearbox General Specification:
*Higher Rated Torque Version Gearbox
|
Ring Materials |
Metal |
|
Bearings |
Ball Bearings |
|
Max. Radial Load (12mm from flange) |
400N |
|
Max. shaft Axial Load |
120N |
|
Radial Play of Shaft |
0.08mm max. |
|
Axial Play of Shaft |
0.4mm max. |
|
Backlash at No load |
1.5 degree max. |
|
Shaft Press Fit Force |
300N max. |

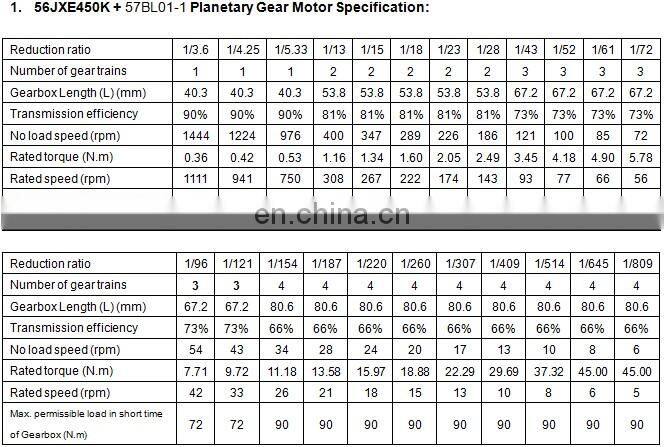

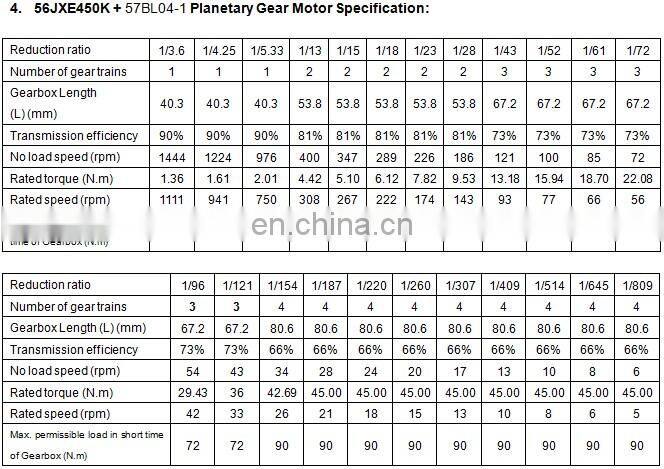

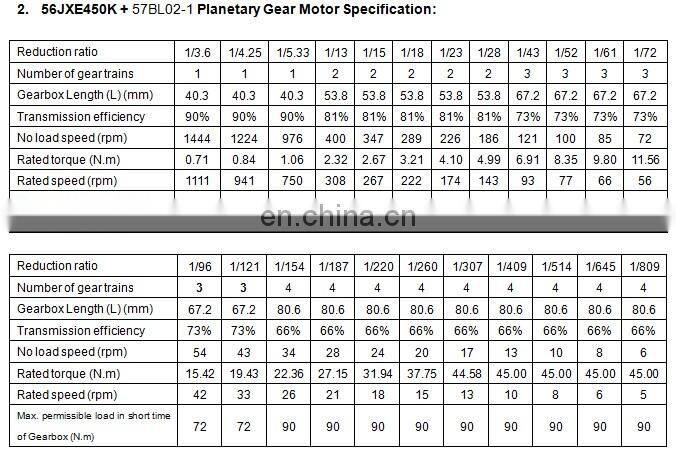

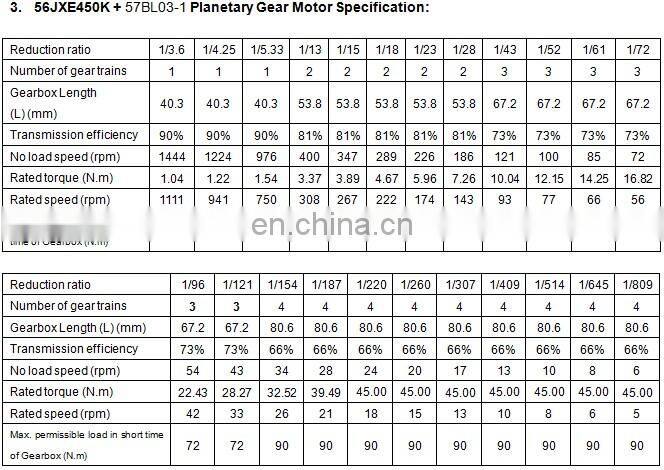

56JXE450K.57BL Series Planetary Gear Motor Specification:
56JXE450K.57BL Series Planetary Gear Motor Specification:

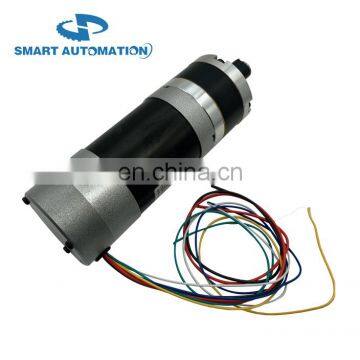

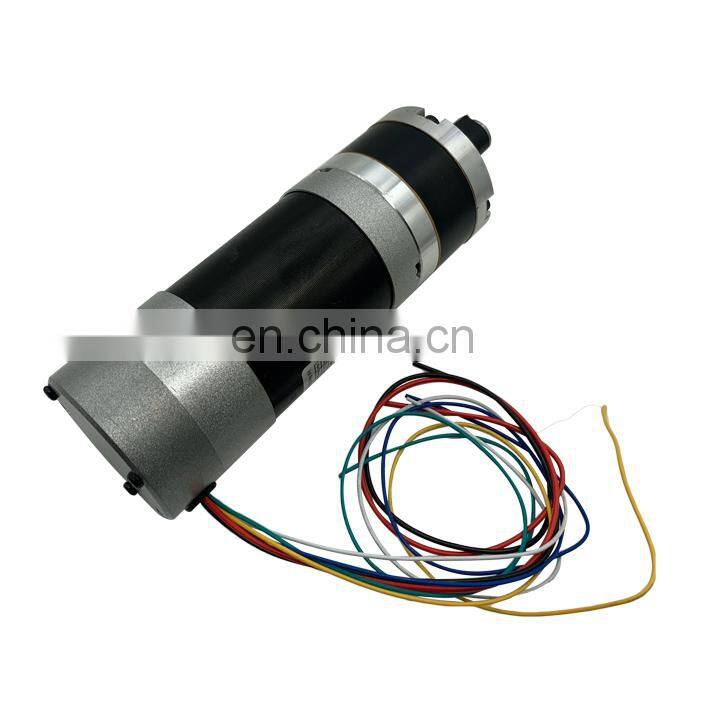

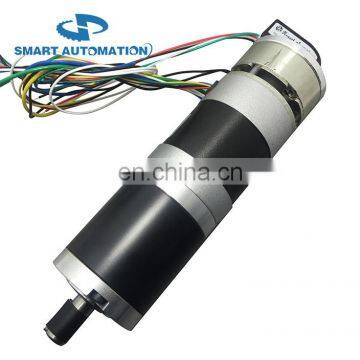

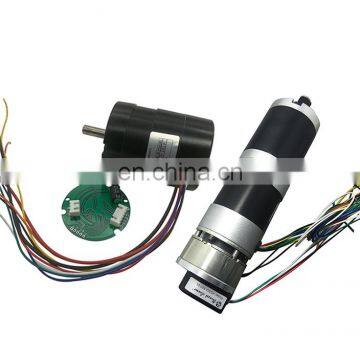

MOTOR PICTURE

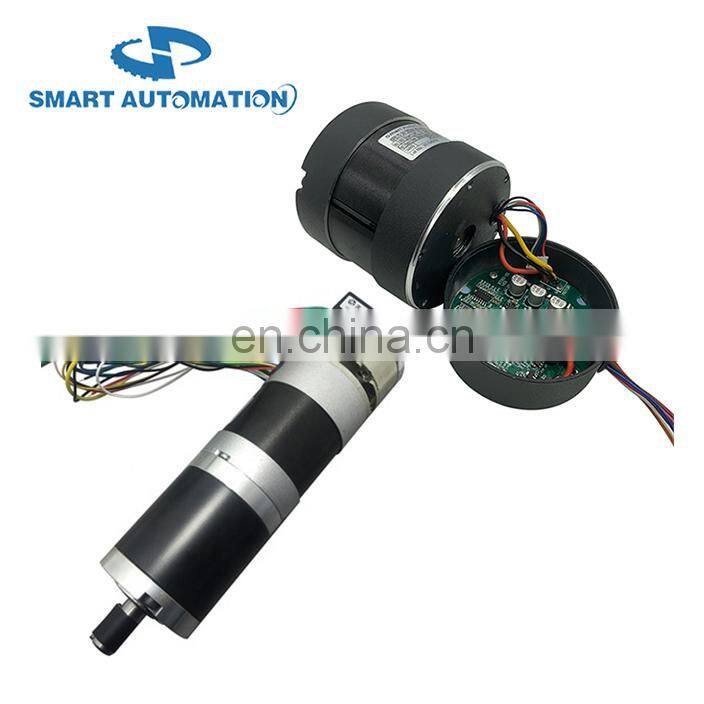

OPTION FOR BRAKE AND ENCODER
