Home > Electrical & Electronics > Electric Motor > DC Motor > 12volt or 24 Volt Brushless Dc Gear Motor, BLDC Planetary Gearmotor 100w, 200w, 300w

12volt or 24 Volt Brushless Dc Gear Motor, BLDC Planetary Gearmotor 100w, 200w, 300w

Name: 12volt or 24 Volt Brushless Dc Gear Motor, BLDC Planetary Gearmotor 100w, 200w, 300w
Brand: Smart Automation
SKU: 166315749
Availability: InStock

Changzhou Smart Automation Motor Manufacturing Co., Ltd.

12volt or 24 Volt Brushless Dc Gear Motor, BLDC Planetary Gearmotor 100w, 200w, 300w thumbnail-1

12volt or 24 Volt Brushless Dc Gear Motor, BLDC Planetary Gearmotor 100w, 200w, 300w thumbnail-2

12volt or 24 Volt Brushless Dc Gear Motor, BLDC Planetary Gearmotor 100w, 200w, 300w thumbnail-3

12volt or 24 Volt Brushless Dc Gear Motor, BLDC Planetary Gearmotor 100w, 200w, 300w thumbnail-4

12volt or 24 Volt Brushless Dc Gear Motor, BLDC Planetary Gearmotor 100w, 200w, 300w thumbnail-5

12volt or 24 Volt Brushless Dc Gear Motor, BLDC Planetary Gearmotor 100w, 200w, 300w thumbnail-6

12volt or 24 Volt Brushless Dc Gear Motor, BLDC Planetary Gearmotor 100w, 200w, 300w photo-1

12volt or 24 Volt Brushless Dc Gear Motor, BLDC Planetary Gearmotor 100w, 200w, 300w photo-2

12volt or 24 Volt Brushless Dc Gear Motor, BLDC Planetary Gearmotor 100w, 200w, 300w photo-3

12volt or 24 Volt Brushless Dc Gear Motor, BLDC Planetary Gearmotor 100w, 200w, 300w photo-4

12volt or 24 Volt Brushless Dc Gear Motor, BLDC Planetary Gearmotor 100w, 200w, 300w photo-5

12volt or 24 Volt Brushless Dc Gear Motor, BLDC Planetary Gearmotor 100w, 200w, 300w photo-6

US$ 20 - 60 MOQ: 5 Pieces

Key Specifications

Get Latest Price

Brand Name:

Smart Automation

Place of Origin:

Jiangsu, China

Model Number:

60JXE450K.80RBL

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Brand Name Smart Automation

Place of Origin Jiangsu, China

Model Number 60JXE450K.80RBL

Type Servo Motor

Certification CE, ROHS

Torque Up to 45N.m

Usage Car, Electric Bicycle, Fan, Home Appliance

Construction Series Wound

Efficiency IE 1

Protect Feature Drip-proof

Continuous Current(A) customed

Speed(RPM) customed

Commutation Brushless

80RBL Series DC Motor General Specification:

Item	Specification
Winding type	Delta
Hall effect angle	120degree electrical angle
Shaft run out	0.05mm
Radial play	0.02mm@450g
End play	0.08mm@450g
Max.radial force	200N@10mm from the flange
Max.axial force	80N
Insulation class	Class B
Dielectric Strength	500VDC for one minute
Insulation resistance	100MΩMin.500VDC

80RBL Series DC Motor Electric Connection:

80RBL Series DC Motor Technique Specification:

Model		80RBL-60	80RBL-80	80RBL-100	80RBL-115	80RBL-135
Voltage	V		12/24/36/48
No load speed	rpm	3800	3800	3800	3800	3800
Rated torque	Nm	0.4	0.8	1.2	1.4	1.8
Rated Speed	rpm	3000	3000	3000	3000	3000
Torque(max)	Nm	1.2	2.4	3.6	4.0	5.0
Output Power	W	126	252	378	442	568
Weight	Kg	1.2	1.7	2.3	2.5	2.8
Length	mm	60	80	100	115	135

*We can make customized Voltage, Performance

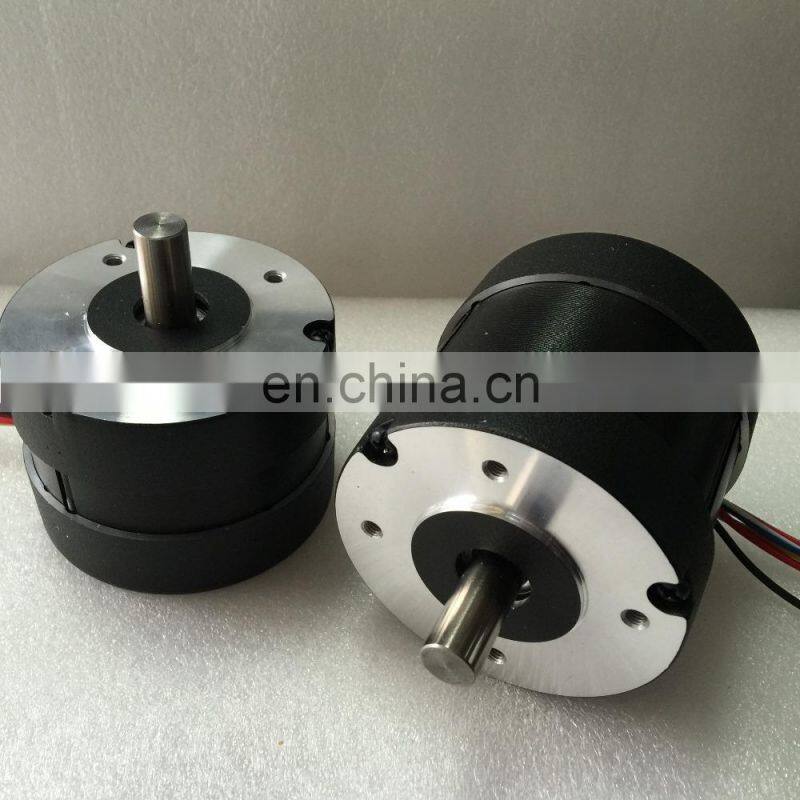

( Motor picture without gearhead)

60JXE450K Gearbox General Specification:

*Higher Rated Torque Version Gearbox

Ring Materials	Metal
Bearings	Ball Bearings
Max. Radial Load (12mm from flange)	400N
Max. shaft Axial Load	120N
Radial Play of Shaft	0.08mm max.
Axial Play of Shaft	0.4mm max.
Backlash at No load	1.5 degree max.
Shaft Press Fit Force	300N max.

60JXE450K.80RBL Series Planetary Gear Motor Drawing:

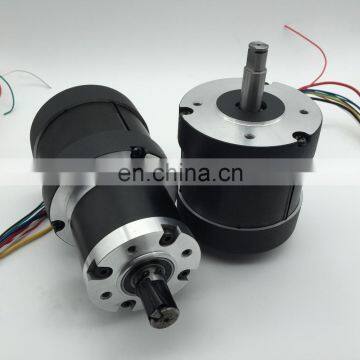

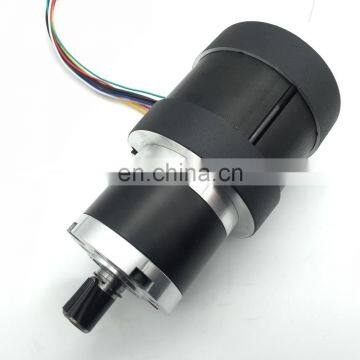

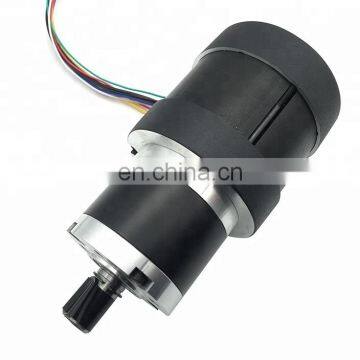

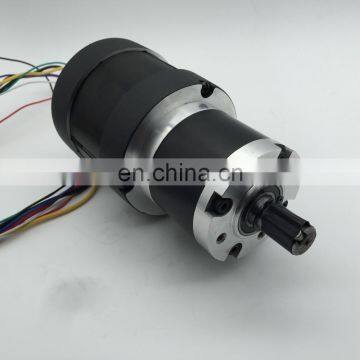

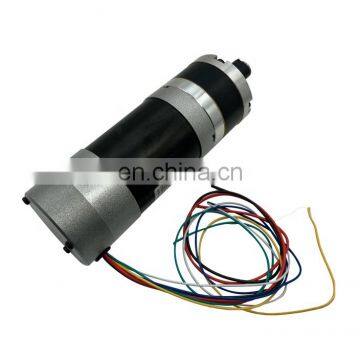

60JXE450K.80RBL Series Planetary Gear Motor Pictures:

(WITH or WITHOUT BRAKE)

60JXE450K.80RBL Series Planetary Gear Motor Specification:

1.60JXE450K + 80RBL-60 Planetary Gear Motor Specification

2.60JXE450K + 80RBL-80 Planetary Gear Motor Specification:
