High Torque DC Planetary Gear Motor With Planet Gearhead Power 10w Upto 500w

Changzhou Smart Automation Motor Manufacturing Co., Ltd.
High Torque DC Planetary Gear Motor With Planet Gearhead Power 10w Upto 500w thumbnail-1
High Torque DC Planetary Gear Motor With Planet Gearhead Power 10w Upto 500w thumbnail-2
High Torque DC Planetary Gear Motor With Planet Gearhead Power 10w Upto 500w thumbnail-3
High Torque DC Planetary Gear Motor With Planet Gearhead Power 10w Upto 500w thumbnail-4
High Torque DC Planetary Gear Motor With Planet Gearhead Power 10w Upto 500w thumbnail-5
High Torque DC Planetary Gear Motor With Planet Gearhead Power 10w Upto 500w thumbnail-6
High Torque DC Planetary Gear Motor With Planet Gearhead Power 10w Upto 500w thumbnail-7
High Torque DC Planetary Gear Motor With Planet Gearhead Power 10w Upto 500w photo-1
High Torque DC Planetary Gear Motor With Planet Gearhead Power 10w Upto 500w photo-2
High Torque DC Planetary Gear Motor With Planet Gearhead Power 10w Upto 500w photo-3
High Torque DC Planetary Gear Motor With Planet Gearhead Power 10w Upto 500w photo-4
High Torque DC Planetary Gear Motor With Planet Gearhead Power 10w Upto 500w photo-5
High Torque DC Planetary Gear Motor With Planet Gearhead Power 10w Upto 500w photo-6
High Torque DC Planetary Gear Motor With Planet Gearhead Power 10w Upto 500w photo-7
US$ 20 - 80 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Brand Name:
Smart Automation
Place of Origin:
Jiangsu, China
Model Number:
PLG.ZYT
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Smart Automation
Place of Origin Jiangsu, China
Model Number PLG.ZYT
Type Micro Motor
Certification CE, ROHS
Torque 1N.m~120N.m
Usage Boat, Car, Fan, Home Appliance
Construction Permanent Magnet
Efficiency IE 1
Protect Feature Drip-proof
Voltage(V) 12v 24v 36v 48v
Output Power 10w~500w
Continuous Current(A) customed
Speed(RPM) 1rpm~3000rpm
Commutation Brush



 1. PMDC Planetary Gear Motor

Shaft HRC 36~40 ; NMB ball bearing

Hard ferrit magnet, 2- poles

Protection class IP 50 54 56

Insulation class: F, operating temperature range:-40°C~+140°C

CE and ROHS certified

 standard voltage, 12V, 24V, 36V, 40V, 48v, 60V





MOTOR O.D 30mm 38mm 42mm, 52mm, 63mm, 76mm 80mm 90mm

GEAR MOTOR SPEED 1rpm upto 2000rpm
GEAR MOTOR TORQUE 0.5N.m upto 120N.m

MOTOR POWER 5w upto 500w

MOTOR TYPE permanent magent brushed type (brushless available)

OPTION encoder, brakes assembly





Below are only some typical models.

Pls contact us for more detailed information and customized motors.





52JXE300K.52ZYT SERIES

High Torque DC Planetary Gear Motor with Planet Gearhead Power 10w upto 500w





High Torque DC Planetary Gear Motor with Planet Gearhead Power 10w upto 500w





56JXE300K.63ZYT SERIES

High Torque DC Planetary Gear Motor with Planet Gearhead Power 10w upto 500w



High Torque DC Planetary Gear Motor with Planet Gearhead Power 10w upto 500w









60JXE450K.76ZYT SERIES



High Torque DC Planetary Gear Motor with Planet Gearhead Power 10w upto 500w



 High Torque DC Planetary Gear Motor with Planet Gearhead Power 10w upto 500w

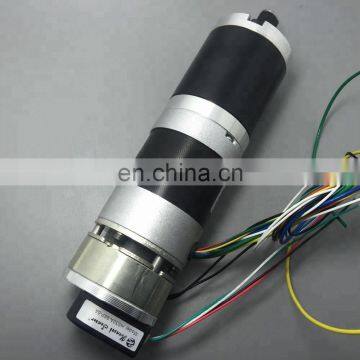

Planetary gear motor with brake OR encoder







 High Torque DC Planetary Gear Motor with Planet Gearhead Power 10w upto 500w

















 2.Brushless DC Planetary Gear Motor





42BL Series

High Torque DC Planetary Gear Motor with Planet Gearhead Power 10w upto 500wHigh Torque DC Planetary Gear Motor with Planet Gearhead Power 10w upto 500w





57BL Series

High Torque DC Planetary Gear Motor with Planet Gearhead Power 10w upto 500w





High Torque DC Planetary Gear Motor with Planet Gearhead Power 10w upto 500w



High Torque DC Planetary Gear Motor with Planet Gearhead Power 10w upto 500w







 High Torque DC Planetary Gear Motor with Planet Gearhead Power 10w upto 500w















80BL Series

High Torque DC Planetary Gear Motor with Planet Gearhead Power 10w upto 500w

High Torque DC Planetary Gear Motor with Planet Gearhead Power 10w upto 500w
