Home > Electrical & Electronics > Electric Motor > DC Motor > NMRV30.R80-80ZYT03 Right Angle dc Worm Gear Motor 12V 40Nm 30rpm
NMRV30.R80-80ZYT03 Right Angle dc Worm Gear Motor 12V 40Nm 30rpm
US$ 50 - 80
MOQ: 3 Pieces
Key Specifications
Get Latest Price
Brand Name:
Smart automation
Place of Origin:
Jiangsu, China
Model Number:
NMRV30.R80-80ZYT03
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
63zyt High Torque 12V 24V Dc Planetary Geared Motor, Upto 30NmUS$ 25 - 80MOQ: 5 Pieces -
High Torque Dia63mm 24 Volt dc Planetary Gear Motor, Rated 24v 45Nm 16rpmUS$ 33 - 59MOQ: 5 Pieces
-
62PLG.80ZYT02A 24v Planetary Gear dc Motor, Option for Electric Brake, Rated Power 270wUS$ 30 - 50MOQ: 5 Pieces
-
45JX100K 12v / 24v DC BRUSH PLANETARY GEAR MOTORUS$ 25 - 50MOQ: 5 Pieces
-
42PLG.42ZYT04B O.D42mm High Torque dc Planetary Gear Motor, Rated 100rpm, 3.5NmUS$ 20 - 50MOQ: 5 Pieces
Brand Name
Smart automation
Place of Origin
Jiangsu, China
Model Number
NMRV30.R80-80ZYT03
Type
Gear Motor
Certification
CE, ROHS
Torque
40Nm
Usage
Boat, Car, Electric Bicycle, Fan, Home Appliance
Construction
Permanent Magnet
Efficiency
IE 1
Protect Feature
Drip-proof
Voltage(V)
12v
Speed(RPM)
30rpm
Commutation
Brush
Brushed pmdc motor 80ZYT03-2400rpm 12v
Motor technical parameter
l Shaft HRC 36~40 ; NMB ball bearing
l Hard ferrite magnet, 2- poles
l Protection class IP 50
l Insulation class: F, operating temperature range:-40℃~+140℃
l CE and ROHS certified
80ZYT03 DC MOTOR
Rated 12v,
Rated speed, 2400rpm
Rated torque, 1.10Nm

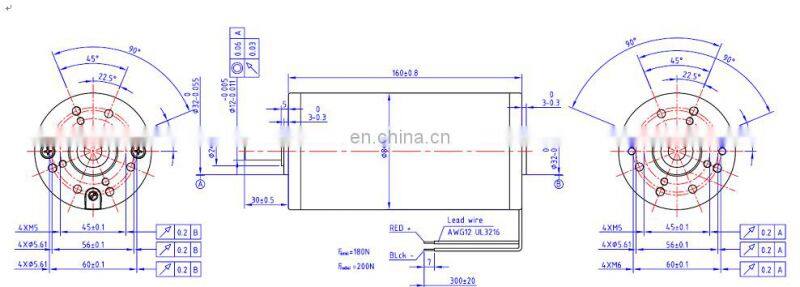

Dimension ( mm )

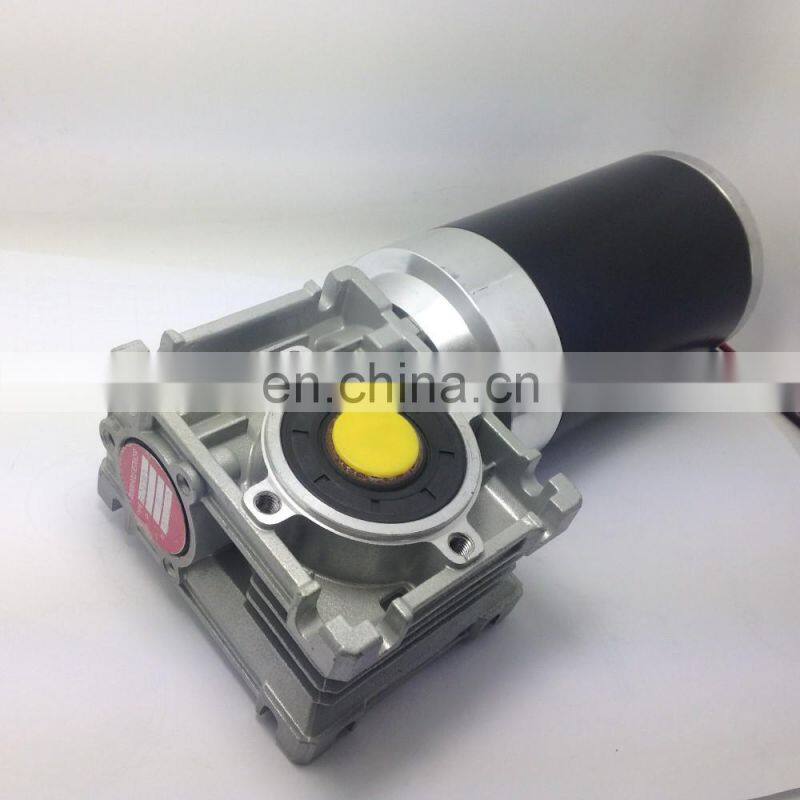

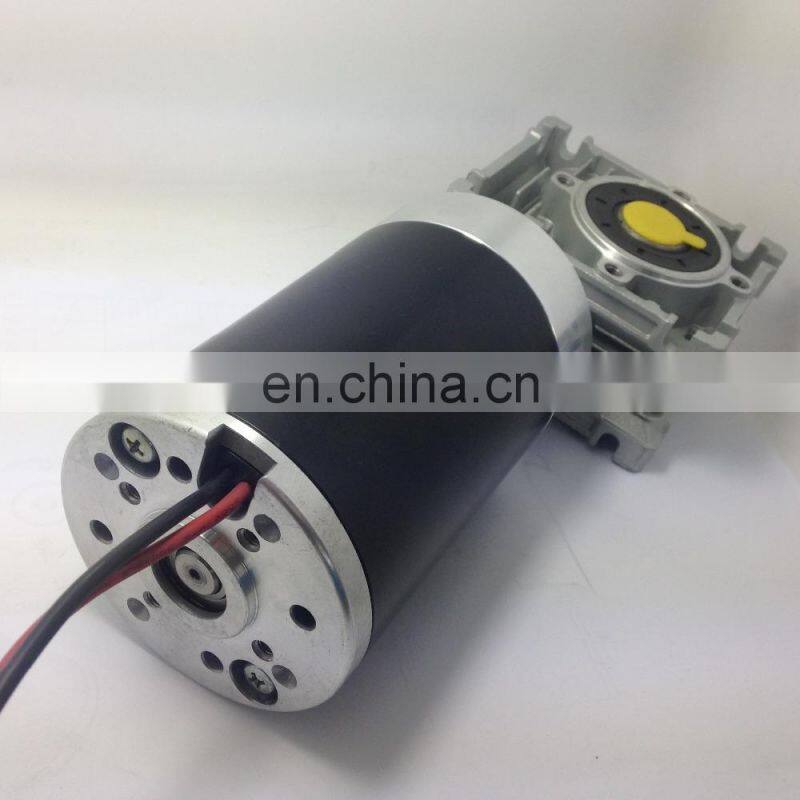

Brushed pmdc motor 80ZYT03-2400rpm + Right angle worm Gearbox ModelNMRV30
Gear motor PN. NMRV30.R80-80ZYT03 12VDC
Reduction ratio 1:80
Rated 12Vdc
30 RPM speed at output shaft Min. 40Nm nominal output shaft torque
