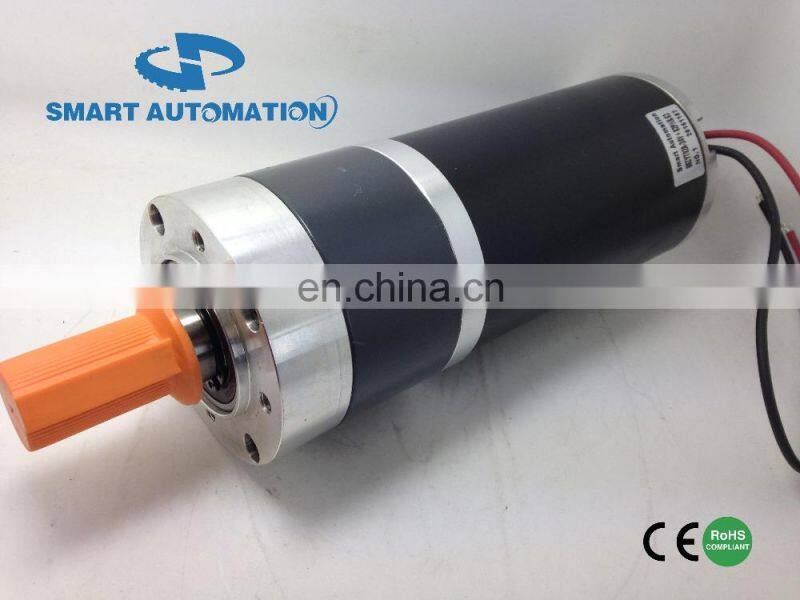

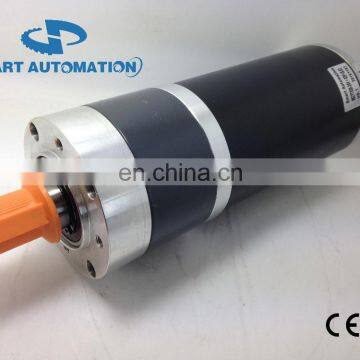

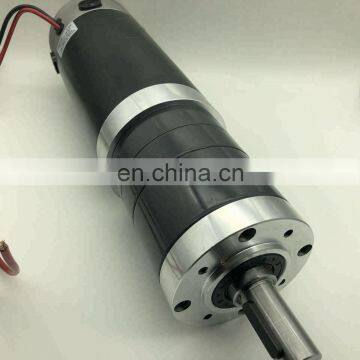

82PLG.80ZYT large torque planetary gear dc motor, rated torque upto 120N.m
- 5000 Piece / Pieces per Month
- Shanghai
- T/T Credit Card
- 82plg.90zyt SERIES heavy duty large torque geared dc motor, Helical gears High Torque upto 120Nm
- NMRV.90ZYT Large Torque Big Power DC Electric Worm Gear Motor
- OD52mm 24V PM DC Planetary Gear Motor for Golf Trolley
- Automatic dc door motor used for sliding door opening and gate lifting
- 80ZYT Series big torque dc worm gearbox motor , with torque arm
- Godd price high torque planetary gear dc motor, 250w motor, 12v 24v torque 20Nm to 30Nm
Product Details
Brand Name: | SMARTAUTOMATION | Place of Origin: | Jiangsu, China | Model Number: | 82PLG3.6+80ZYT |
Type: | Gear Motor | Certification: | CE, ROHS | Usage: | Boat, Car, Electric Bicycle, Fan, Home Appliance, Other |
Construction: | Permanent Magnet | Efficiency: | IE 1 | Protect Feature: | Drip-proof |
Commutation: | Brush |
Product Description
82PLG.80ZYT SERIES LARGE TORQUE VERSION PLANETARY GEAR MOTOR (with rated torque up to 120N.m)

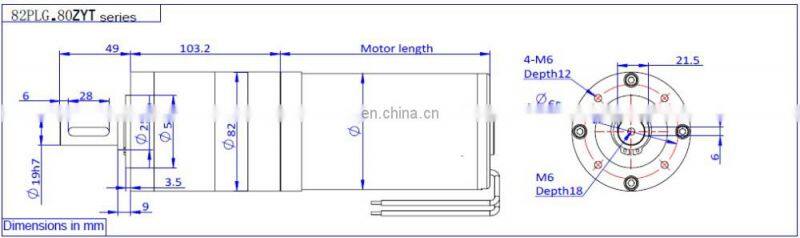

82PLG.80ZYT SERIES Gear Motor Drawing:
80ZYT Series Motor Specification:
Ball bearing Hard ferrite magnet, 2- poles Protection class IP 40 Insulation class: B CE and ROHS certified
Model | Rated voltage V | No load speed rpm | No load current A | Rated speed rpm | Rated torque N.m | Output power W | Rated current A | Stall torque N.m | Stall current A | Motor Length mm |
80ZYT01A-12V | 12 | 3600 | 1.25 | 2900 | 0.6 | 182 | 19.2 | 3.0
| 91.2 | 120 |
80ZYT01A-24V | 24 | 3600 | 0.72 | 2900 | 0.6 | 182 | 9.5 | 3.0 | 44 | 120 |
80ZYT02A-12V | 12 | 3600 | 1.35 | 2900 | 0.8 | 243 | 29 | 4.5 | 160 | 140 |
80ZYT02A-24V | 24 | 3600 | 0.85 | 2900 | 0.8 | 243 | 14 | 4.5 | 78 | 140 |
80ZYT03A-12V | 12 | 3600 | 1.5 | 3000 | 1.0 | 314 | 36.5 | 6.1 | 216 | 160 |
80ZYT03A-24V | 24 | 3600 | 1.0 | 3000 | 1.0 | 314 | 18.0 | 6.1 | 106 | 160 |
We provide customized voltage, winding, shaft, mounting, and lead configurations
Options for EMI/RFI suppression circuit; Thermal protection, Electrical brake, Optical encoder
82PLG Planetary Gearbox Specification:
*Helical gears at first stage
Reduction ratio | 1/3.65 | 1/5.36 | 1/6.55 | 1/8.63 | 1/13.5 | 1/18.9 | 1/24.6 | 1/28 | 1/33.9 | 1/44.7 | 1/67 | 1/81.1 | 1/91.3 | 1/102.9 | |
Number of gear trains | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | |
Gearbox Length (L) (mm) | 58.3 | 58.3 | 58.3 | 58.3 | 80.5 | 80.5 | 80.5 | 80.5 | 80.5 | 80.5 | 80.5 | 103.2 | 103.2 | 103.2 | |
Transmission efficiency | 90% | 90% | 90% | 90% | 81% | 81% | 81% | 81% | 81% | 81% | 81% | 73% | 73% | 73% | |
Max. rated transmission torque (N.m) | 20 | 20 | 20 | 20 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 120 | 120 | 120 | |
Max. permissible load in short time (N.m) | 40 | 40 | 40 | 40 | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 240 | 240 | 240 | |
Reduction ratio | 1/119 | 1/127.7 | 1/145.4 | 1/165.6 | 1/191.6 | 1/231.6 | 1/301.7 | 1/393 |
| ||||||
Number of gear trains | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| ||||||
Gearbox Length (L) (mm) | 103.2 | 103.2 | 103.2 | 103.2 | 103.2 | 103.2 | 103.2 | 103.2 |
| ||||||
Transmission efficiency | 73% | 73% | 73% | 73% | 73% | 73% | 73% | 73% |
| ||||||
Max. rated transmission torque (N.m) | 120 | 120 | 120 | 120 | 120 | 120 | 120 | 120 |
| ||||||
Max. permissible load in short time (N.m) | 240 | 240 | 240 | 240 | 240 | 240 | 240 | 240 |
|
