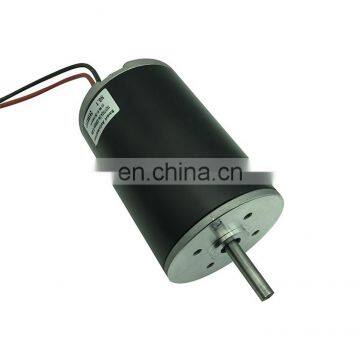

Permanent Magnet Brush DC Motor 76ZYN(NdFeB Magnet)Series
Motor Specifications:
Bearing: High Quality Ball Bearing
Magnet: NdFeB Magnet, 2- Poles
Protection Class: IP54
Insulation Class: Class F / Working Temperature: -40℃~+140℃
Certifications: CE and ROHS
Options:
Customized Voltage, Winding, Shaft, Mounting, and Lead Configurations
EMI/RFI Suppression Circuit, Thermal Protection, High Temperature Class H Insulation
Motor Main Characteristics:
|
Model |
Unit |
76ZYN01A |
76ZYN02A |
76ZYN03A |
|
Rated Voltage |
VDC |
24v (option for 12v up to 48vdc) |
||
|
Rated Speed |
Rpm |
3000 |
3000 |
3000 |
|
Rated Torque |
N.m |
0.5 |
0.8 |
1.2 |
|
Rated Current |
A(24V)) |
6.5 |
13.0 |
20.0 |
|
No Load Speed |
Rpm |
3600 |
3600 |
3600 |
|
No Load Current |
A(24V) |
1.2 |
1.5 |
2.0 |
|
Output Power |
W |
158 |
250 |
375 |
|
Weight |
Kg |
1.7 |
2.2 |
2.7 |
|
Motor Length |
Mm |
98 |
118 |
138 |

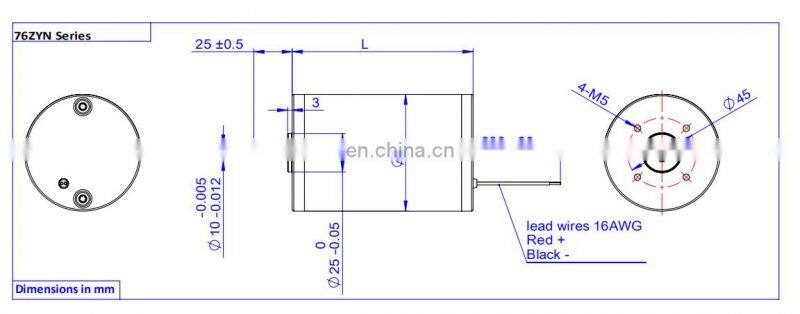

Drawing
