Home > Electrical & Electronics > Electric Motor > DC Motor > 42ZYT04A O.D 42mm High Torque Carbon Brush Dc Motor 12v 24v 25w 3350rpm 70mNm

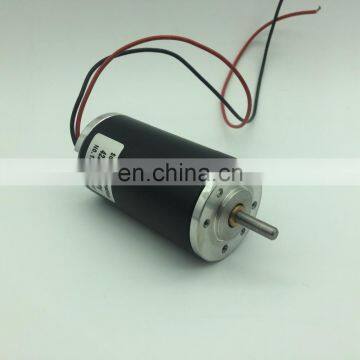

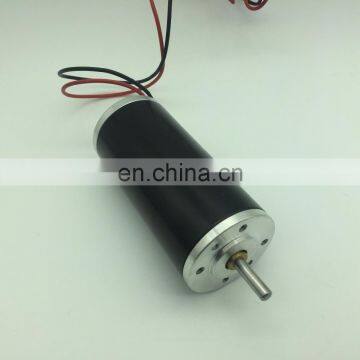

42ZYT04A O.D 42mm High Torque Carbon Brush Dc Motor 12v 24v 25w 3350rpm 70mNm
US$ 5 - 15
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Brand Name:
Smart Automation
Place of Origin:
Jiangsu, China
Model Number:
42ZYT04A
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
O.D80mm Electric Dc Motor Rated 2600rpm 0.6N.m 160w CE/ROHSUS$ 12 - 30MOQ: 5 Pieces -
80mm Equivalent to GR80 Dc Motors 100w 200w 300w China ManufacturerUS$ 15 - 30MOQ: 5 Pieces
-
80ZYT01C 12v 24v Brushed DC Motor High Power, High Speed Rated 6000rpm to 7000rpm, 0.6N.m, Power 300w~500wUS$ 15 - 30MOQ: 5 Pieces
-
76ZYT02 Series Hard Ferrit Pmdc Motor O.D 76mm 0.4Nm 2600rpmUS$ 10 - 30MOQ: 5 Pieces
-
O.D 54mm Brushed 24v Dc Motor Equivalent 24 Volt PITTMAN Servo Motors, OPTION 12v Upto 60vUS$ 6 - 20MOQ: 100 Pieces
Brand Name
Smart Automation
Place of Origin
Jiangsu, China
Model Number
42ZYT04A
Type
Micro Motor
Certification
CE, ROHS
Torque
70mNm
Usage
Car, Electric Bicycle, Fan, Home Appliance
Construction
Permanent Magnet
Efficiency
IE 1
Protect Feature
Drip-proof
Voltage(V)
12v, 24v~40v
Output Power
customed
Continuous Current(A)
customed
Speed(RPM)
3350rpm
Commutation
Brush
Motor technical parameter:
Shaft HRC 36~40 ; NMB ball bearing
Hard ferrit magnet, 2- poles
Protection class IP 50
Insulation class: F, operating temperature range:-40°C~+140°C
CE and ROHS certified
Options:
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection
High temperature Class H insulation
Model | 42ZYT04A | |||
Rated voltage | V dc | 12 | 24 | 40 |
Continuous rated speed | rpm | 3350 | 3350 | 3350 |
Continuous rated torque | mN.m | 70 | 70 | 70 |
Continuous current | A | 2.8 | 1.4 | 0.85 |
Starting torque | mN.m | 400 | 400 | 400 |
Starting current | A | 15.1 | 7.5 | 4.62 |
No load speed | rpm | 4000 | 4000 | 4000 |
No load current | A | 0.35 | 0.25 | 0.15 |
Demagnetization current | A | 24 | 10.5 | 6.3 |
Rotor inertia | Gcm2 | 193 | 193 | 193 |
Weight of motor | g | 600 | 600 | 600 |
Motor length | Mm | 90 | 90 | 90 |
