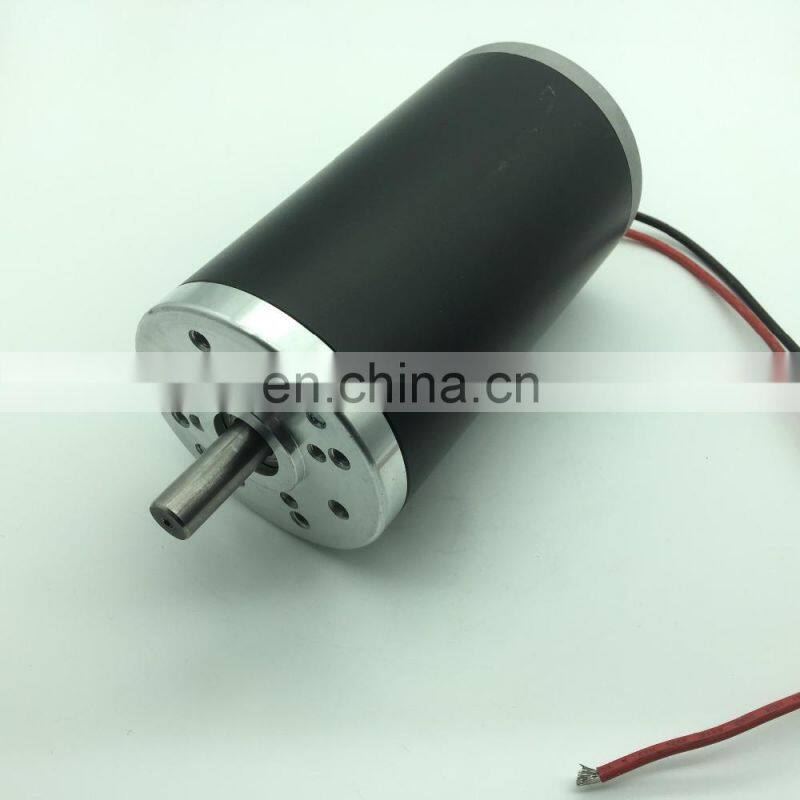

O.D80mm Electric Dc Motor Rated 2600rpm 0.6N.m 160w CE/ROHS
US$ 12 - 30
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Brand Name:
Smart Automation
Place of Origin:
Jiangsu, China
Model Number:
80ZYT01
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
80mm Equivalent to GR80 Dc Motors 100w 200w 300w China ManufacturerUS$ 15 - 30MOQ: 5 Pieces -
80ZYT01C 12v 24v Brushed DC Motor High Power, High Speed Rated 6000rpm to 7000rpm, 0.6N.m, Power 300w~500wUS$ 15 - 30MOQ: 5 Pieces
-
76ZYT02 Series Hard Ferrit Pmdc Motor O.D 76mm 0.4Nm 2600rpmUS$ 10 - 30MOQ: 5 Pieces
-
O.D 54mm Brushed 24v Dc Motor Equivalent 24 Volt PITTMAN Servo Motors, OPTION 12v Upto 60vUS$ 6 - 20MOQ: 100 Pieces
-
42ZYT02A 12v 24v dc Motor 57mNm 3100rpm 20wUS$ 6 - 15MOQ: 5 Pieces
Brand Name
Smart Automation
Place of Origin
Jiangsu, China
Model Number
80ZYT01
Certification
CE, ROHS
Torque
0.6N.m
Usage
Car, Electric Bicycle, Fan, Home Appliance
Construction
Permanent Magnet
Efficiency
IE 1
Protect Feature
Drip-proof
Voltage(V)
12v, 24v~48V
Output Power
160w
Continuous Current(A)
customed
Speed(RPM)
2000~3000rpm
Commutation
Brush
Motor technical parameter:
Shaft HRC 36~40 ; NMB ball bearing
Hard ferrit magnet, 2- poles
Protection class IP 50
Insulation class: F, operating temperature range:-40°C~+140°C
CE and ROHS certified
Options:
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection
High temperature Class H insulation

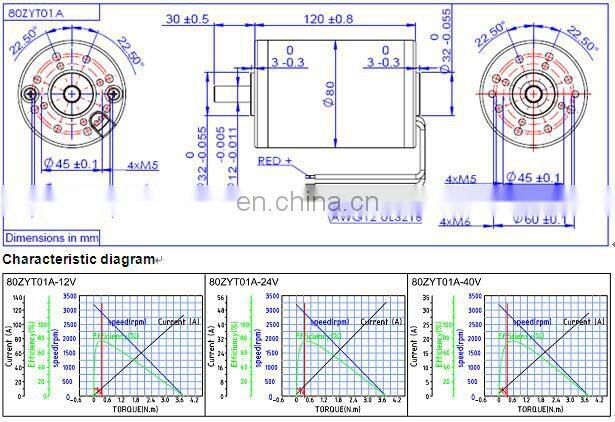

Model | 80ZYT01A | |||
Rated voltage | V dc | 12 | 24 | 40 |
Continuous rated speed | rpm | 2600 | 2600 | 2600 |
Continuous rated torque | N.m | 0.6 | 0.6 | 0.6 |
Continuous current | A | 19 | 9.5 | 5.7 |
Starting torque | N.m | 3.7 | 3.7 | 3.7 |
Starting current | A | 108 | 54 | 31.5 |
No load speed | rpm | 3100 | 3100 | 3100 |
No load current | A | 2.0 | 1..2 | 0.8 |
Demagnetization current | A | 200 | 100 | 60 |
Rotor inertia | Gcm2 | 1800 | 1800 | 1800 |
Weight of motor | kg | 1.85 | 1.85 | 1.85 |
Motor length | Mm | 120 | 120 | 120 |
