Home > Products > brushed dc motors > 63ZYT02A dc electric motor 100w 12volt 24volt 3000rpm

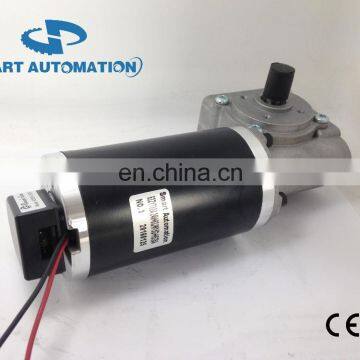

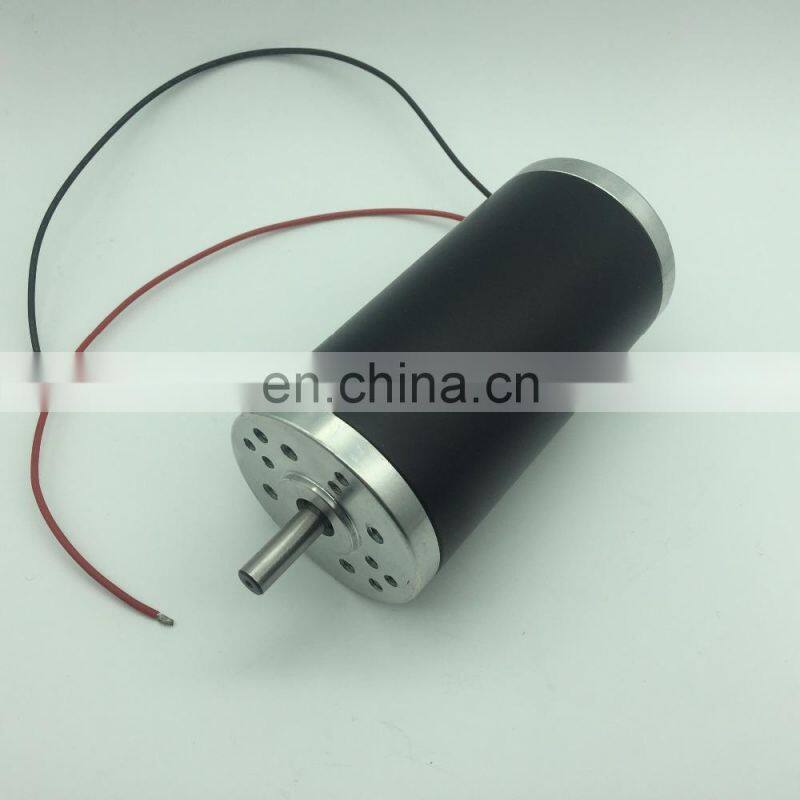

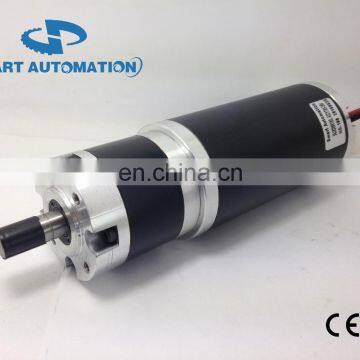

63ZYT02A dc electric motor 100w 12volt 24volt 3000rpm
- 100000 Piece / Pieces per Month
- SHANGHAI
- T/T Credit Card
-
90zyt02 series, dc electric motor 24v 500w 3000rpm, option for 12v
-
Dia. 63mm massage chair motor, DC 24 volt, 12 volt 4000rpm
-
76mm dc gear motor 12v 150w, 24v option with planet reducer
-
12v 24v electric dc motor for golf cart 8Nm 150rpm LOW NOISE
-
52mm Brushed Dc Motor replaceable brushes 12v 24v
-
80ZYT01C rated 6000rpm to 7000rpm electric motor dc 12 volt or 24 volt
Product Details
Brand Name: | Smart Automation | Place of Origin: | China | Model Number: | 63ZYT02A |
Type: | Micro Motor | Certification: | CE, ROHS | Torque: | 0.31N.m |
Usage: | Car, Electric Bicycle, Fan, Home Appliance | Construction: | Permanent Magnet | Efficiency: | IE 1 |
Protect Feature: | Drip-proof | Voltage(V): | 12v, 24v | Output Power: | 100w |
Continuous Current(A): | customed | Speed(RPM): | 3000rpm | Commutation: | Brush |
Product Description
63ZYT02A electric motor 100w
Motor technical parameter:
Shaft HRC 36~40 ; NMB ball bearing
Hard ferrit magnet, 2- poles
Protection class IP 50
Insulation class: F, operating temperature range:-40°C~+140°C
CE and ROHS certified
Options:
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection
High temperature Class H insulation
Model | 63ZYT02A | |||
Rated voltage | V dc | 12 | 24 | 40 |
Continuous rated speed | rpm | 3000 | 3000 | 3000 |
Continuous rated torque | mN.m | 310 | 310 | 310 |
Continuous current | A | 11.5 | 5.8 | 3.5 |
Starting torque | mN.m | 2000 | 2000 | 2000 |
Starting current | A | 59 | 29.5 | 17.5 |
No load speed | rpm | 3500 | 3500 | 3500 |
No load current | A | 2.0 | 1.2 | 0.8 |
Demagnetization current | A | 110 | 55 | 33 |
Rotor inertia | Gcm2 | 600 | 600 | 600 |
Weight of motor | g | 1200 | 1200 | 1200 |
Motor length | mm | 110 | 110 | 110 |
