76mm dc gear motor 12v 150w, 24v option with planet reducer
- 100000 Piece / Pieces per Month
- SHANGHAI
- T/T Credit Card
- 12v 24v electric dc motor for golf cart 8Nm 150rpm LOW NOISE
- 52mm Brushed Dc Motor replaceable brushes 12v 24v
- 80ZYT01C rated 6000rpm to 7000rpm electric motor dc 12 volt or 24 volt
- OD63mm 30v dc motor, used for automobile
- dc motor high rpm and torque 12v 24v 40v 200w
- 24v 12v 350w dc worm gear motor 50Nm rating
Product Details
Brand Name: | Smart Automation | Place of Origin: | Jiangsu, China | Model Number: | 62PLG.76ZYT |
Certification: | CE, ROHS | Torque: | customed | ||
Usage: | Car, Electric Bicycle, Fan, Home Appliance | Construction: | Permanent Magnet | Efficiency: | IE 1 |
Protect Feature: | Drip-proof | Voltage(V): | 12v, 24v | Output Power: | 80~200w |
Continuous Current(A): | customed | Speed(RPM): | customed | Commutation: | Brush |
Product Description
76mm dc gear motor 12v 150w, 24v option, with planetary reducer
76ZYT Series Motor Technique Specification:
Ball bearing Hard ferrite magnet, 2- poles Protection class IP 54 Insulation class: B CE and ROHS certified
Model | Voltage (Vdc) | No load speed (rpm) | Rated power (W) | Rated torque (N.m) | Rated Speed (rpm) | Motor Length (mm) |
76ZYT01A | 12/24/36/48 | 3200 | 82 | 0.3 | 2600 | 98 |
76ZYT01B | 12/24/36/48 | 4600 | 125 | 0.3 | 4000 | 98 |
76ZYT02A | 12/24/36/48 | 3200 | 125 | 0.46 | 2600 | 118 |
76ZYT02B | 12/24/36/48 | 4600 | 192 | 0.46 | 4000 | 118 |
76ZYT03A | 12/24/36/48 | 3200 | 180 | 0.66 | 2600 | 138 |
76ZYT03B | 24/36/48 | 4600 | 276 | 0.66 | 4000 | 138 |
76ZYT04A | 12/24/36/48 | 3200 | 200 | 0.75 | 2600 | 153 |
76ZYT04B | 24/36/48 | 4600 | 314 | 0.75 | 4000 | 153 |

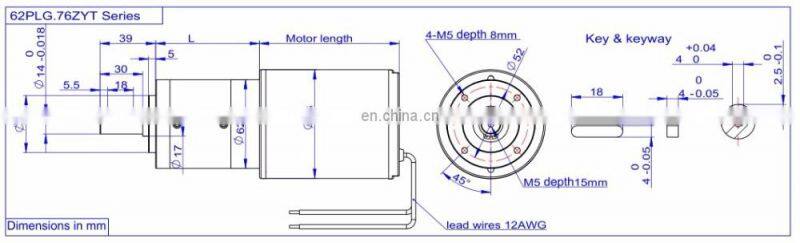

62PLG Planetary Gearbox Specification:
Reduction ratio | 1/3.65 | 1/5.36 | 1/6.55 | 1/8.63 | 1/13.3 | 1/19.5 | 1/23.9 | 1/31.5 | 1/35.1 | 1/42.9 | 1/46.2 | 1/56.5 | 1/71.4 | 1/87.3 | |
Number of gear trains | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 3 | 3 | |
Gearbox Length (L) (mm) | 72.7 | 72.7 | 72.7 | 72.7 | 90.6 | 90.6 | 90.6 | 90.6 | 90.6 | 90.6 | 90.6 | 90.6 | 108.5 | 108.5 | |
Transmission efficiency | 90% | 90% | 90% | 90% | 81% | 81% | 81% | 81% | 81% | 81% | 81% | 81% | 73% | 73% | |
Max. rated transmission torque (N.m) | 8 | 8 | 8 | 8 | 25 | 25 | 25 | 25 | 25 | 25 |
| ||||
Max. permissible load in short time (N.m) | 16 | 16 | 16 | 16 | 75 | 75 | 75 | 75 | 75 | 75 |
| ||||
Reduction ratio | 1/114.9 | 1/128.1 | 1/154 | 1/156.6 | 1/168.8 | 1/188.2 | 1/206.3 | 1/247.9 | 1/271.8 | 1/281 |
| ||||
Number of gear trains | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| ||||
Gearbox Length (L) (mm) | 108.5 | 108.5 | 108.5 | 108.5 | 108.5 | 108.5 | 108.5 | 108.5 | 108.5 | 108.5 |
| ||||
Transmission efficiency | 73% | 73% | 73% | 73% | 73% | 73% | 73% | 73% | 73% | 73% |
| ||||
Max. rated transmission torque (N.m) | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 |
| ||||
Max. permissible load in short time (N.m) | 135 | 135 | 135 | 135 | 135 | 135 | 135 | 135 | 135 | 135 |
| ||||
