Home > Products > brushed dc motors > 63mm high torque dc micro motor 24 v 3000rpm 310mNm 100w

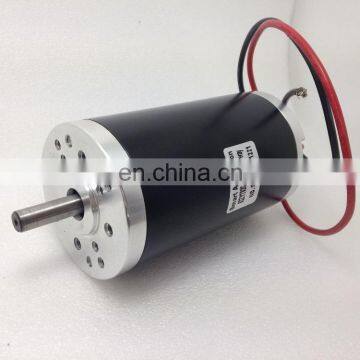

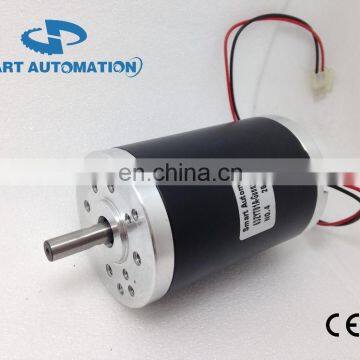

63mm high torque dc micro motor 24 v 3000rpm 310mNm 100w
- SHANGHAI
- T/T Credit Card
You May Like
-
OD63mm high torque Permanent Magnet Brushed Dc Motor 12V 24V 36V 40V 48V 60v power 50w 100w 150w 200w
-
63ZYT01A Brush Dc Micro Motor Equivalent to GR 63x25 Rated 0.14Nm 50W
-
63ZYT01C high torque high speed 10000rpm 12V 24V dc Motor 200w
-
63ZYT02A high torque Brushed 3000rpm dc Motor, rated 0.31Nm 100W
-
63ZYT03A high torque Brushed electric dc Motor, rated 0.40Nm 3000rpm 126W
-
12v 24v 48v dc pump motor used for hydraulic water air pumps
Product Details
| Brand Name | SmartAutomation | Place of Origin | Jiangsu, China | |
| Model Number | 63ZYT-24V |
Product Description
Motor technical parameter
Shaft HRC 36~40 ; NMB ball bearing
Hard ferrit magnet, 2- poles
Protection class IP 50
Insulation class: F, operating temperature range:-40°C~+140°C
CE and ROHS certified
Options:
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection
High temperature Class H insulation
Model |
| 63ZYT01A | 63ZYT01B | 63ZYT01C | 63ZYT02A | 63ZYT03A |
Rated voltage | V dc | 24 | 24 | 24 | 24 | 24 |
Continuous rated speed | rpm | 3300 | 9500 | 2800 | 3000 | 3000 |
Continuous rated torque | mN.m | 140 | 200 | 250 | 310 | 400 |
Continuous current | A | 2.7 | 12 | 4.5 | 5.8 | 7.5 |
Starting torque | mN.m | 1080 | 1200 | 1300 | 2000 | 2700 |
Starting current | A | 18 | 104 | 19.5 | 29.5 | 38.5 |
No load speed | rpm | 3600 | 10000 | 3500 | 3500 | 3500 |
No load current | A | 0.36 | 2.0 | 0.8 | 1.2 | 2.0 |
Demagnetization current | A | 24 | 150 | 30 | 55 | 75 |
Rotor inertia | Gcm2 | 400 | 400 | 400 | 600 | 840 |
Weight of motor | g | 1000 | 1000 | 1000 | 1200 | 1350 |
Motor length | mm | 95 | 95 | 95 | 110 | 125 |
Rated power | W | 50 | 200 | 75 | 100 | 125 |
