OD63mm high torque Permanent Magnet Brushed Dc Motor 12V 24V 36V 40V 48V 60v power 50w 100w 150w 200w

FOB Price

USD $8 - $40 / Piece

5 Pieces(Min.Order)

Supply Ability 100000 Piece / Pieces per Month
Port SHANGHAI
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	Smart Automation	Place of Origin:	Jiangsu, China	Model Number:	63ZYT-SERIES
Type:	Micro Motor	Certification:	CE, ROHS	Torque:	0.1~0.7Nm
Usage:	Boat, Car, Fan, Home Appliance	Construction:	Permanent Magnet	Efficiency:	IE 1
Protect Feature:	Drip-proof	Continuous Current(A):	customed	Speed(RPM):	5rpm~10000rpm
Commutation:	Brush

Product Description

OD63mm high torque Permanent Magnet Brushed Dc Motor

12V, 24V, 36V, 40V, 48V, 60v power 50w, 100w, 200w, 300w,

option for gearbox, encoder, brake assembly

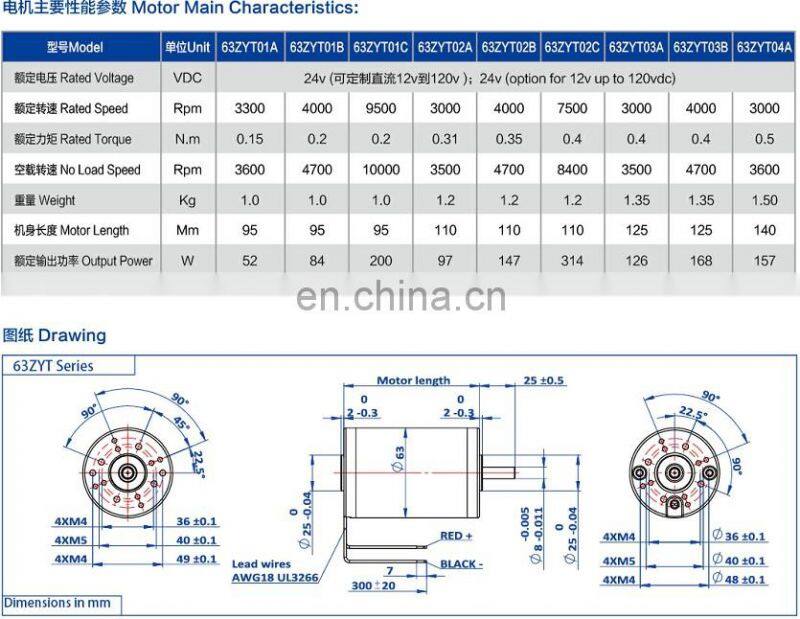

Motor technical parameter:

Shaft HRC 36~40 ; NMB ball bearing

Hard ferrit magnet, 2- poles

Protection class IP 50 54 56 66

Insulation class: F, operating temperature range:-40°C~+140°C

CE and ROHS certified

Options:

Customized voltage, winding, shaft, mounting, and lead configurations

EMI/RFI suppression circuit; Thermal protection

High temperature Class H insulation

BELOW ARE ONLY TYPICAL MODELS

WE SUPPLY CUSTOMED VOLTAGE, SPECIFICATION, SHAFT, MOUNTING AND MOTOR ADDERS.

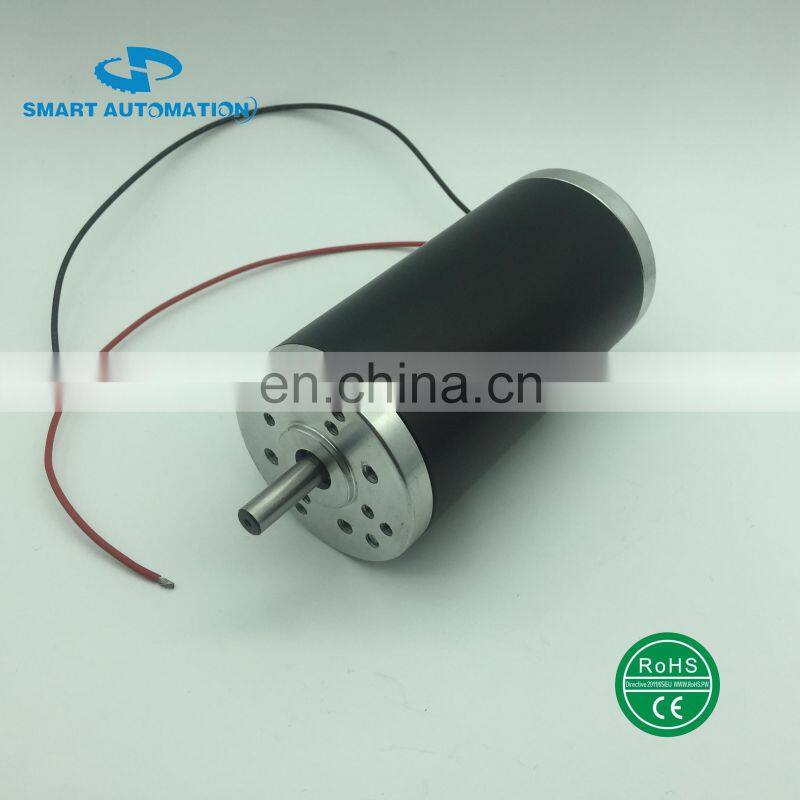

Black color

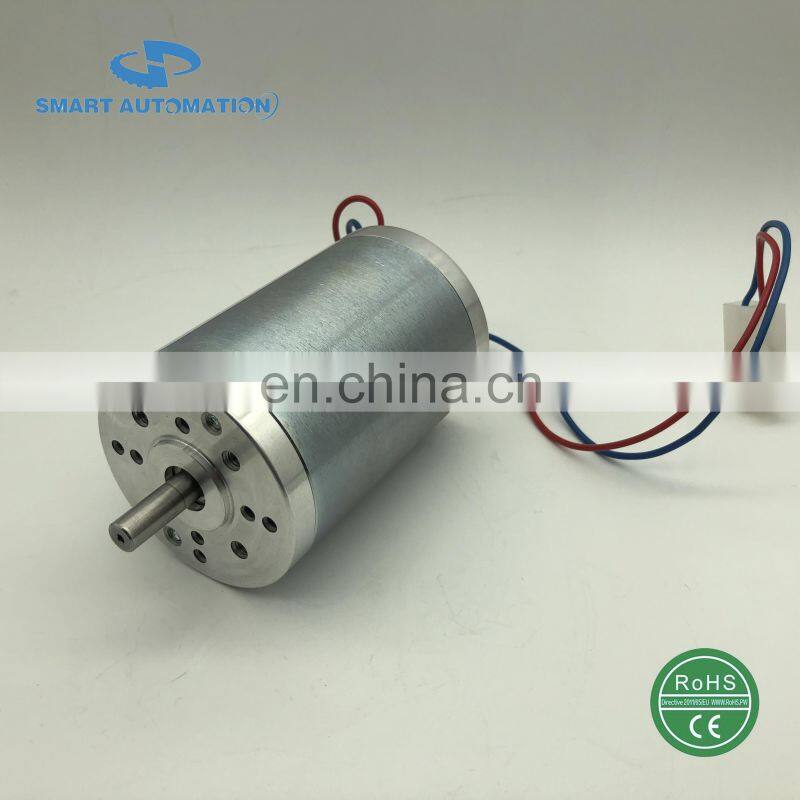

Silver color

Detailed Models

MODEL 63ZYT01B

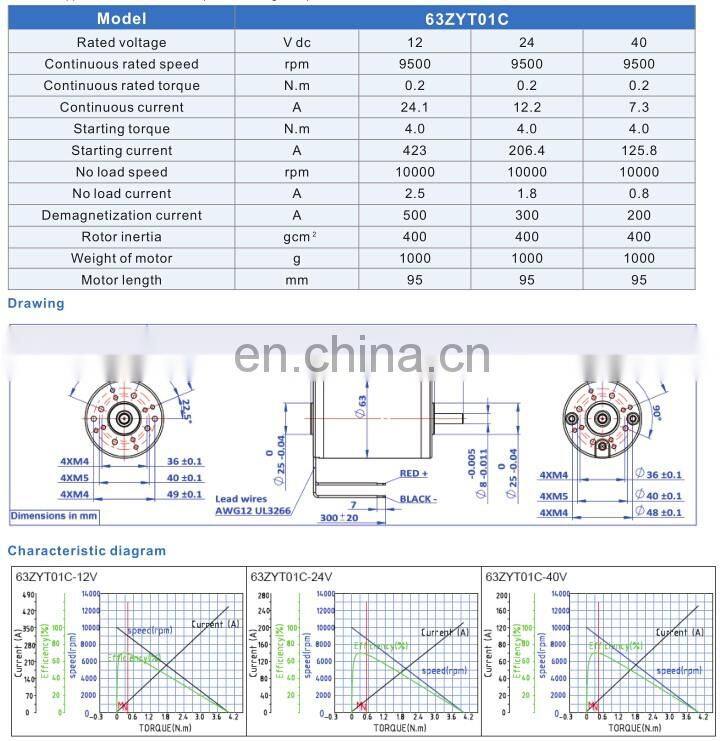

MODEL 63ZYT01C

MODEL 63ZYT02A

MODEL 63ZYT02B

MODEL 63ZYT02C

MODEL 63ZYT03A

MODEL 63ZYT03B

The motor can be customed :

12vdc-60vdc, speed 1300rpm--10000rpm, torque 0.1Nm--0.75 Nm, power upto 500w

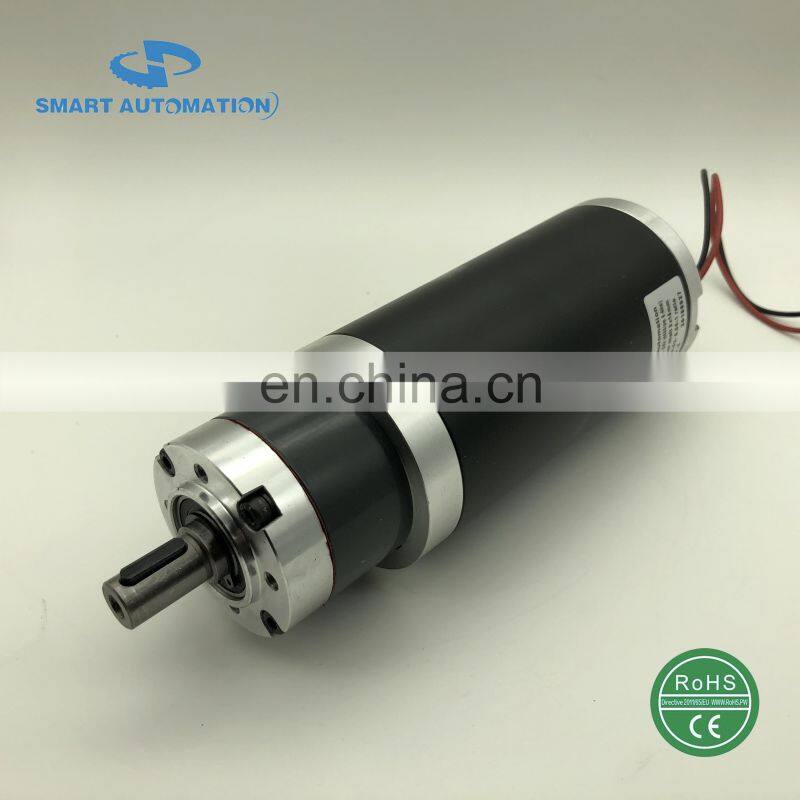

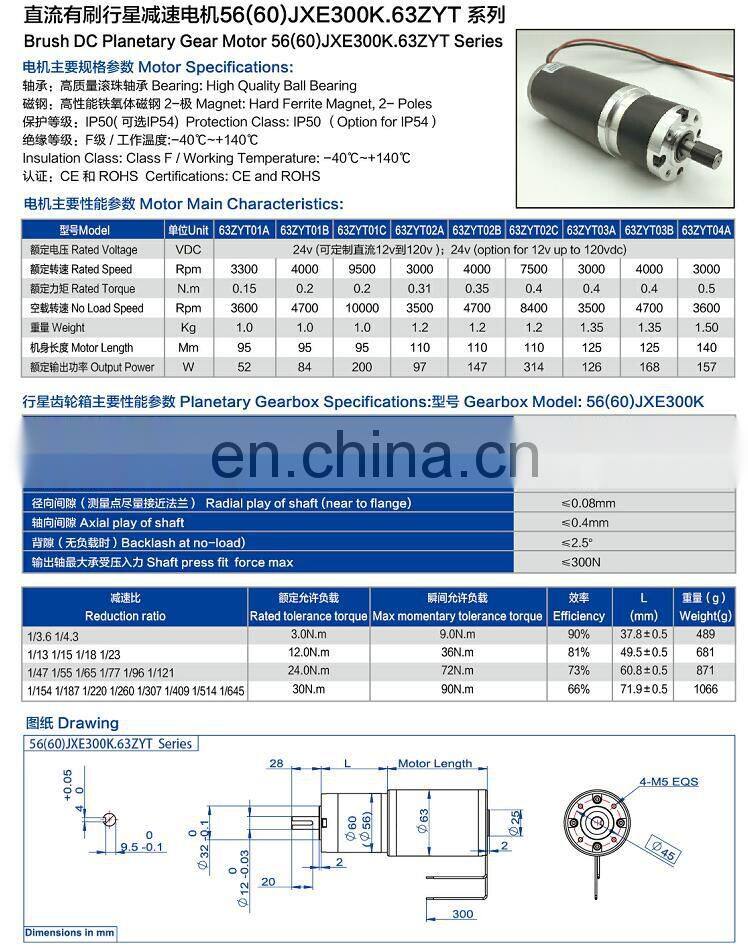

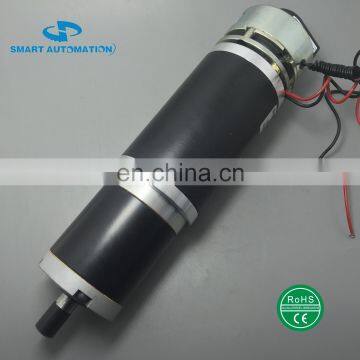

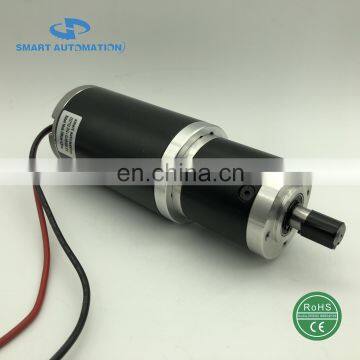

Planetary Geared Version

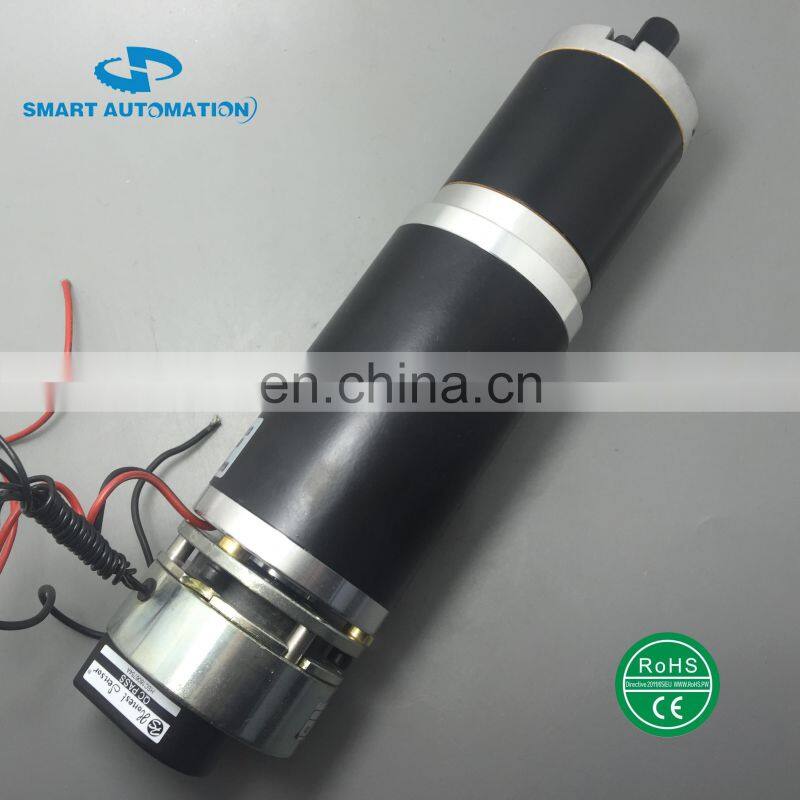

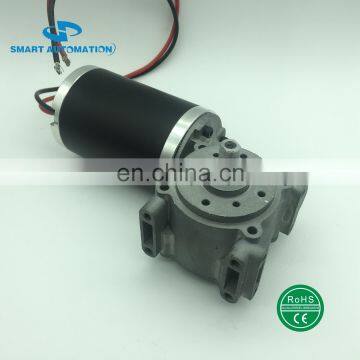

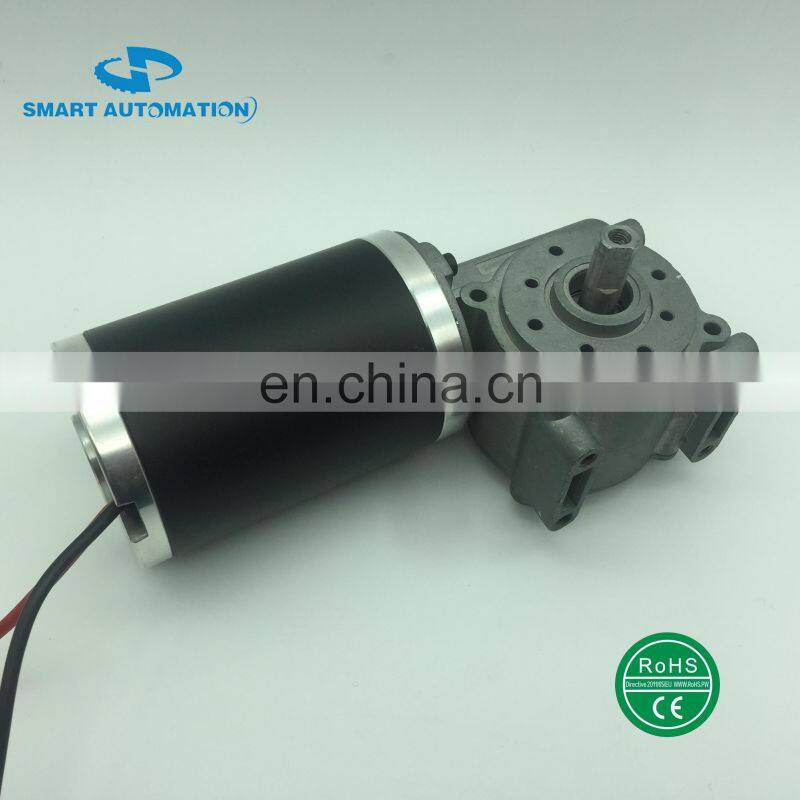

Option for encoder, brakes, and worm gearbox

WE SUPPLY CUSTOMED VOLTAGE, SPECIFICATION, SHAFT, MOUNTING AND MOTOR ADDERS.

main applications of BRUSHED DC MOTOR

Industry	Content	Industry	Content
Medical equipment	Hand-held surgical instruments	Aerospace Industry	Electric seat adjustment post

	Surgical robot		Flight recorders

	Micro-injection pump; Peristaltic pump		Autopilot

	Dialyzer		Air-conditioning system

	Automatic dosing system		Space Robot

	Radiation therapy equipment

	Diagnostic equipment and testing instruments
Robot	Humanoid robot	Auto industry	Adjustable shock absorbers

	Service robots		Emission abatement system

	Teaching Robots		Electronic steering

			Electronic tachometer
Industrial Automation	Precision Positioning System	Communications Equipment	Antenna System

	Handling System		Copier / printer / plotter

	transmission system		Recorder

	Industrial robots		Professional Camera
Electronic / Semiconductor Equipment	Fast Feeders	Instrumentation	Microscope

	SMT Positioning device		Laser leveling system

	Lithography		Precision measuring instrument

	A wafer processing system		Meteorological Analyzer
Power Tools	Professional power tool battery	Financial Business Machines	Reader

Electric screwdriver	Dollar banknote handling equipment

Pistols	ATM

Pruning machine	Ticket Printer
Household / Consumer Goods	Model Trains	Security Technology	Motion detection system

	Game		Surveillance Cameras

	Golf Cart		Access Control System

	Household robots		Automatic doors
