Home > Products > Pump > High quality 500 Watt Solar Water Pump Submersible Deep Well Solar Pump for irrigation borewell EMP516

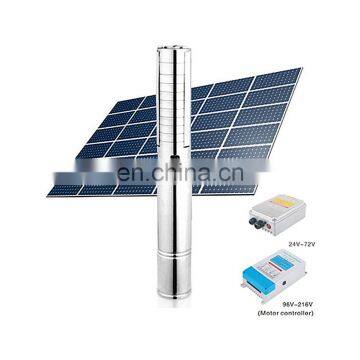

High quality 500 Watt Solar Water Pump Submersible Deep Well Solar Pump for irrigation borewell EMP516
- 1000 Set / Sets per Month
- T/T Credit Card
-
High quality dc solar deep well water pump submersible pump for irrigation EMP513
-
High quality dc solar deep well water pump submersible solar pump for irrigation EMP512
-
High quality 55m max head 4m3/h max flow dc submersible solar water pump for bore and irrigation EMP524
-
High quality portable dc submersible solar pump submersible pump for irrigation EMP511
-
High Quality portable dc Solar deep well water pump Submersible Pump All stainless steel for bore and irrigation EMP510
-
High Quality dc portable deep well submersible pump borehole DC solar pump for farm EMP508
Product Details
| Brand Name: | belmont | Place of Origin: | China | Model Number: | 3SPST1.5/115-D36/500 EMP516 |
| Application: | Submersible | Power: | Electric | ||
| Structure: | Screw Pump | Pressure: | High Pressure |
Product Description
|
OUR PRODUCTS |
Profile
Adopt stainless steel screw and stator, permanent Magnet Brushless motor. With combination of motor and controller, the max efficiency is ever 85%, raises 25% than the traditional AC one.
Material:
(A) Stainless steel casing, shaft core, coupling and pump body; copper alloy connecting, base; rubber stator of high-strength and wear-resistant.
(B)Oil immersion style stainless steel submersible motor.
Product Feature:
(A)Compact structure, high-lift, noiseless, pollution-free; complete electrical protecting controller device, against under-voltage, over-voltage, over-flew, overload, waterless etc.; automatic recovery; controlling water height as demand.
(B)Easy installation, maintenance-free, safe and reliable.
Max Head: 115m Max flow: 1.5m3/h
Application:
These electric pumps series are workable within maximum head, as there are no restrictions of BDC. With the addition of high head, high efficiency and wide high efficiency zone, they are suitable for distance water irrigation, high efficiency of increasing oxygen on aquaculture, pumping water from deep well, gardening, fountain and etc.
Working condition:
(A)Non-corrosive water; the volume ratio of sand content no more than 1‰; particle size less than 0.2 mm.
(B)Max medium temperature up 10+40℃; PH value remains 6.5-8.5.
(C)Work close to the rated head and must be immersed in water.
|
SPECIFICATIONS |
|
Model |
Impeller |
Solar array Voltage(V) |
Solar array Power(W) |
Max. flow (m3/h) |
Max. head (m) |
Outlet (inch) |
GW (kg) |
dimension (mm) |
|
EMM516-1.0/30-D24/80 |
screw (Stainless steel) |
36 |
110 |
1 |
30 |
0.75” |
7 |
76*460 |
|
EMM516-1.3/50-D24/140 |
36 |
180 |
1.3 |
50 |
0.75” |
7.2 |
76*460 |
|
|
EMM516-1.5/80-D24/210 |
36 |
280 |
1.5 |
80 |
0.75” |
7.5 |
76*460 |
|
|
EMM516-1.5/95-D24/270 |
36 |
360 |
1.5 |
95 |
0.75” |
8 |
76*460 |
|
|
EMM516-1.5/115-D36/500 |
54 |
660 |
1.5 |
115 |
0.75” |
9 |
76*460 |
|
|
EMM516-2.3/80-D48/750 |
72 |
960 |
2.3 |
80 |
0.75” |
9 |
76*460 |
|
| EMM516-2.3/120-D48/1000 | 72 | 1320 | 2.3 | 120 | 0.75” | 9.5 | 76*460 | |
| EMM516-2.3/140-D72/1300 | 108 | 1680 | 2.3 | 140 | 0.75” | 9.5 | 76*460 |
|
PERFORMANCE CURVE |
