Home > Electrical & Electronics > Electric Motor > DC Motor > 24V High Torque Reducer Motor With Gearbox Low Rpm DC Gear Motor BMM205M

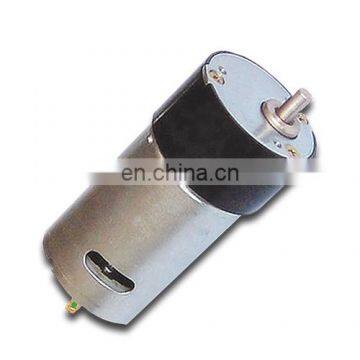

24V High Torque Reducer Motor With Gearbox Low Rpm DC Gear Motor BMM205M
US$ 8.5 - 12.8
MOQ: 2 Pieces
Key Specifications
Get Latest Price
Brand Name:
Mcmaster
Place of Origin:
Jiangsu, China
Model Number:
BMM205M
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
24v OD80mm 86 Rpm High Quality High Torque DC Planetary Reduction Gear Motor Reducer Motor for Light Box EMM509EUS$ 73 - 103MOQ: 2 Pieces -
24v 300w 80mm OD High Quality Low Rpm High Torque DC Planetary Reduction Gear Motor Reducer Motor for Packing Machine EMM515EUS$ 106 - 136MOQ: 2 Pieces
-
BMM932W Outrunner Sensored 150W 70 Hub With PU Wheel Remote Control Electric Skateboard Mountainboard Dc Brushless MotorUS$ 22.03 - 25.46MOQ: 1 Piece
-
24V 110W Reducer Motor With Gearbox Low Rpm DC Gear Motor BMM226MUS$ 8.5 - 12.8MOQ: 2 Pieces
-
350W 300rpm DC Motor With Gearbox 24V High Torque Planetary Reduction Gear Motor for Solar Tracker BMM525MUS$ 124 - 197MOQ: 2 Pieces
Brand Name
Mcmaster
Place of Origin
Jiangsu, China
Model Number
BMM205M
Type
Gear Motor
Certification
CCC, ROHS
Torque
0.03 N.m - 0.08 N.m
Usage
Boat, Car, Electric Bicycle, Fan, Home Appliance
Construction
Permanent Magnet
Protect Feature
Totally Enclosed
Output Power
1W
Continuous Current(A)
1 A
Speed(RPM)
105 rpm - 320 rpm
Commutation
Brush
Product Application: Outdoor advertising, medical equipment, logistics transmission, mechanical equipment, solar tracking device, precision equipment etc.
|
|
VOLTAGE (VDC) |
NO LOAD |
RATED LOAD |
TORQUE (Nm) |
RATIO |
Power (W) |
LENGTH (mm) |
||
|
CURRENT (A) |
SPEED (r/min) |
CURRENT (A) |
SPEED (r/min) |
||||||
|
BMM205M-1 |
24 |
≤0.4 |
450 |
≤1 |
320 |
0.03 |
1:21 |
1.01 |
71 |
|
BMM205M-2 |
24 |
≤0.4 |
140 |
≤1 |
105 |
0.08 |
1:63 |
0.88 |
72.9 |
For more information, you can visit our website
