Home > Electrical & Electronics > Electric Motor > DC Motor > 24v OD80mm 86 Rpm High Quality High Torque DC Planetary Reduction Gear Motor Reducer Motor for Light Box EMM509E

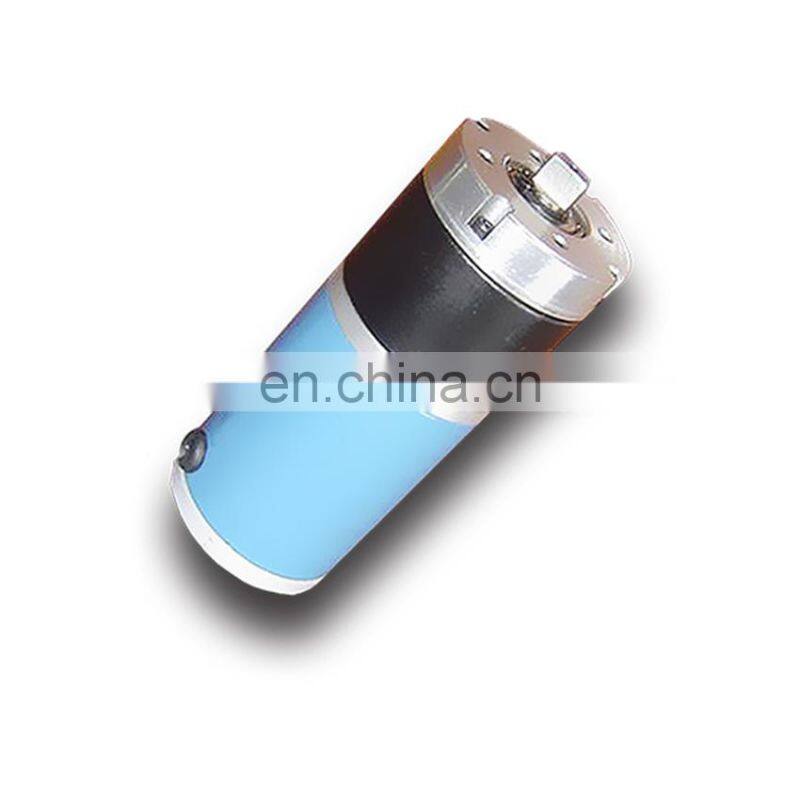

24v OD80mm 86 Rpm High Quality High Torque DC Planetary Reduction Gear Motor Reducer Motor for Light Box EMM509E
US$ 73 - 103
MOQ: 2 Pieces
Key Specifications
Get Latest Price
Brand Name:
McMaster
Place of Origin:
Jiangsu, China
Model Number:
EMM509E
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
24v 300w 80mm OD High Quality Low Rpm High Torque DC Planetary Reduction Gear Motor Reducer Motor for Packing Machine EMM515EUS$ 106 - 136MOQ: 2 Pieces -
BMM932W Outrunner Sensored 150W 70 Hub With PU Wheel Remote Control Electric Skateboard Mountainboard Dc Brushless MotorUS$ 22.03 - 25.46MOQ: 1 Piece
-
24V 110W Reducer Motor With Gearbox Low Rpm DC Gear Motor BMM226MUS$ 8.5 - 12.8MOQ: 2 Pieces
-
350W 300rpm DC Motor With Gearbox 24V High Torque Planetary Reduction Gear Motor for Solar Tracker BMM525MUS$ 124 - 197MOQ: 2 Pieces
-
BMF044W 230 V 380 V Dia 200 mm External Rotor Air Blowers Axial Ventilation Electric Fan for CNC LatheUS$ 30 - 30MOQ: 2 Pieces
Brand Name
McMaster
Place of Origin
Jiangsu, China
Model Number
EMM509E
Type
Gear Motor
Certification
CCC, ROHS
Torque
11 N.m
Usage
Boat, Car, Fan, Home Appliance
Construction
Permanent Magnet
Efficiency
IE 2
Protect Feature
Totally Enclosed
Continuous Current(A)
7.5 A
Speed(RPM)
86 rpm
Commutation
Brush
Product Application: Outdoor advertising, medical equipment, logistics transmission, mechanical equipment, solar tracking device, precision equipment etc.
| Model |
VOLTAGE (V) |
NO LOAD |
RATED LOAD |
Torque (N.m) |
RATIO |
STAGE |
Power (W) |
LENGTH (mm) |
||
|
CURRENT (A) |
SPEED (r/min) |
CURRENT (A) |
SPEED (r/min) |
|||||||
|
EMM509 |
24 |
1.39 |
103 |
7.48 |
86 |
11.3 |
35 |
2 |
102 |
190 |
|
Voltage (VDC) |
No Load |
Rated Load |
Toque (N.m) |
EMF constant (V/rpm) |
torque constant (N.m/A) |
Length (mm) |
||
|
Current(A) |
Speed(r/min) |
Current(A) |
Speed(r/min) |
|||||
|
24 |
1.12 |
3614 |
7.48 |
3000 |
0.4 |
0.0065887 | 0.0629 | 115 |
