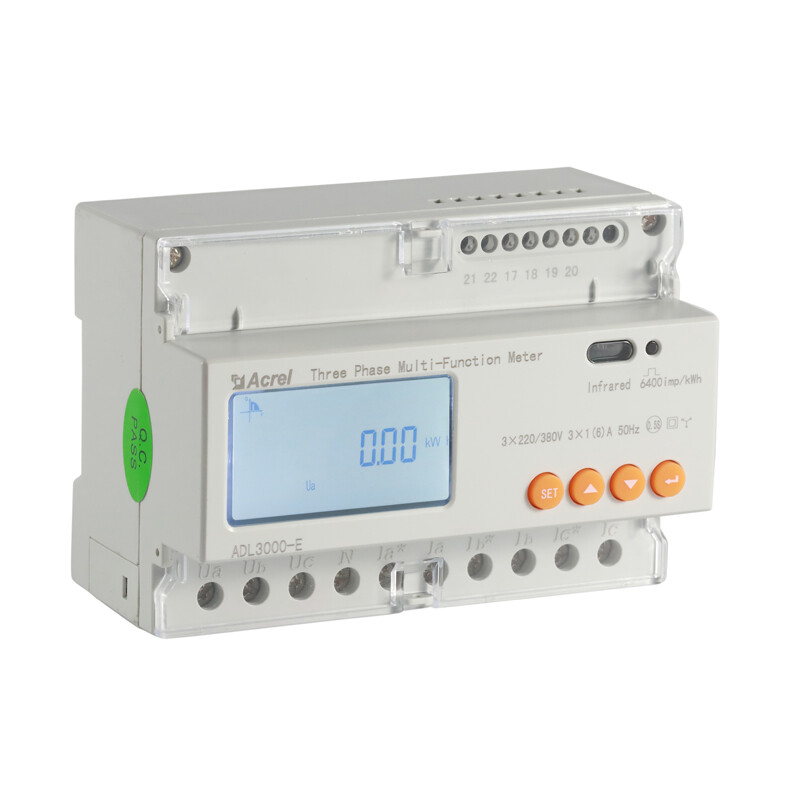

Acrel ADL3000-E Three Phase Din Rail RS485 Modbus Reactive Power Meter
US$ 70 - 70.1
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Acrel
Place of Origin:
China
Model Number:
ADL3000-E
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
7 days
Related Products
-
Acrel ADL400 3 Phase Digital Energy Meter/energy Monitoring Meter/Din Rail Energy Meter CEUS$ 66 - 70MOQ: 1 Piece -
Acrel ADL400 Three Phase Energy Meter/modbus Energy Meter/digital Energy Meter 3 Phase CEUS$ 66 - 70MOQ: 1 Piece
-
Acrel ADL400 Modbus Energy Meter/3 Phase Din Rail Energy Meter/digital Kwh Meter 3 Phase CEUS$ 66 - 70MOQ: 1 Piece
-
Acrel ADL400 3 Phase Energy Meter/energy Meter Kwh/energy Meter Modbus CEUS$ 66 - 70MOQ: 1 Piece
-
Acrel ADL400 Three-Phase Din Rail Energy Meter/Electricity Meter/three Phase Smart Meter CEUS$ 66 - 70MOQ: 1 Piece
Brand Name
Acrel
Place of Origin
China
Model Number
ADL3000-E
Phase
Three Phase
Output Voltage
220V
Operating Temperature
-25℃~55℃
Dimensions
126.5mm*88 mm*69.5mm
Display Type
Other, LCD
Accuracy Class
Class 0.5S
Measuring Energy Range
000000.00~999999.99kWh
General
ADL3000 is a smart meter designed for power supply system, industrial and mining enterprises and utilities to calculate the electricity consumption and manage the electric demand. It features the high precision, small size and simple installation.it can be used in all kinds of control systems, SCADA systems and energy management systems. All meters meet the related technical requirements of electronic power meter in the IEC62053-21、IEC62053-22 standards.
Function
Parameters

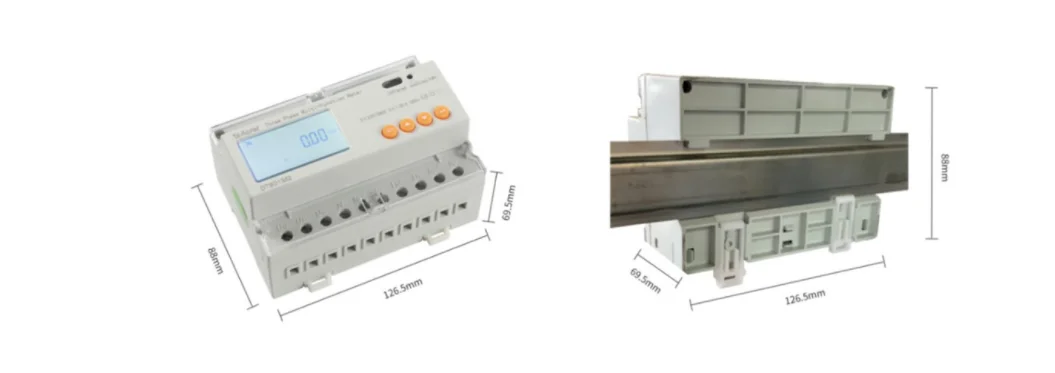

Dimension

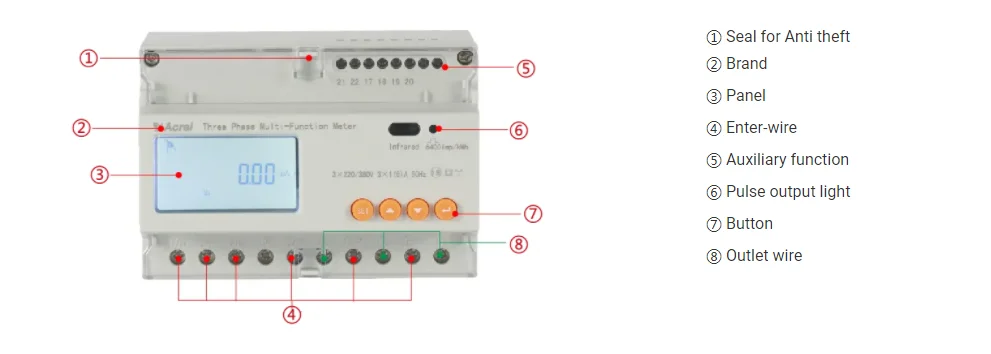

Front panel

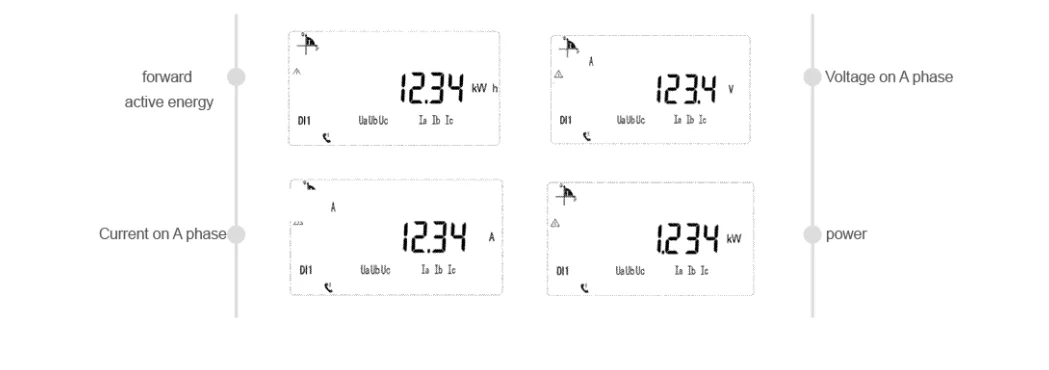

LCD Display
Wiring

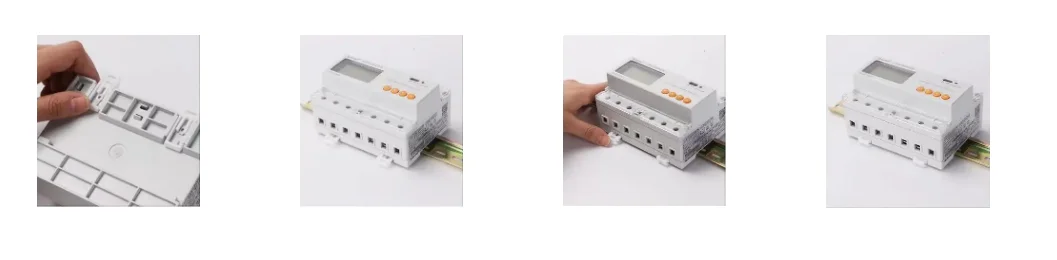

Installation

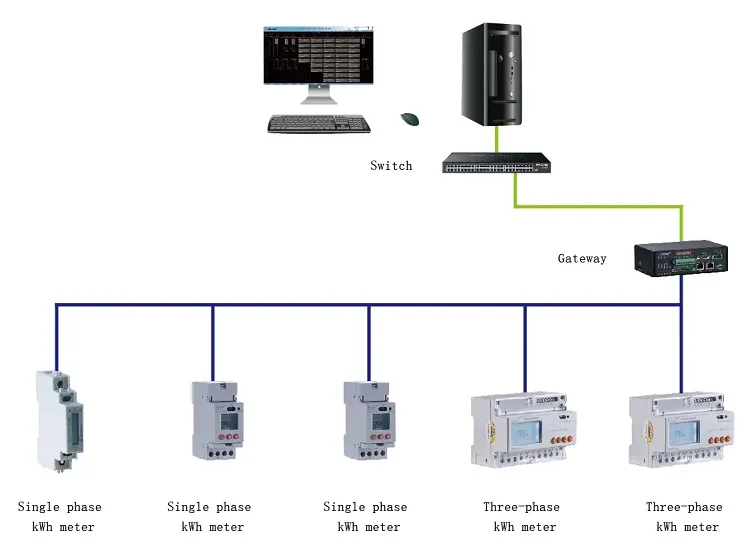

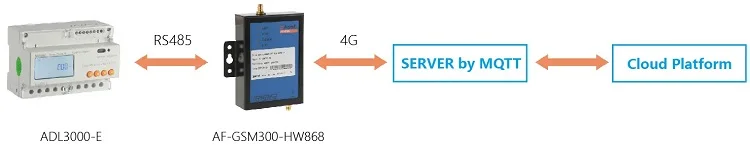

Network
FAQ
Q：I bought a three-phase four-wire meter, can it be wired as three-phase three-wire?
A：Yes, press the key to set the meter to three-phase three-wire mode.
Q：What is the difference between ordinary secondary access and -CT (model external transformer)?
A：Ordinary secondary meter could access the ratio XXX/5(1)A of the CTs which could be actual current on site, the -CT model comes with an external transformer will be convenient for installation(It cannot be disassembled, otherwise it will burn the meter).There are CTs available on site to facilitate with No stitch removal.
Q：What are 3*100V、3*57.7/100V、3*380V、3*220/380V?
A：3*100V, 3*57.7/100V are used for high voltage, used in conjunction with voltage transformers, where 3*100V represents 3P3W,3*57.7V/100V represents 3P4W; 3*380V, 3*220V/380V are used for low voltage, direct voltage input, among them3*380V represents 3P3W, 3*220V/380V represents 3P4W.
Q：Can this meter communicate with PLC?
A：Yes, only need PLC to support RS485 interface, Modbus RTU or DL/T645 protocol.
A：Yes, press the key to set the meter to three-phase three-wire mode.
Q：What is the difference between ordinary secondary access and -CT (model external transformer)?
A：Ordinary secondary meter could access the ratio XXX/5(1)A of the CTs which could be actual current on site, the -CT model comes with an external transformer will be convenient for installation(It cannot be disassembled, otherwise it will burn the meter).There are CTs available on site to facilitate with No stitch removal.
Q：What are 3*100V、3*57.7/100V、3*380V、3*220/380V?
A：3*100V, 3*57.7/100V are used for high voltage, used in conjunction with voltage transformers, where 3*100V represents 3P3W,3*57.7V/100V represents 3P4W; 3*380V, 3*220V/380V are used for low voltage, direct voltage input, among them3*380V represents 3P3W, 3*220V/380V represents 3P4W.
Q：Can this meter communicate with PLC?
A：Yes, only need PLC to support RS485 interface, Modbus RTU or DL/T645 protocol.
