Home > Instruments & Meters > Meter for Electricity > Energy Meter & Power Meter > Acrel ADL200 Single Phase Energy Meter/din Rail Electronic Meter/Digital Power Meter CE-MID

Acrel ADL200 Single Phase Energy Meter/din Rail Electronic Meter/Digital Power Meter CE-MID

Name: Acrel ADL200 Single Phase Energy Meter/din Rail Electronic Meter/Digital Power Meter CE-MID
Brand: Acrel
SKU: 168296589
Availability: InStock

Acrel ADL200 Single Phase Energy Meter/din Rail Electronic Meter/Digital Power Meter CE-MID thumbnail-1

Acrel ADL200 Single Phase Energy Meter/din Rail Electronic Meter/Digital Power Meter CE-MID thumbnail-2

Acrel ADL200 Single Phase Energy Meter/din Rail Electronic Meter/Digital Power Meter CE-MID thumbnail-3

Acrel ADL200 Single Phase Energy Meter/din Rail Electronic Meter/Digital Power Meter CE-MID thumbnail-4

Acrel ADL200 Single Phase Energy Meter/din Rail Electronic Meter/Digital Power Meter CE-MID thumbnail-5

Acrel ADL200 Single Phase Energy Meter/din Rail Electronic Meter/Digital Power Meter CE-MID photo-1

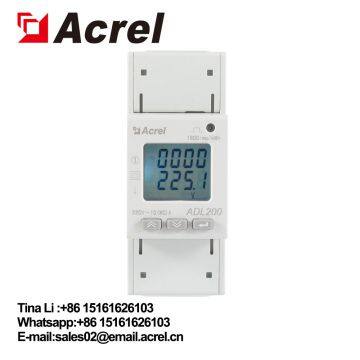

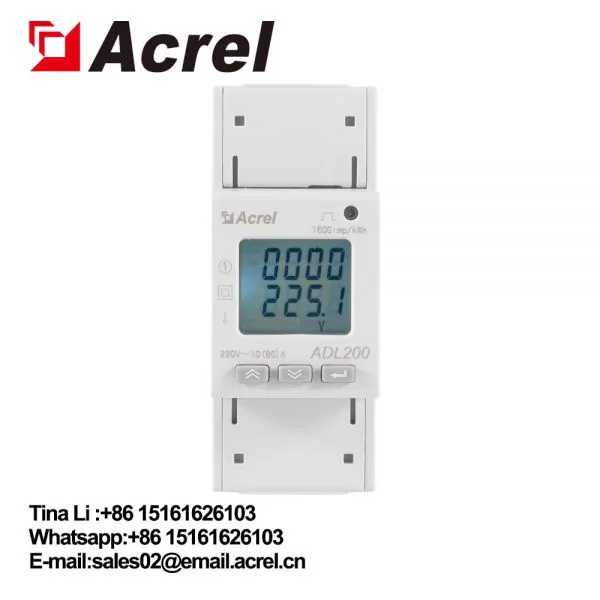

Acrel ADL200 Single Phase Energy Meter/din Rail Electronic Meter/Digital Power Meter CE-MID photo-2

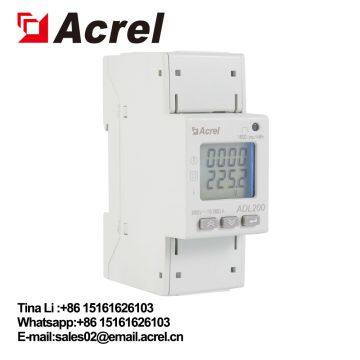

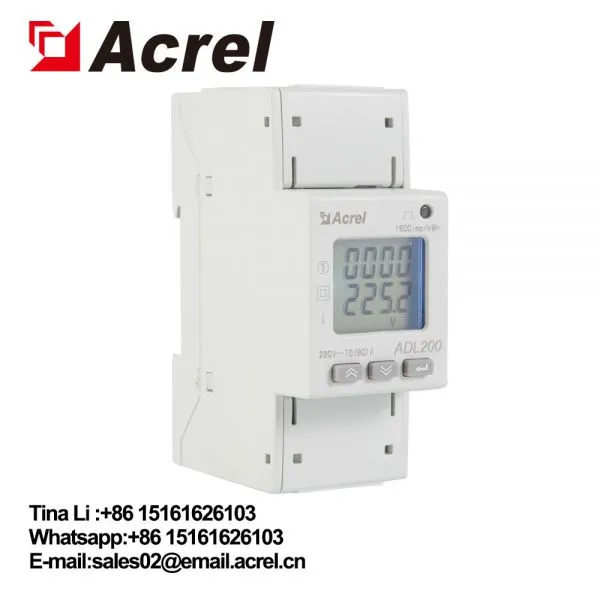

Acrel ADL200 Single Phase Energy Meter/din Rail Electronic Meter/Digital Power Meter CE-MID photo-3

Acrel ADL200 Single Phase Energy Meter/din Rail Electronic Meter/Digital Power Meter CE-MID photo-4

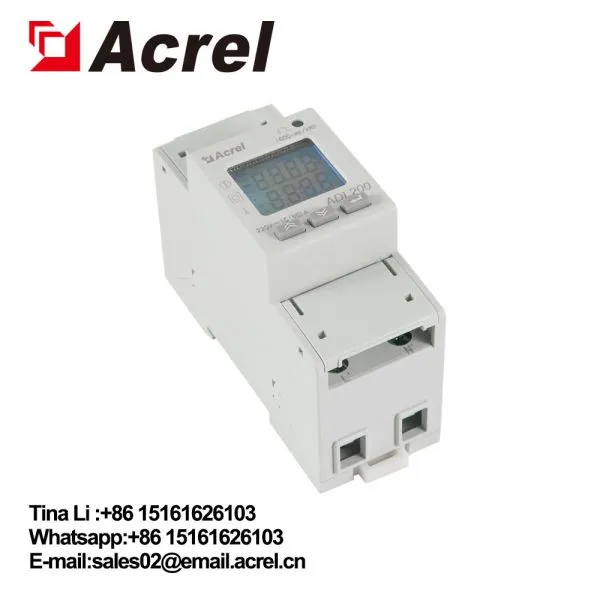

Acrel ADL200 Single Phase Energy Meter/din Rail Electronic Meter/Digital Power Meter CE-MID photo-5

US$ 35 - 35.1 MOQ: 1 Piece

Key Specifications

Get Latest Price

Brand Name:

Acrel

Place of Origin:

China

Model Number:

ADL200

Contact Supplier Request Quote Chat Now

Jiangsu Acrel Electrical Manufacturing CO.,LTD

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

7 days

Product Details
Company Profile
Contact Us

Brand Name Acrel

Place of Origin China

Model Number ADL200

Phase Single Phase

Output Voltage 220V

Operating Temperature -25℃~55℃

Dimensions 36mm*90 mm*65mm

Display Type Other, LCD

Accuracy Class Class 1.0

Measuring Energy Range 000000.00~999999.99kWh

General

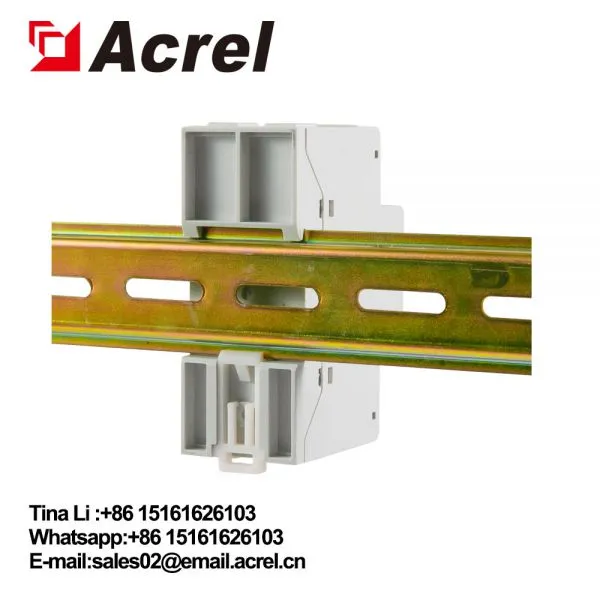

ADL200 din rail energy meter adopts DIN35mm din rail installation with LCD display,it can measure electric parameters and has energy pulse output, RS485 communication,which has the advantages of small size, high precision, good reliability and convenient installation.

Parameters

Voltage	Rated voltage	AC 220V
	Rated frequency	50Hz
	Consumption
Current	Maximum current	80A
	Starting current	0.01A
	Consumption
Measurement performance	Accurary	kWh Class 0.5
	Range	0-99999999kwh
Clock	Accurary	Error≤0.5s/d
Active pulse	Width	80±20ms
	Constant	1000imp/kWh,10000imp/kWh
Communication	Interface	RS485
	Protocol	Modbus-RTU
Temperature range	Work	-25℃-55℃
	Storage	-40℃-70℃
Humidity		≤95%(No condensation)
Altitude

FAQ

Q:The display power or energy count is inaccurate after the meter powered on.

A:Switch the meter display interface to the power (active power P, power factor λ) interface, and check whether the power display is negative or not.And whether the power factor is between 0.9-0.95, and then check whether the incoming and outgoing wires of the current signal wire are connected reversely (that is, the current The incoming wire must be the same as the incoming wire end of the meter), and consistent with the wiring diagram on the meter.

Q:It cannot communicate with the host computer normally after the instrument powered on.

A:1. The voltage value between the communication output A and B of the measuring instrument should be between +(4.4-4.5)V .

2. Check whether the communication wiring method is correctly wired according to the wiring diagram (that is, the communication terminal A/B of the instrument must be connected with Corresponding to communication serial port A/B);
