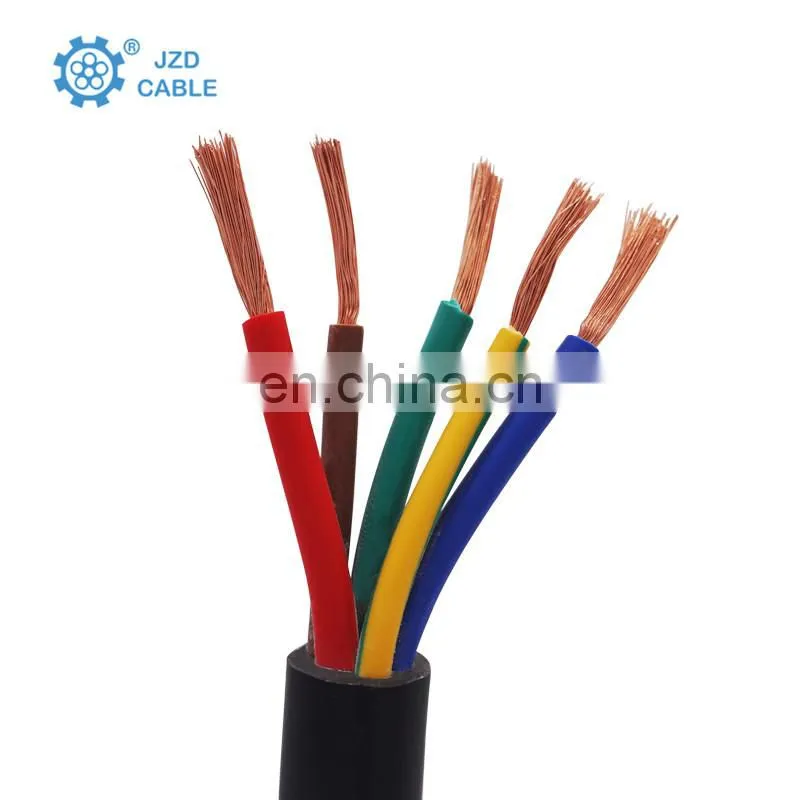

300/500V Copper Cable Stranded RVV 5 Core 6mm2 Flexible Cable Electric Cable Wire
US$ 2.3 - 2.3
MOQ: 100 Meters
Key Specifications
Get Latest Price
Brand Name:
jzd cable
Place of Origin:
Guangdong, China
Model Number:
RVV
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2 Core DC Power Cable 2x4m2 2x6mm2 Pvc UV Resistant Xlpe Power CableUS$ 0.35 - 5MOQ: 100 Meters -
Best Selling Products Pvc Insulated Electric Wires Power Cable RVV TypeUS$ 0.5 - 0.5MOQ: 1000 Meters
-
Fast Delivery 25mm 3 Core Power CableUS$ 1 - 10MOQ: 100 Meters
-
China Hot Sale Power Cable 3x4mm Multi Core Flexible CableUS$ 1 - 15MOQ: 100 Meters
-
Factory Direct Supply 1.5mm Multi Core Flexible CableUS$ 1 - 15MOQ: 100 Meters
Brand Name
jzd cable
Place of Origin
Guangdong, China
Model Number
RVV
Type
Low Voltage
Application
Industrial
Insulation Material
PVC
Jacket
PVC
Conductor Material
Copper
Product Description
- Product standard:
The production standard for anti-flaming and fire-resistant cables is GB/T19666-2005,GB/T5023-2008,JB/T8734-2012 -
Main of cables features
1,Uo/U is 450/750V,300/500,
2,Long-term allowable temperature of the cable:The allowable temperature of 105 Cable should not exceed 105℃, the allowable temperature of other models should not exceed 70℃.
- Application:
Applicable to the cables and wires of rated yolatage 450/750V and less than 450/750V AC for power
plant, householdelectrical applance,insurment and telecommunication equipment.
copper cable electric cable wire
| Voltage Level (V) |
Nominal section (mm²) |
Toplimit of overall diameter (mm) |
Maximum DC resistance (20℃) |
Minimum insulation resistance (70℃) |
Recommended value of carrying capacity (A) |
Reference weight (KG,KM) |
| 300/300 | 2x0.5 | 5.9 | 3.9 | 0.012 | 10 | 37 |
| 2x0.75 | 6.3 | 26.0 | 0.01 | 13 | 47 | |
| 3x0.5 | 6.3 | 39.0 | 0.012 | 8 | 44 | |
| 3x0.75 | 6.7 | 26.0 | 0.01 | 10 | 58 | |
| 2x0.75 | 7.2 | 26.0 | 0.011 | 13 | 58 | |
| 300/500 | 2x1.0 | 7.5 | 19.5 | 0.01 | 16 | 66 |
| 2x1.5 | 8.6 | 13.30 | 0.01 | 20 | 89 | |
| 2x2.5 | 10.6 | 7.98 | 0.009 | 27 | 137 | |
| 2x4 | 12.4 | 4.95 | 0.007 | 38 | 205 | |
| 2x6 | 14.5 | 3.30 | 0.006 | 50 | 280 | |
| 3x0.75 | 7.6 | 26.00 | 0.011 | 9 | 70 | |
| 3x1.0 | 8.0 | 19.50 | 0.01 | 11 | 80 | |
| 3x1.5 | 9.4 | 13.300 | 0.01 | 12 | 112 | |
| 3x2.5 | 11.4 | 7.980 | 0.009 | 21 | 172 | |
| 3x4 | 13.5 | 4.950 | 0.007 | 27 | 255 | |
| 3x6 | 14.0 | 3.30 | 0.006 | 34 | 340 | |
| 4x0.75 | 8.3 | 26.0 | 0.011 | 10 | 84 | |
| 4x1.0 | 9.0 | 19.50 | 0.01 | 12 | 101 | |
| 4x1.5 | 10.5 | 13.30 | 0.01 | 13 | 141 | |
| 4x2.5 | 12.5 | 7.98 | 0.009 | 21 | 210 | |
| 4x4 | 14.6 | 4.95 | 0.007 | 27 | 310 | |
| 4x6 | 16.0 | 3.30 | 0.006 | 35 | 425 | |
| 5x0.75 | 9.3 | 26.00 | 0.011 | 10 | 103 | |
| 5x1.0 | 9.8 | 19.50 | 0.01 | 12 | 119 | |
| 5x1.5 | 11.6 | 13.30 | 0.01 | 13 | 172 | |
| 5x2.5 | 13.9 | 7.98 | 0.009 | 22 | 257 | |
| 5x4 | 16.5 | 4.95 | 0.007 | 27 | 386 | |
| 5x6 | 17.3 | 3.30 | 0.006 | 35 | 518 |
