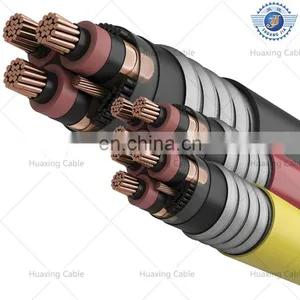

Help CenterXLPE Insulated Interlocked Aluminum Alloy Armor Type MC Power Cable
Related Products
-
Low Price Electric Cable Wire,Electrical Wire TypesUS$ 1.5 - 5.5MOQ: 2000 Meters -
Low Price Electric Cable Wire,Electrical Wire TypesUS$ 1.5 - 5.5MOQ: 2000 Meters
-
ZR YJV CableUS$ 0.1 - 3.2MOQ: 1 Meter
-
ZR YJV CableUS$ 0.1 - 3.2MOQ: 1 Meter
-
AAAC Cable (All Aluminum Alloy Cable)US$ 0.1 - 3MOQ: 1 Meter
High quality 0.6/1 KV PVC/XLPE Insulated Power Cable
Conductor:
Solid or stranded Aluminu
-Insulation:
Cross-linked polyethylene( XLPE or PVC)
-Circuit Identication:
The insulation shall be red, black
-Filler:
Polypropylene lament with lapped binding tape
-Inner Sheath:
Polyvinyl chloride (Black)
-Armor:
Galvanized steel wire/steel tape/Unarmored/Aluminum wire
-Core-covering:
Binding tape
-Outer Sheath
Polyvinyl chloride (Black)
-Application:
For use in ducts, trays and direct burial in ground. The cable is subject to immerse in water all the time.
-Standards / Testing Specications:
IEC 60502-1
Installation:
This cable can be installed in duct, tray or direct burial. It is recommended that the installation instructions indicated by the Local Electric Code, or any equivalent, be followed,so that the safeguarding of persons and the integrity of the product will not be affected by eciencies in the installation.
XLPE Insulation Power Cable
The Application of Power Cable
Power Cable is used to transmit power on power distribution circuit of AC 50HZ, rated voltage 35 KV or lower. It has not only excellent electrical performance, mechanical performance, heat-resistant & anti-aging performance, environment resistant character & chemical-corrosion resistant performance, but simple structure, light weight, without restriction by laying fall, and it also has high temperature (90) for long term
Instruction:
I. Executive Standard: GB12706.1.3 adopts international electrician committee IEC60502
II. Working Features:
1. Environment temperature should be no lower than 0 for laying, the cable fall without limitation
2. The min bending radius of cable is stipulated as follows: Single core: 20(d+D) 5% three cores: 15(d+D) 5% (D is actual diameter of cable; d is actual outer diameter of conductor).
3. Operation temperature of cable PVC sheath is no more than 90.
4. Max rated temperature of cable conductor is 90 , and no higher than 250 in time of short circuit (max. Lasting time is no longer than 5s).
We would like to introduce ourselves as an ISO9001/14001/18001 ,CCC ,UL certificated Manufacturer of different kinds of Cables ,our products have exported to more than 50 countries .
Henan Huaxing Cables and Wires Company .Ltd ,was found in 1984 and expanded in 2005, the workshop covers an area of 67,000m2, building area is about 28,000m2,,more than 260 employees , We serve under the skillful & experienced management which provide effective & efficient service to you.
We are also the Long term supplier of Ministry of Electric power of Yemen ,National Electric Energy Agency of Italy ,Electric power company of France, numbers of listed companies already established long business relationship with us .
Our hot products including Aluminum Rod ,All Aluminum Conductor( AAC),All Aluminum Alloy Conductor (AAAC),Aluminum Conductor Steel Reinforced(ASCR), Aerial Cable, Concentric Cable ,Power Cable ,PV Cable ,Electric Wire and so on;
