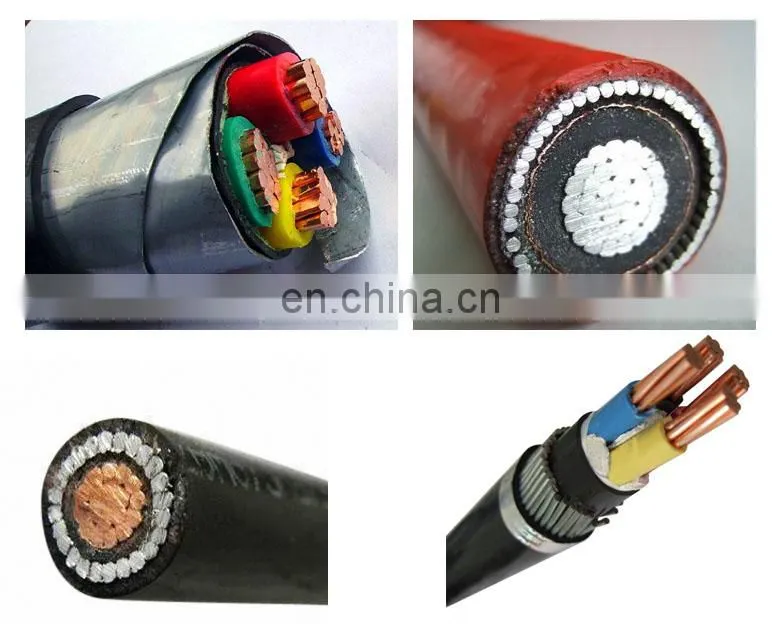

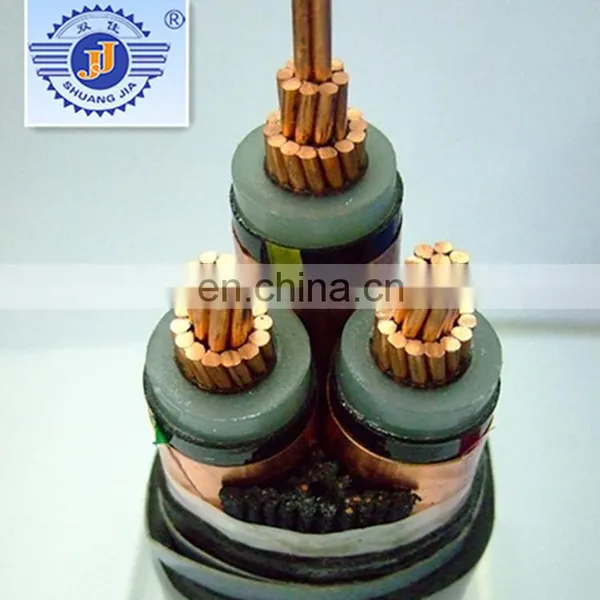

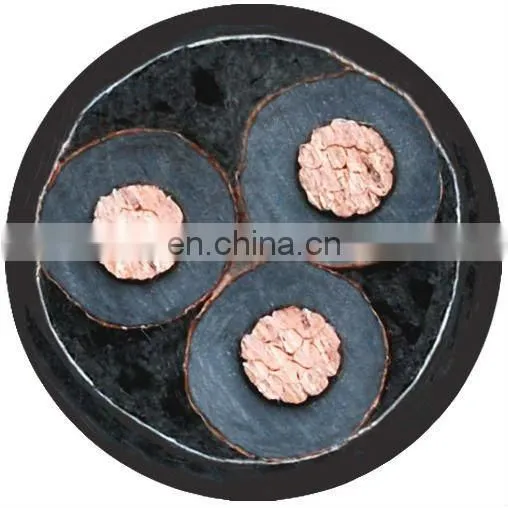

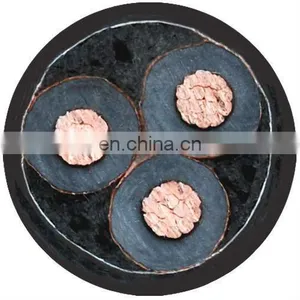

XLPE INSULATED POWER CABLE
COPPER(ALUMINMU)CONDUCTOR XLPE INSULATED PVC SHEATHED POWER CABLE RATED VOLTAGE UP TO 35KV
Brief introduction about XLPE Insulated Power cable
Cross-linked polyethylene insulated power cable do not only has excellent electric, mechanical proper-ties,but also has powerful resistance against chemical corrosion,heat resistance and environmental stress resistance. Its structure is simple,the long period operating temperature is +90°C. It is convenient to use and can be laid with no restriction of different level.
APPLICATION
XLPE insulated power cables has a number of advantages over paper insulated and PVC insulated cable.XLPE cable has high electric strength, mechanical strength,high-ageing resisting,environmental stress resisting anti-chemical corrossion,and it is simple construction, using convenient and higher operating of long term temperature. It can be laid with no drop restriction.
Various of flame-retardant and non-flame retardant XLPE cable can be manufactured with three technology(peroxide,silance and irradiation crosslinking). The flame-retardant cable covers all kinds of low-smoke low-halogen,low-smoke halogen free,and non-smoke nonhalogenated and three slasses of A,B,C.
We can produce the cables as per GN, IEC,BS,VDE, AS/NZS,ICEA,JIS.
TYPE |
|
VOLTAGE |
|||
|
No.of cores |
0.6/1kV |
6/6kV, 6/10kV |
8.7/15kV, 12/20kV, 18/30kV |
19/33kV, 26/35kV |
|
|
Mm² |
|||
COPPER/XLPE/PVC |
1 |
1.5~800 |
25~800 |
35~1200 |
50~1200 |
AL/XLPE/PVC |
|
2.5~1000 |
25~1000 |
35~1200 |
50~1200 |
COPPER/XLPE/SWA (STA,AWA)/PVC |
|
10~1000 |
25~1000 |
35~1200 |
50~1200 |
COPPER/XLPE/PVC |
3 |
1.5~400 |
25~400 |
35~400 |
50~400 |
AL/XLPE/PVC |
|
2.5~400 |
25~400 |
35~400 |
50~400 |
AOPPER/XLPE/AWA (STA)/PVC |
|
4~400 |
25~400 |
35~400 |
50~400 |
