Medium Voltage AC Power Cable
1.APPLICATION
Underground primary residential and commercial distribution circuits. May be used in wet or dry locations, installed in underground ducts or direct burial.

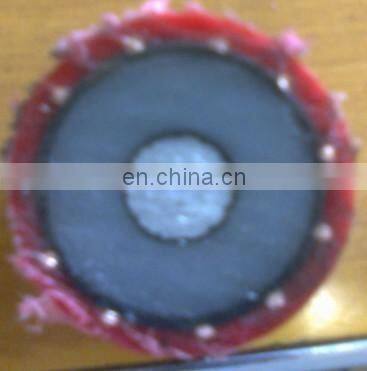

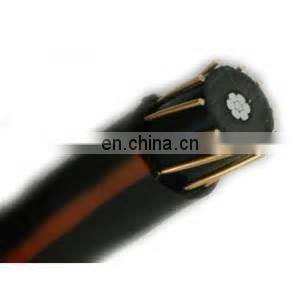

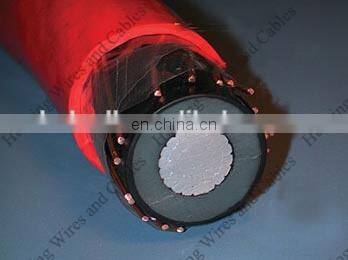

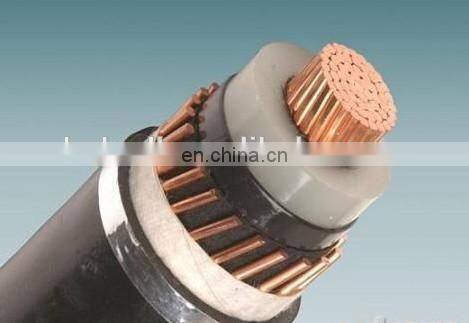

2.CONSTRUCTION
Conductor: Soft annealed uncoated copper Class B compressed or unilay compressed per ASTM B8 or hard drawn aluminum Class B compressed or unilay compressed stranding per ASTM B231.
Conductor Shield: Semi conducting cross-linked polyethylene (XLPE).
Insulation: Thermoset tree-retardant cross-linked polyethylene (TR-XLPE).
Insulation Shield: Semi conducting cross-linked polyethylene (XLPE).
Concentric Neutral: Soft annealed solid copper wires per ASTM B3, helically applied and
uniformly spaced. Full or 1/3 Neutral.
Binder Tape: A suitable polyester tape
Jacket: Overlying (sleeve) black polyvinyl chloride (PVC).
3.CHARACTERISTICS
Maximum operating voltage:
• 5 kV – 46 kV, 100 and 133% IL
Maximum conductor operation temperatures:
Wet and dry locations
For TR-XLPE
• Normal: 105 °C
• Emergency: 140 °C
• Short Circuit: 250 °C
For XLPE
• Normal: 90 °C
• Emergency: 130 °C
• Short Circuit: 250 °C
