Specifications
aluminum alloy power cable
1.High quality with safe standard and certificate.
2.Fast delivery
3.Factory directly sell

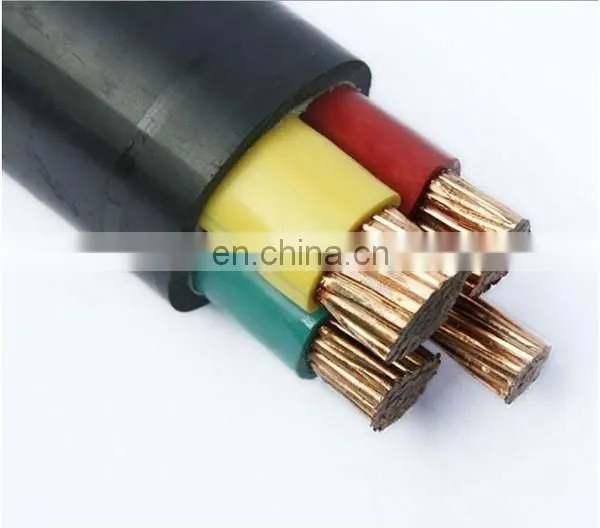

4 core alloy pvc power cable/aluminum alloy power cable/all aluminum alloy cable
1.1 Low Voltage cabel power cable
1.Uo/U:0.6/1KV
2.Standard applied: IEC60502, BS6346, GB/T12706
ing temperature: PVC insulated:70°C, can be 90°C and 110°C as per requirement
PVC insulated: 90°C, can be 110°C as per requirement
4.Conductor: Class 1/2 annealed bare copper solid or strands
5.Insulation:PVC/XLPE
6.Cores: 1C, 2C, 3C,4C,5C, 3C+1E,4C+1E,3C+2E
7.Cross section: 1.5 mm2~ 630 mm2
8.Armoure:No Armoure,STA( Remark: for single core the armore should be ATA )
SWA(Remark: for single core the armore should be AWA)
9.Sheath:PVC/XLPE
10.Color:Black or other as request
ECHNICAL SPECIFICATIONS
4X50mm2Cu/XLPE/PVC/SWA/PVC 600/1000 V LOW VOLTAGE CABLE
1- Manufacturer JK Cable
2- Type of Cable Cu/XLPE/PVC/SWA/PVC
3- Standard IEC 60502
4- Rated Voltage (U0 / U) (V) 600/1000
5- Number of cores and nominal cross-section (N0xmm²) 4x50
6- Material of Conductor Copper (Class 2)
7- Current Carrying Capacity
In air* (A) 209
Underground** (A) 177
8- DC Resistant of Conductor at 20°C (Ω/km) 0.387
9- Max. Continous conductor temperature (°C) 90
10- AC Resistance at Max. Operating Temperature (Ω/km) 0.493
11- Power Loss at 20°C with Max. Operating Current (kW/km) 105
12- Permesible Conductor Temperature at Short Circuit (°C) 250
13- Max. Short Circuit Current for 1 s (kA) 5.28
14- Material of Insulation XLPE
15- Wall Thickness of Insulation (mm) 1.0
16- Number and Diameter of Concentric Conductor (N0xmm) : -
17- Size of Steel Armoured (mm) 2.0
18- Material of Sheath PVC
19- Wall Thickness of Sheath (mm) 2.1
20- Aprox. Cable Diameter (mm) 32.9
21- Aprox. Unit Weight of Cables (kg/km) 3232
