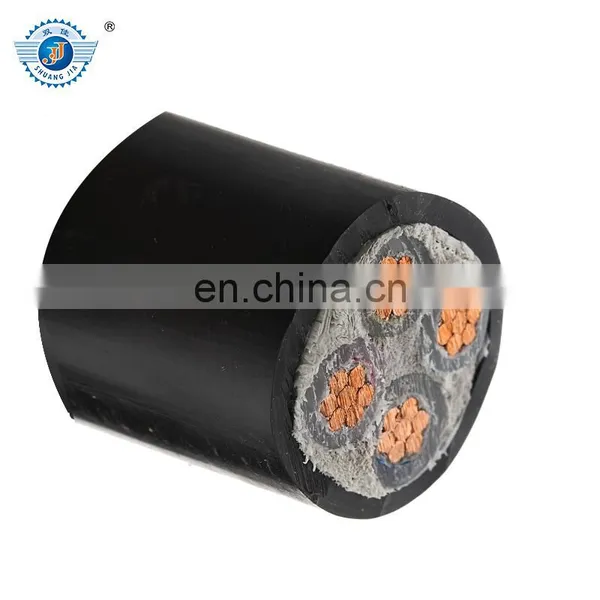

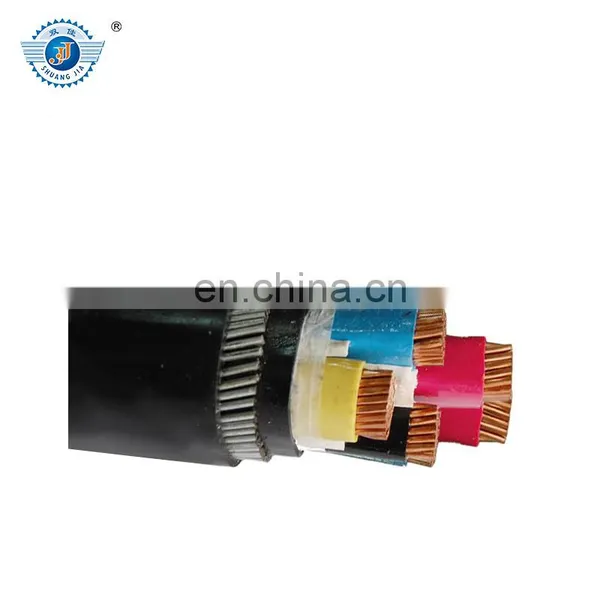

opper armoured electric cable with following Features:
a) this power cable with XLPE insulated and armored is used in rated voltage UO / U: 0.6 / 1kV b) Max. long term operating temperature of cable conductor:
1) XLPE insulation: 90 degree
2) PVC insulation: 70 degree
c) Environment temperature in laying the cable should not be lower than 250 degree
copper armoured electric cable with following name, type
AWG | section | conductor | insulation | wire OD | conductor resistance | |||
structure | diameter | nominal thick | min. thick | nominal | allowance | 20°C | ||
NO. | mm² | No./mm | mm | mm | mm | mm | mm | Ω/KM |
26 | 0.128 | 7/0.16 | 0.48 | 1.14 | 1.03 | 2.80 | ±0.10 | 148 |
24 | 0.205 | 7/0.20 | 0.60 | 1.14 | 1.03 | 2.90 | ±0.10 | 93 |
22 | 0.324 | 7/0.25 | 0.75 | 1.14 | 1.03 | 3.05 | ±0.10 | 55 |
20 | 0.519 | 7/0.31 | 0.93 | 1.14 | 1.03 | 3.25 | ±0.15 | 34.6 |
MOQ,Capacity&Payment method
For electric wire, aerial cable and power cable, the Minimum Order Quantity is 1000 meters each type. The capacity is 20 kilometers per day.
For electric conductor(AAC,ACSR,AAAC,AASC) for transmission line, the Minimum Order Quantity is 1 ton each type. The capacity is 50 tons per day.
Our payment term is 30% deposit in advance, 70% rest against copy of B/L; or 100% irrevocable L/C at sight
