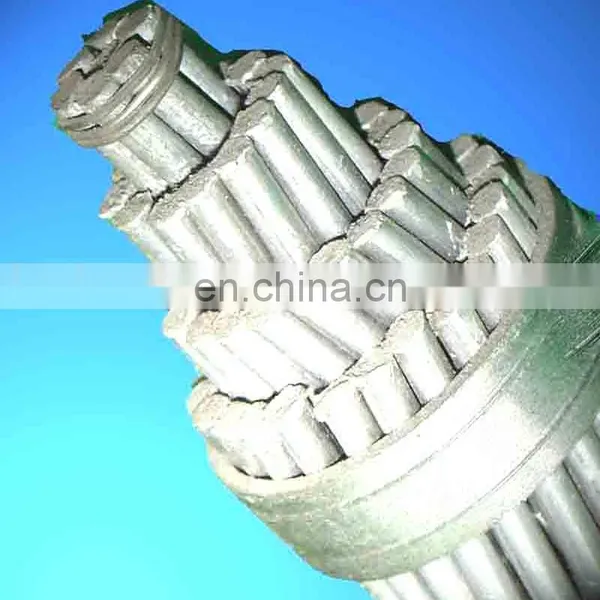

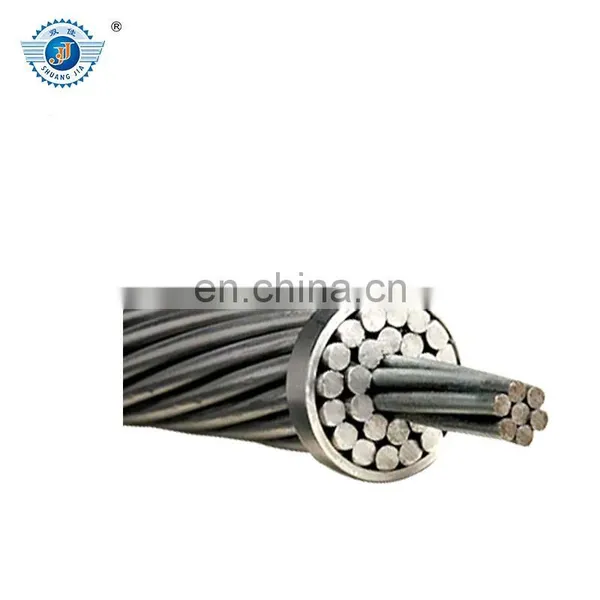

ACSR aluminium overhead conductor cable with grease
- 30 Ton / Tons per Month
- qingdao
- T/T Credit Card
You May Like
Product Details
| Brand Name | shuangjia | Place of Origin | Henan, China | |
| Model Number | ACSR | Type | Bare | |
| Application | Overhead | |||
| Conductor Material | Aluminum | Conductor Type | Stranded |
Product Description
ACSR aluminium overhead conductor cable With following features
ACSR conductor overhead cable is one of our main product, the applications, constructions and specifications are listing as follows:
Used as bare overhead transmission cable and as primary and secondary distribution cable. ACSR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.
ACSR aluminium overhead conductor cable with High Strength Aluminum Conductors Steel-reinforced(ASTM B232-90)
Code Name | Area | Size&Stranding of ACSR with equal diameter | No. and diameter | Overall diameter | Weight | Nominal breaking load | ||
Nominal | Actual | AWG or MCM | Al/St | |||||
| MCM | mm2 |
|
| mm | mm | kg/km | kN |
AKRON | 30.58 | 15.48 | 6 | 6/1 | 7x1.68 | 5.04 | 42.7 | 4.92 |
ALTON | 48.69 | 24.71 | 4 | 6/1 | 7x2.12 | 6.35 | 68 | 7.84 |
AMES | 77.47 | 39.22 | 2 | 6/1 | 7x2.67 | 8.02 | 108 | 12.45 |
AZUSA | 123.3 | 62.38 | 1/0 | 6/1 | 7x3.37 | 10.11 | 172 | 18.97 |
|
|
|
|
|
|
|
|
|
ANAHEIM | 155.4 | 78.65 | 2/0 | 6/1 | 7x3.78 | 11.35 | 217 | 23.93 |
MOQ, Capacity& Payment method
For electric wire, aerial cable and power cable, the Minimum Order Quantity is 1000 meters each type. The capacity is 20 kilometers per day.
For electric conductor(AAC,ACSR,AAAC,AASC) for transmission line, the Minimum Order Quantity is 1 ton each type. The capacity is 50 tons per day.
Our payment term is 30% deposit in advance, 70% rest against copy of B/L; or 100% irrevocable L/C at sight
