Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > Xlpe Insulation Abc Aerial Cable
US$ 0.5 - 5.9
MOQ: 1000 Meters
Key Specifications
Get Latest Price
Brand Name:
shuangjia
Place of Origin:
Henan, China
Model Number:
ABC
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Brand Name
shuangjia
Place of Origin
Henan, China
Model Number
ABC
Type
Low Voltage
Application
Overhead
Conductor Material
Aluminum
xlpe insulation abc aerial cable is With following features
1) The Max. working temperture of cable should not higher than 90 degree.
2) While installation the ambient tempeture should not be lower that -20 degree.
3) When core is in short circuit(Max. 5s), the tempeture should not exceed 250 degree.
Standard: IEC228, IEC209, IEC60502
Delievery requirement
1) According to the length, we can make agreement with customer requirements.
2) Cables delievery should be coild orderly. Cable tip should be slosely, wrapped and sealed. Exposed cable tip for AC testing should be long rnough to meet the needs. The coiled cable must be in the same moder and specification.
xlpe insulation abc aerial cable with ACSR messenger Core
Nominal csetion area(sqmm) | Conductor structure | Insulation material | Insulation Thickness(mm) | Approx. Overall Diameter(mm) | Approx. weight (kg/km) | Packing meters per drum | ||
Phase (Compacted AL) | Neutral (bare ACSR) | |||||||
(No./mm) | Aluminum (No./mm) | Steel (No./mm) | ||||||
1x16+16 | 7/1.72 | 6/1.72 | 1/1.72 | XLPE | 1.2 | 12.5 | 121.9 | 250-4000m |
1x25+25 | 7/2.15 | 6/2.15 | 1/2.15 | 1.2 | 14.9 | 182.2 | 250-4000 | |
1x35+35 | 7/2.54 | 6/2.54 | 1/2.54 | 1.4 | 17.5 | 254.7 | 250-3500m | |
1x70+70 | 19/2.15 | 12/2.15 | 7/2.15 | 1.4 | 23.6 | 382.2 | 250-3000m | |
1x95+95 | 19/2.54 | 12/2.54 | 7/2.54 | 1.6 | 27.6 | 528.2 | 250-3000m | |
2x16+16 | 7/1.72 | 6/1.72 | 1/1.72 | 1.2 | 14.2 | 187.6 | 250-4000m | |
2x25+25 | 7/2.15 | 6/2.15 | 1/2.15 | 1.2 | 16.7 | 273.8 | 250-3500m | |
2x35+35 | 7/2.54 | 6/2.54 | 1/2.54 | 1.4 | 19.7 | 386.9 | 250-3500m | |
2x70+70 | 19/2.15 | 12/2.15 | 7/2.15 | 1.4 | 26.1 | 617.2 | 250-3000m | |
2x95+95 | 19/2.54 | 12/2.54 | 7/2.54 | 1.6 | 30.5 | 850.9 | 250-3500m | |
MOQ, Capacity& Payment method
For electric wire, aerial cable and power cable, the Minimum Order Quantity is 1000 meters each type. The capacity is 20 kilometers per day.
For electric conductor(AAC,ACSR,AAAC,AASC) for transmission line, the Minimum Order Quantity is 1 ton each type. The capacity is 50 tons per day.
Our payment term is 30% deposit in advance, 70% rest against copy of B/L; or 100% irrevocable L/C at sight

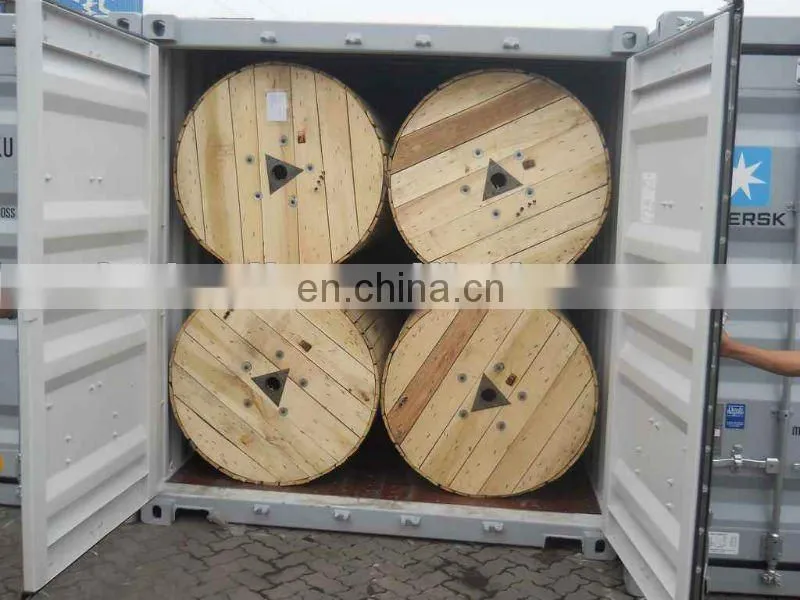

Packing Pictures:
